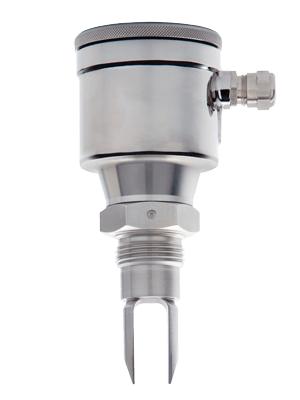

VSS Universal level switches, Vibraswitch-S

Klay Instruments

Klay Instruments

Sygnalizator wibracyjny KLAY VSS

All staineless steel construction

Many different types of process connections

Measuring range from -1 to 40 bar

  1. Features
  2. Specification
  3. Downloads
  • Robust tuning fork level switch. All stainless steel and suitable for all liquids. The sensor is being oscillated electronically and records the difference in resonance frequency for switching.

    Application

    • All liquid application

    Features

    • All stainless steel compact construction

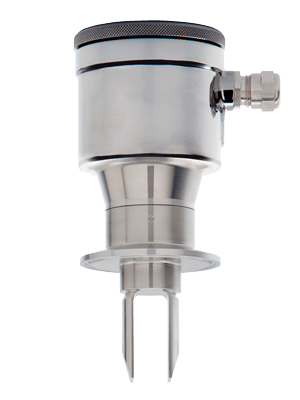

    • Many different types of process connections: threaded, flanged, sanitary
    • Measuring range from -1 to 40 bar
    • Output signal: PNP / NPN
    • Power supply: 12-40 VDC
    • Case protection IP65 (optional IP68 version on cable)

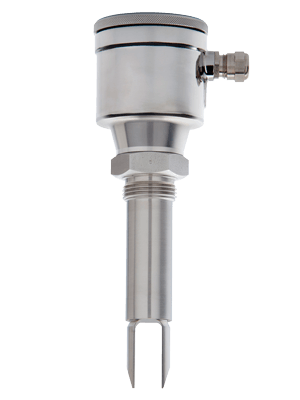

    • Insertion lenght from 47mm to 3 meters

    • Variable level
    • Output signal PNP / NPN
    • Process connection 1 NPT male, other
    • Sensor / wetted parts material 316/316L
    • Power supply 2 wire 24 VDC discreet loop
    • Electrical connection M12 connector
    • Housing stainless steel
    • Ingress protection rating IP67
  • `
    1. Klay VSS Manual

      685kb | ENG

    2. Klay VSS Datasheet

      585kb | ENG
