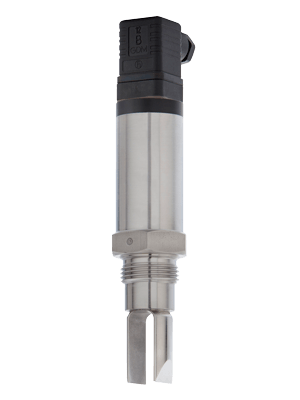

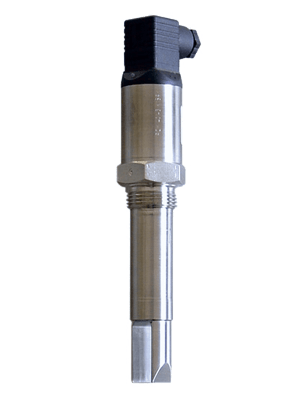

VSC Compact level switches, Vibraswitch-C

Klay Instruments

Klay Instruments

All staineless steel construction

Many different types of process connections

Measuring range from -1 to 40 bar

Robust tuning fork level switch for liquids. The sensor is being oscillated electronically and records the difference in resonance frequency for switching.

Application
All liquid application
Features
All stainless steel compact construction

Many different types of process connections: threaded, flanged, sanitary

Measuring range from -1 to 40 bar

Output signal: PNP / NPN

Power supply: 12-40 VDC

Case protection IP65 (optional IP68 version on cable)

Insertion lenght from 47mm to 3 meters
- Variable level
- Output signal PNP / NPN
- Process connection 1 BSPP male, other
- Sensor / wetted parts material 316/316L
- Power supply 2 wire 24 VDC discreet loop
- Electrical connection DIN connector, leadwires
- Ingress protection rating IP65, IP68
`
1. Klay VSC Manual

  513kb | ENG
2. Klay VSC Datasheet

  635kb | ENG
