Pulsar® R86 26 GHz non-contact radar

Magnetrol International

Magnetrol International

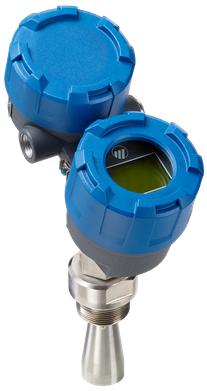

Radar bezkontaktowy 26 GHz SIL 2 Pulsar R86 Magnetrol

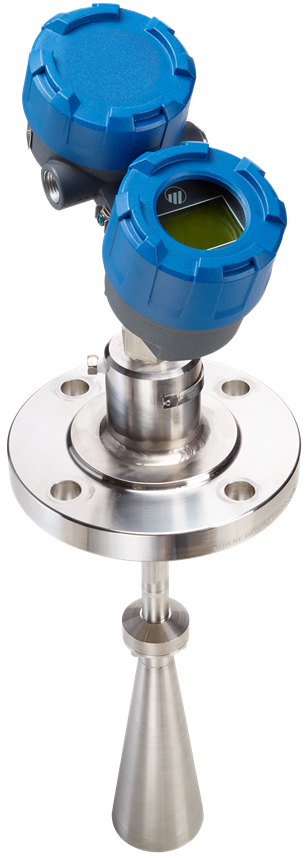

  • Pulsar® R86 with horn antenna extension

Pulsar® R86 is the most advanced product in Magnetrol non contact radar portfolio.

Two wire loop powered finds its use in level measurement applications where high temperature and pressure exist.

Radar signal transmission at 26 GHz frequency allows to utilize small horn antennas so radar can be mounted in vessel diameter nozzles starting from 1-1/2”.

Approvals & certificates

  • CE CE
  • NACE NACE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • FM FM
  • IECEx IECEx
  • SIL 2 SIL 2
  • HART® HART®
  • FF FF
  1. Features
  2. Specification
  3. Downloads
  • Pulsar® R86 is the most advanced non-contact radar in Magnetrol offer.

    Based on the same electronics platform used earlier in Eclipse® 706 and Pulsar® R96, non-contact radar Pulsar® R86 provides even more advanced diagnostics functions making easy proper setup and troubleshooting during running process.

    Available wizard simplifies advanced echo rejection function setup through “step by step” process which is helpful especially in applications where strong mixing occurs because of mixing blades.

    Advantages

    • Measuring range: up to 40 m
    • Medium temperature: -70 to 400 °C
    • Maximum pressure: 160 bar
    • Flow measurement function in open channels
    • 26 GHz operating frequency allows to use 1-1/2” diameter horn antennas while keeping the resolution and accuracy on the highest level
    • Electronics housing can be dismantled without depressurizing the vessel
    • Graphic local LCD with 4 programming buttons
    • Echo curve display on LCD in real-time
    • Expanded Event History shows up to 20 events including diagnostic and configuration data
    • Circular polarization of radar signal eliminates the need for antenna adjustment at the field
    • Setup and echo rejection wizards simplifies all configuration process of the device
    • Advanced function of false echo rejection
    • Antenna extensions: up to 1,8 m





    • Variable level, flow
    • Output signal 4..20 mA analogue
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™
    • Accuracy 0.1%
    • Repeatablity 0.05%
    • ATEX Ex i, Ex d, Ex n
    • Local display yes
    • Process connection 1-1/2 BSPP male, 1-1/2 NPT male, 2 NPT male, flange, other
    • Sensor / wetted parts material 316/316L, Hastelloy, PTFE, PP
    • Seals Viton® / FKM / FPM, Kalrez®, Aegis PF 128 / Simriz® SZ 485
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing epoxy coated aluminum, stainless steel
    • Ingress protection rating IP67
  • `
