5TDI 22CF 041 Float switches

Bachofen

Bachofen

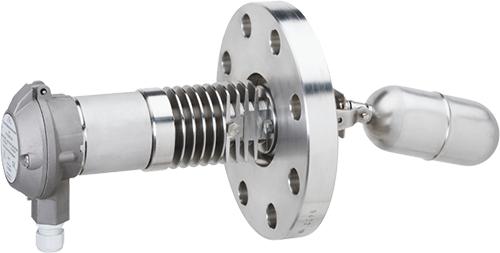

Pływakowe sygnalizatory poziomu Trimod Besta 5TDI 22CF 041

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

Float switches with stainless steel housing for cryogenic applications. Minimal working temperature is -196°C. Commonly used in terminals and LNG oil tankers.

Approvals & certificates

  • PED PED
  • CE CE
  • EAC Ex EAC Ex
  • SIL 1 SIL 1
  • BV BV
  • LR LR
  • ABS ABS
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads
  • What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • Side mounted
    • Proximity switch acc. to NAMUR
    • Temperature: from -196°C to +270°C
    • Density of liquid: form 0,7 kg/l
    • Housing material: stainless steel
    • Enclosure: IP66/67
    • Flange connections according to DIN 2501 / EN1092-1 or ANSI

    Options:

    • ATEX Ex ia or Ex d approval
    • IP67 or IP68 housing
    • Nominal pressure: to PN320 (dependent on flange class and temperature)
    • PED certificate
    • Variable level
    • Output signal NAMUR switch
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing stainless steel
    • Ingress protection rating IP66, IP67, IP68
  • `
    1. Bachofen TrimodBesta Series PED Certificate

      1.2MB | ENG

    2. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    3. Bachofen TrimodBesta Series SIL Certificate

      126kb | ENG

    4. Bachofen TrimodBesta Series Exida FMEDA SIL Report

      264kb | ENG

    5. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    6. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    7. Bachofen TrimodBesta LR approval

      814kb | ENG

    8. Bachofen TrimodBesta RMRS approval

      1.2MB | ENG

    9. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
