Eclipse® 706 High performance guided wave radar

Magnetrol International

Magnetrol International

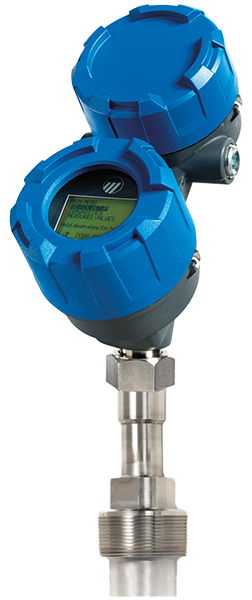

Zaawansowany radar falowodowy Eclipse 706 Magnetrol

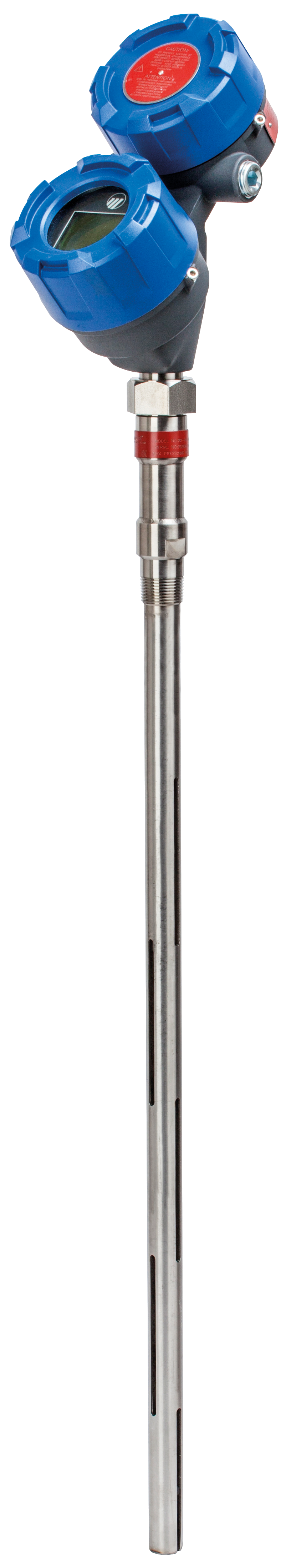

  • Eclipse® 706 with coaxial probe

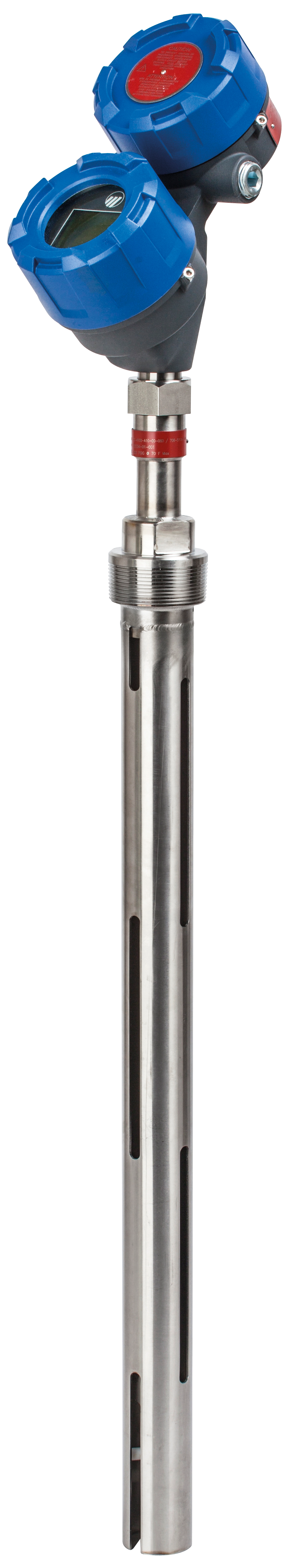

  • Eclipse® 706 with enlarged coaxial probe

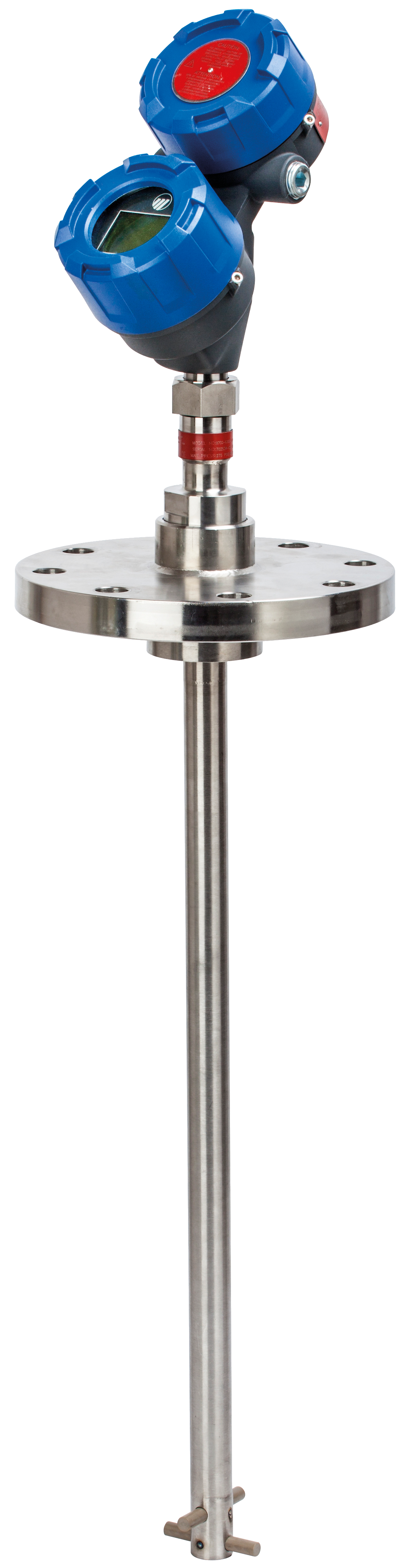

  • Eclipse® 706 with single rod probe

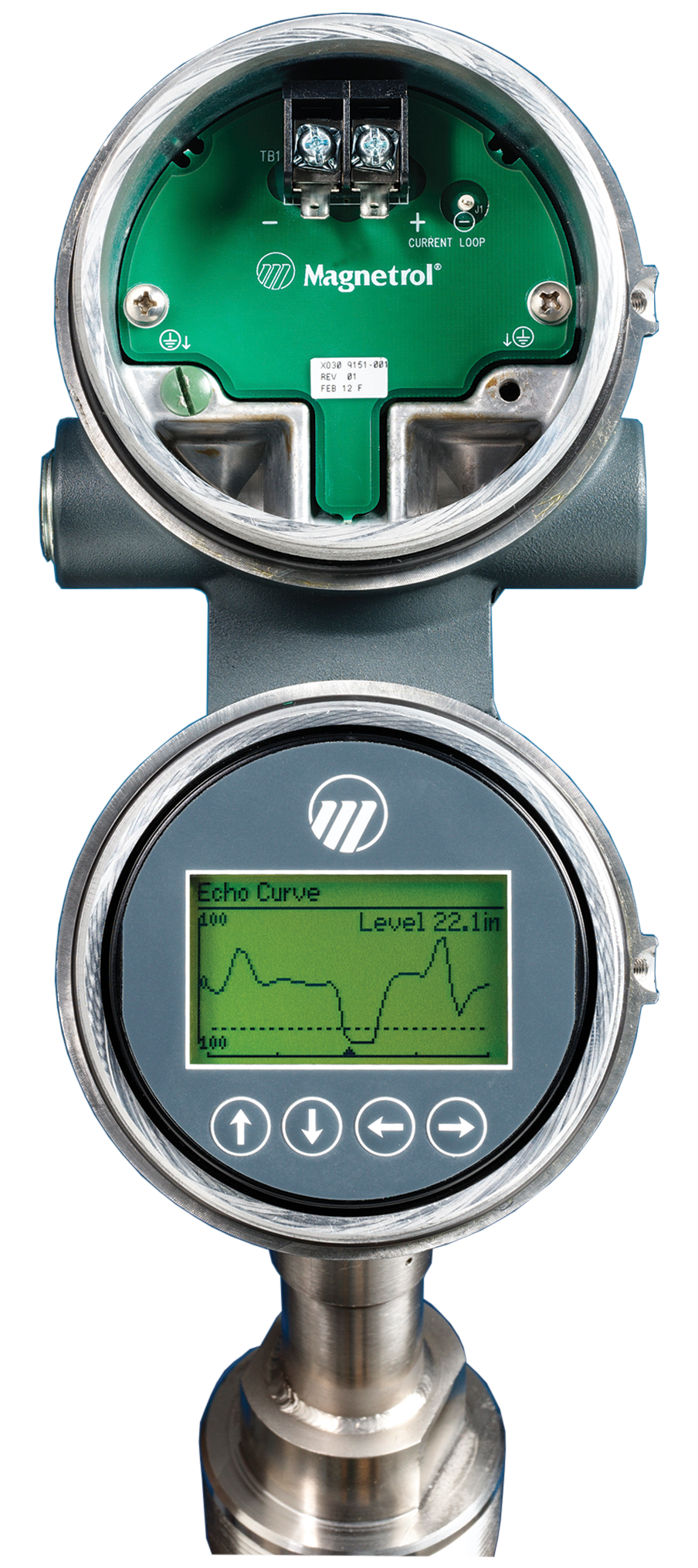

  • Dual compartment transmitter housing Eclipse® 706

New generation high performance guided wave radar with increased signal strength.

An extensive line of dedicated coaxial, caged coaxial, single and twin rod probes delivers accurate and reliable level control.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • ATEX Ex tD ATEX Ex tD
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • INMETRO INMETRO
  • SIL 3 SIL 3
  • HART® HART®
  • FF FF
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Applications
  4. Downloads
  • Eclipse® 706 is an enhanced version of 705 model which characterizes with increased signal strength in order to meet challenging high pressure and high temperature applications.

    An extensive line of dedicated coaxial, caged coaxial, single and twin rod probes delivers accurate and reliable level control.

    Ergonomic and innovative dual compartment enclosure (separate compartment for electronics and wiring) enables easy wiring, configuration and data display.

    Advantages

    • Measuring ranges: up to 30 m
    • Media temperature: -196 to 450°C
    • Maximum pressure: up to 430 bar
    • No moving parts
    • Real Level”, measurement not affected by media variables eg. dielectrics, pressure, density, pH, viscosity
    • Configuration "at desk"
    • 2-wire loop powered intrinsically safe level transmitter.
    • 30 - point vessel linearization
    • 360° rotatable housing can be dismantled without depressurizing the vessel via
    • Local graphic LCD with 4 programming buttons
    • Echo curve display on LCD in real-time
    • Integral or remote electronics
    • Probes for interface and saturated steam measurement
    • Available different construction materials and process connections
    • Level measurement up to process connection
    • SIL 3 certificate


    • Variable level, interface level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™, Modbus®
    • Accuracy 0.1%, 0.5%
    • Repeatablity 2.5 mm
    • ATEX Ex i, Ex d, Ex n, Ex tD
    • Local display yes
    • Process connection 1 BSPP male, 3/4 NPT male, 1 NPT male, 2 NPT male, other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, PTFE
    • Seals Viton® / FKM / FPM, Kalrez®, Inconel®, PEEK, glass ceramic alloy
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Eclipse 706 Certificate ATEX Ex d Ex tb

      726kb | ENG

    2. Magnetrol Eclipse 706 Certificate ATEX Ex i Ex n

      232kb | ENG

    3. Magnetrol Eclipse 706 Certificate IECEx Ex d Ex tb

      214kb | ENG

    4. Magnetrol Eclipse 706 Certificate IECEx Ex i Ex n

      263kb | ENG

    5. Magnterol Eclipse 706 Datasheet

      4MB | ENG

    6. Magnetrol Eclipse 706 SIL safety manual

      556kb | ENG

    7. Magnetrol Eclipse 706 SIL certified safety manual

      3MB | ENG

    8. Magnetrol Eclipse 706 User manual Foundation Fieldbus

      2.2MB | ENG

    9. Magnetrol Eclipse 706 User manual HART

      8MB | ENG

    10. Magnetrol Eclipse 706 User manual Modbus

      4MB | ENG

    11. Magnetrol Eclipse 706 Certificate SIL 3

      199kb | ENG

    12. Magnetrol Eclipse 706 Exida SIL 3 Report

      471kb | ENG

    13. Magnetrol Eclipse 706 Instrukcja HART

      5.1MB | POL

    14. Magnetrol Eclipse 706 Manual HART DE

      4.6MB DE

    15. Magnetrol Eclipse 706 Datasheet DE

      2.1MB DE

    16. Magnetrol API 2350 Recommendations DE

      1.1MB DE

    17. Magnetrol API 2350 Recommendations EN

      6.2MB | ENG

    18. Magnetrol Radar solutions

      1019kb | ENG

    19. Magnetrol Product Line Quick Reference

      4.9MB | ENG

    20. Magnetrol Eclipse 706/700 Application Questionnaire

      355kb | ENG

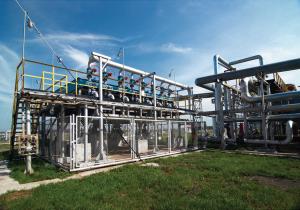

    1. Molten sulphur accurate level measurement
