Pulsar® R96 High performance non-contact radar

Magnetrol International

Magnetrol International

Radar bezkontaktowy Pulsar R96 Magnetrol

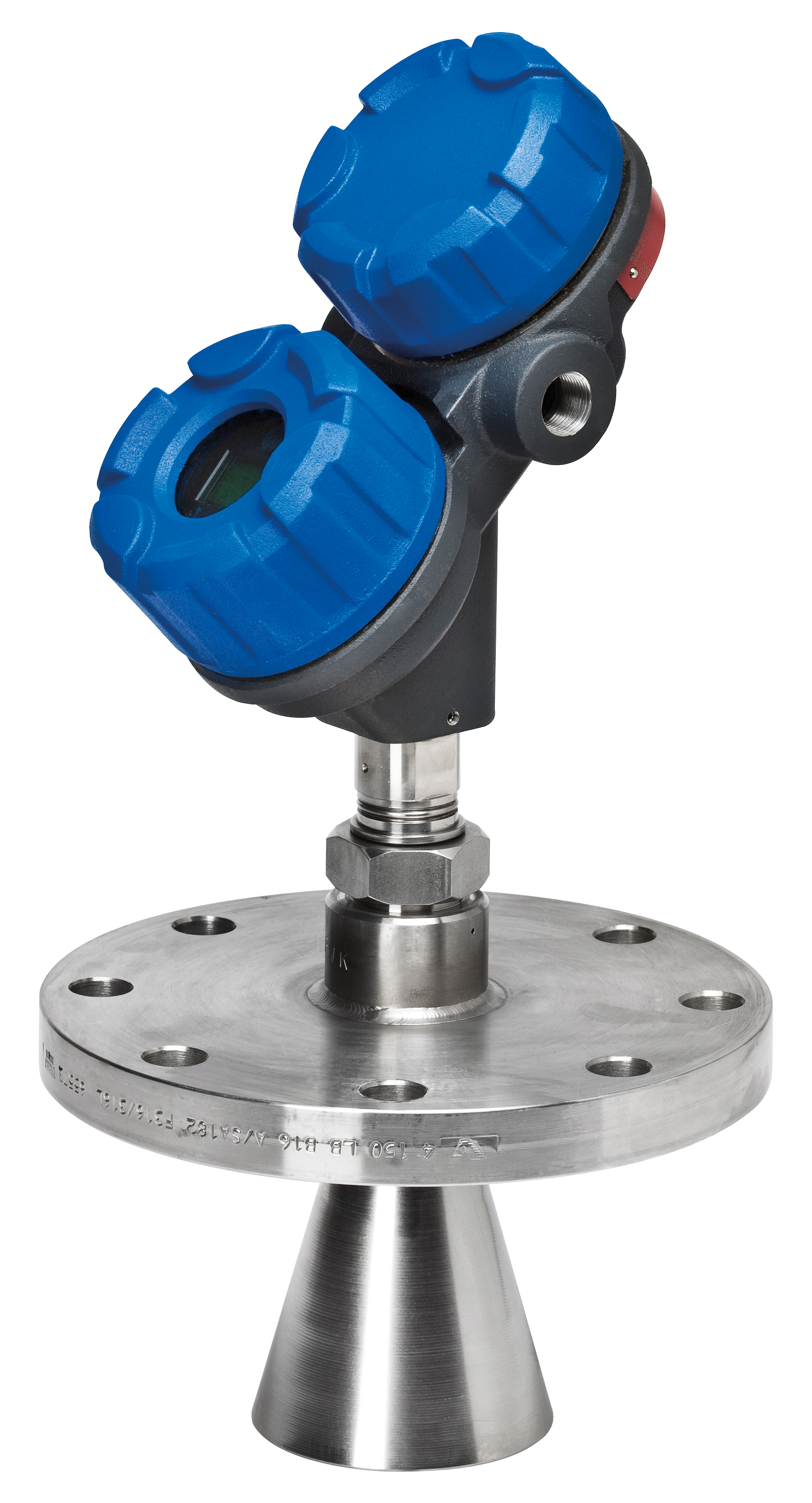

  • Pulsar R96 with horn antenna

High performance non-contact radar for continuous measurement of liquid level, volume or mass.

Pulsar® R96 non-contact radar is an advanced version of loop powered radar R05.

Besides low power consumption, fast response time, easy usage R96 is characterized also by advanced diagnostics and higher level measurement up to 40 m.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • ATEX Ex tD ATEX Ex tD
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • HART® HART®
  • FF FF
  1. Features
  2. Specification
  3. Downloads
  • Pulsar® R96 non-contact radar is an advanced version of loop powered radar R05.

    Besides low power consumption, fast response time, easy usage R96 is characterized also by advanced diagnostics and higher level measurement up to 40 m .

    Pulsar® R96 finds its use in level measurement at height and width storage tanks as well as in applications where corrosive and sticky media are present.

    Advantages

    • Measuring range: up to 40 m
    • Media temperature: -50 to 200 °C
    • Maximum pressure: 51,7 bar
    • 6 GHz operating frequency offers superior performance in the tougher applications of turbulence, foam, and heavy vapors
    • 2-wire loop powered intrinsically safe level transmitter
    • 360° rotatable housing can be dismantled without depressurising the vessel
    • Graphic local LCD with 4 programming buttons
    • Echo curve display on LCD in real-time

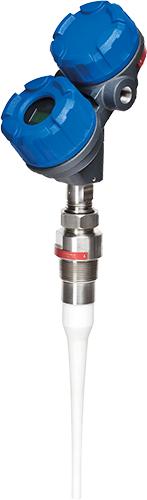

    • Available horn: 3", 4", 6" and dielectric rod antenna
    • False echo rejection
    • Fast response for applications with rapid level change
    • Advanced diagnostics

    • Variable level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™
    • Accuracy 0.1%
    • Repeatablity 0.05%
    • ATEX Ex i, Ex d, Ex n, Ex tD
    • Local display yes
    • Process connection 1-1/2 BSPP male, 1-1/2 NPT male, Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, PTFE, Halar®, PP
    • Seals Viton® / FKM / FPM, Kalrez®, Aegis PF 128 / Simriz® SZ 485, EPDM
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Pulsar R96 Certificate ATEX Ex d Ex tb

      183kb | ENG

    2. Magnetrol Pulsar R96 Certificate ATEX Ex n

      166kb | ENG

    3. Magnetrol Pulsar R96 Certificate IECEx Ex i Ex d Ex tb Ex n

      75kb | ENG

    4. Magnetrol Pulsar R96 Datasheet

      1.9MB | ENG

    5. Magnetrol Pulsar R96 User manual SIL

      461kb | ENG

    6. Magnetrol Pulsar R96 User manual HART

      6.8MB | ENG

    7. Magnetrol Pulsar R96 User manual Foundation Fieldbus

      2.1MB | ENG

    8. Magnetrol Pulsar R96 Manual HART DE

      2.2MB DE

    9. Magnetrol Pulsar R96 Datasheet DE

      1.2MB DE

    10. Magnetrol Radar solutions

      1019kb | ENG

    11. Magnetrol Product Line Quick Reference

      4.9MB | ENG
