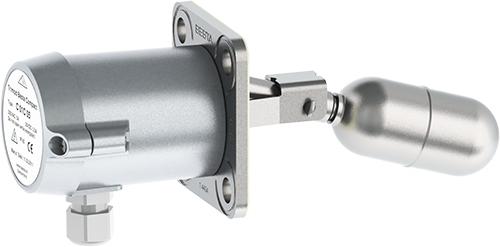

C 01C 05 Compact float switches

Bachofen

Bachofen

Kompaktowy, pływakowy sygnalizator poziomu Trimod Besta C 01C 05

Compact float switches for for high or low alarm duties.

What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

Approvals & certificates

  • CE CE
  • SIL 1 SIL 1
  • BV BV
  • DNV DNV
  • LR LR
  • ABS ABS
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads
  • Features:

    • Side mounted
    • Compact design
    • SPDT microswitch
    • Nominal pressure: PN 10 according to EN/DIN
    • Temperature: max +150°C
    • Density of liquid: from 0,7 kg/l
    • Housing material: sea water resistant die cast aluminium
    • Enclosure: IP65

    Options:

    • IP67 housing

    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX none
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing aluminum
    • Ingress protection rating IP65, IP67
  • `
    1. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    2. Bachofen TrimodBesta C 01C 05 Datasheet

      853kb | ENG

    3. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
