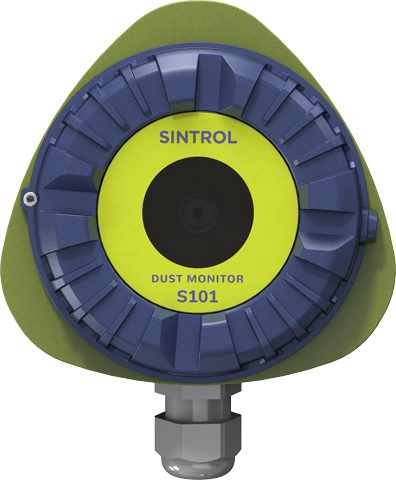

S101 Dust monitoring switches

Sintrol

Series S101 is an advanced filter leak detector. This dust monitor can be used to monitor the operation of a baghouse and alarm the operator when dust levels increase. All parameters and settings are user selectable to best suit custom application needs. This device is fully compatible with Sintrol DustTool software.

Auto setup function makes commissioning easy and quick and two independent alarm signals enable easy connectivity.

The S101 is a basic cost-effective dust monitor to give indication of changes in dust levels from gas flow. This robust and sensitive monitor can be used in duct sizes with a diameter of less than 1 meter. The S101 is a real-time continuous dust monitor and will monitor for leaking or broken filters. The key features of the S101 are onboard red/yellow/green light to indicate dust levels, 2 solid state alarm relays and MODBUS RTU communication. Auto Setup function makes commissioning easy and quick and the two alarm signals enable easy connectivity.

Features
- Sensitivity from 0.01 mg/m³
- Automatic calibration
- Adjustable setpoints and other settings
- Particles size from 0.3 µm
- Two independent alarm outputs
- RF models available
- green/yellow/red LED status indication
- maximum temperature: 250°C
- maximum pressure: 2 bar
- probe length: 250 mm
- 1/2 NPT male thread process connection
- Variable dust
- Output signal VDC switch
- Digital communication RS-485
- Process connection 1/2 NPT male
- Sensor / wetted parts material 316/316L, PEEK
- Power supply external 24 VDC
- Ingress protection rating IP66
`
