G1 Microwave Microwave switches

Hawk

Hawk

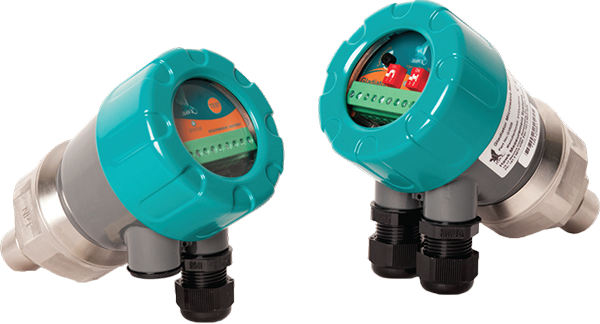

Mikrofalowy sygnalizator poziomu G1 Hawk

Microwave switches suitable for applications where non-contact level signalization is required.

The Gladiator Microwave Switch can be used for blockage detection, barrier detection, machine detection and point level measurement, and detection of objects or material between two points.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • IECEx IECEx
  1. Features
  2. Specification
  3. Downloads
  • Principle of operation:

    A high power circular polarized Microwave pulse is emitted from the Sending unit to the Receiving unit in a transmission chain of approximately 100 pulses per second. If the path between the Sender and Receiver is blocked by any object or material which absorbs or reflects microwave energy the Receiving unit will no longer detect the complete transmission chain and indicate via Relay for automatic indication and process control requirements.

    Features:

    • state of the art circular polarisation
    • simple sensitivity adjustment and calibration
    • theoretical range up to 300m (984ft)
    • simple ‘1-minute’ setup application presets
    • relay outputs: Integral (1 + failsafe)
    • remote test function
    • adjustable ON and OFF delays (0-20 sec)
    • remote 3G Hawklink connection option
    • bright visual status indication on sensors
    • independent housing alignment after mounting sensor


    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX Ex i
    • Process connection 1 BSPP male, 1 NPT male
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, steel
    • Ingress protection rating IP66, IP67
  • `
    1. Hawk Short form catalogue

      12MB | ENG

    2. Hawk G1 Microwave CE Declaration

      169kb | ENG

    3. Hawk G1 Microwave Datasheet

      4.6MB | ENG

    4. Hawk G1 Microwave Manual

      10.1MB | ENG
