CS3100 Gladiator Conductivity Switch

Hawk

Hawk

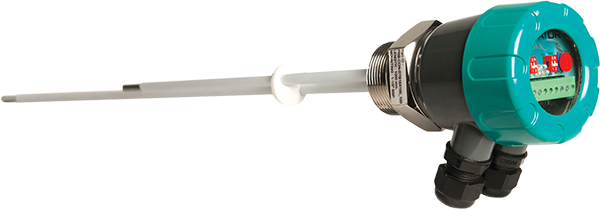

Przewodnościowy sygnalizator poziomu Gladiator Hawk

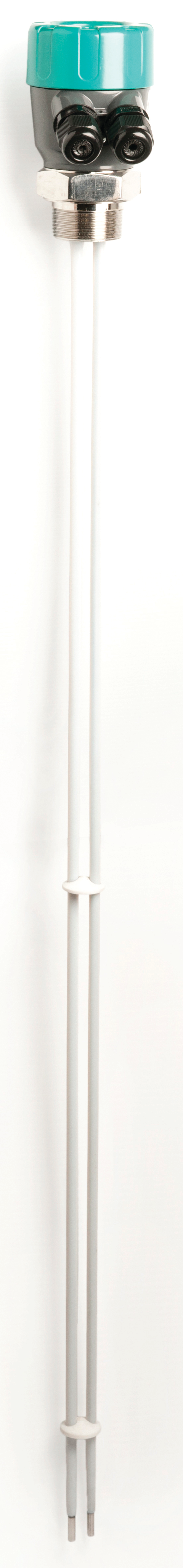

  • Gladiator conductivity switch - long version

Level switch with special type of electrode.
First type is for tank with metallic wall and second type is for non-metallic wall tank.
For second type, additional is mount inside of the tank a reference electrode.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • IECEx IECEx
  • HART® HART®
  • Profibus Profibus
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads
  • Principle of operation:

    A low voltage AC signal is applied between the probe electrode and the tank wall or reference electrode in the case of a non-metallic tank. When the liquid comes into contact with the electrode tip, a conductive path is established between the sense electrode and the metallic tank wall/reference electrode. Current flow due to the conductive path is sensed, amplified and used to switch a relay for indication or control purposes.

    Primary Areas of Application:

    • Brewing
    • Chemical
    • Dairy
    • Edible Oil
    • Fertilizer
    • Food & Beverage
    • Glass
    • Mining & Metals
    • Oil & Gas
    • Packaging
    • Paint
    • Paper
    • Pharmaceutical
    • Power Generation
    • Refining
    • Semiconductor
    • Sugar
    • Textile
    • Water & Wastewater

    • Variable level
    • Output signal PNP / NPN
    • Digital communication HART®, Profibus, Modbus®
    • ATEX Ex i
    • Process connection 1 BSPP male, 1-1/2 BSPP male, 1 NPT male, 1-1/2 NPT male, other
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, epoxy coated aluminum
    • Ingress protection rating IP65, IP67
  • `
    1. Hawk Short form catalogue

      12MB | ENG

    2. Hawk Gladiator conductivity smart switch Datasheet

      2.9MB | ENG

    3. Hawk Gladiator conductivity switch manual

      6.1MB | ENG

    4. Hawk Gladiator conductivity switch CE

      169kb | ENG

Similar products

  1. Thermal dispersion switches

    Thermatel® TD1/TD2 Thermal dispersion switches

    Thermal dispersion switches of gas and liquid flow, liquid level and interface

    details
  2. Float switches

    A 01 041 Float switches

    Side mounted switches for high or low alarm duties

    details
  3. Admittance level switches

    AS2100 Gladiator Admittance level switches

    Level switches for conductive media, designed to operate in tough industrial environments

    details
  4. Vibrating level switches

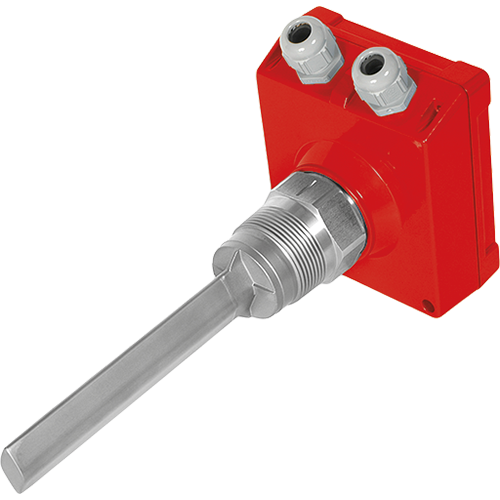

    172 Vibrating level switches
