I 01 041 Float switches

Bachofen

Bachofen

Pływakowy sygnalizator poziomu Trimod Besta I 01 041

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

The following model is eqiped with the proximity siwtch acc. to NAMUR.

Approvals & certificates

  • CE CE
  • EAC Ex EAC Ex
  • SIL 1 SIL 1
  • BV BV
  • LR LR
  • ABS ABS
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads

  • What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • Side mounted
    • Proximity switch acc. to NAMUR
    • Nominal pressure: PN 25 according to EN/DIN
    • Temperature: max +150°C
    • Density of liquid: from 0,7 kg/l
    • Housing material: sea water resistant die cast aluminium
    • Enclosure: IP65

    Options:

    • ATEX Ex ia or Ex d approval
    • IP67 or IP68 housing

    • Variable level
    • Output signal NAMUR switch
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP67, IP68
  • `

    1. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    2. Bachofen TrimodBesta Series SIL Certificate

      126kb | ENG

    3. Bachofen TrimodBesta Series Exida FMEDA SIL Report

      264kb | ENG

    4. Bachofen TrimodBesta I Series Installation manual

      1.2MB | ENG

    5. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    6. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    7. Bachofen TrimodBesta LR approval

      814kb | ENG

    8. Bachofen TrimodBesta RMRS approval

      1.2MB | ENG

    9. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL

Similar products

  1. Float switches

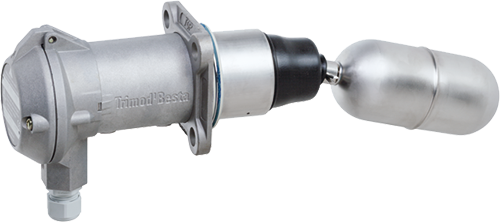

    A 01 051 Float switches
