MELSEC QS SIL 3 Safety Controller

Mitsubishi Electric

Mitsubishi Electric

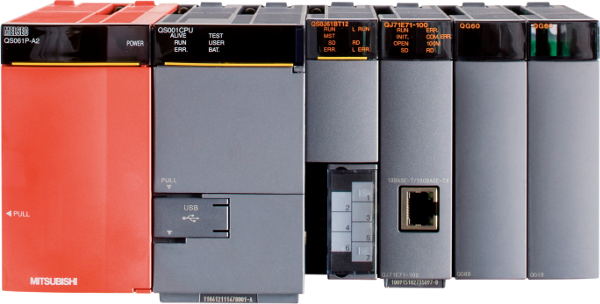

Sterowniki bezpieczeństwa SIL 3 MELSEC QS Mitsubishi

The safety programmable controller is an International Safety Standard certified PLC for safety control. When connected with a safety device, such as an emergency stop switch or light curtain, this programmable controller executes safety control by turning the safety output OFF with a user-created sequence program.

Machine control of e.g. conveyor is executed with a general-purpose programmable controller in the conventional manner. The difference between the safety programmable controller and general-purpose programmable controller lies in that if the safety programmable controller itself fails, it performs a self-diagnosis to detect the failure and turn the safety output OFF forcibly.
This prevents the safety functions from being disabled because of a fault.

Approvals & certificates

  • CE CE
  • cUL cUL
  • SIL 3 SIL 3
  • BV BV
  • DNV DNV
  • HART® HART®
  • Profibus Profibus
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads
  • Based on a principle of separating machines from operators, safety protection measures were implemented on the basis of risk assessment and safety control such as implementation of an emergency stop. The advancement of technology realizes operations such as slowing down the operation speed when an operator approaches a machine and continuous operation without stopping when an operator is away from a machine. The concept of safety has shifted to a level where operators and machines can work in collaboration ensuring increased safety. Mitsubishi Electric offers a total safety solution which realizes "collaboration" of operators and machines with a large variety of products.

    The safety programmable controller is compliant with international safety standards, EN ISO 13849-1 Category 4/PL e and IEC 61508 SIL 3. It is ideal for medium to large-scale safety control systems. Ladder programs and certified safety function blocks realize flexible programming.

    The MELSEC-QS Series solves the complicated wiring and time-consuming troubleshooting issues associated with previous safety relay systems.

    Advantages

    • Complies with international safety standards The MELSEC safety programmable controller and safety controller are international safety standard certified controllers for safety control. Compliance with international safety standards assures safety operation of electronic devices and programmable controllers, realizing safety applications easily.
    • Safety control execution When connected with safety devices such as an emergency stop switch or light curtain, the safety programmable controller executes safety control by turning safety output off to stop power to a source of potential hazard, such as a robot. Safety control program enables emergency stop operation safely and flexibly.
    • Equipped with fault monitoring function and self-diagnosis function fulfilling safety standard requirements By periodically executing fault monitoring and self-diagnosis, power is safely shut off in the event of failure in the safety programmable controller or safety controller.

    Technical data

    • I/O capacity: 6144 (max. 1008 Safety I/O)
    • Available I/O: 3 types (8 dual in/4 dual out; 8 dual in; 4 dual out)
    • Program memory capacity: 14k Steps
    • Basic instruction execution time: 0.10 μs
    • Network connectivity: CC-Link Safety, CC-Link IE, MELSECNET/H, Ethernet
    • Safety certifications: IEC 61508 SIL 3, ISO13849-1 PL e (EN 954 Category 4)
  • `
    1. Mitsubishi MELSEC QS Brochure

      314kb | ENG
