PV 01 04 Float switches

Bachofen

Bachofen

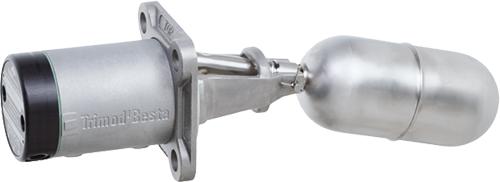

Plywakowy sygnalizator poziomu Trimod Besta M 01 04

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

The following model is equiped with pneumatic switch with ON/OFF 3/2 way valve and drain valve for condensate removal.

Approvals & certificates

  • CE CE
  • EAC Ex EAC Ex
  • SIL 1 SIL 1
  • BV BV
  • DNV DNV
  • LR LR
  • ABS ABS
  • RINA RINA
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads
  • What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • Side mounted
    • Pneumatic switch
    • Nominal pressure: PN 25 according to EN/DIN
    • Input air pressure: 0 to 10 bar
    • Temperature: max +250°C
    • Density of liquid: from 0,7 kg/l
    • Housing material: sea water resistant die cast aluminium
    • Enclosure: IP65

    Options:

    • ATEX Ex ia or Ex d approval
    • NAMUR output, SPDT
    • IP67 or IP68 housing


    • Variable level
    • Output signal pneumatic
    • Process connection other
    • Housing aluminum, stainless steel
    • Ingress protection rating IP65, IP67, IP68
  • `
    1. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    2. Bachofen TrimodBesta Series SIL Certificate

      126kb | ENG

    3. Bachofen TrimodBesta Series Exida FMEDA SIL Report

      264kb | ENG

    4. Bachofen TrimodBesta P Series Installation manual

      697kb | ENG

    5. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    6. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    7. Bachofen TrimodBesta DNV GL approval

      1.6MB | ENG

    8. Bachofen TrimodBesta LR approval

      814kb | ENG

    9. Bachofen TrimodBesta RINA approval

      1020kb | ENG

    10. Bachofen TrimodBesta RMRS approval for pneumatic outputs

      1.2MB | ENG

    11. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
