STF700 / STF800 SIL 2 / SIL 3 Intelligent level transmitters

Honeywell

Honeywell

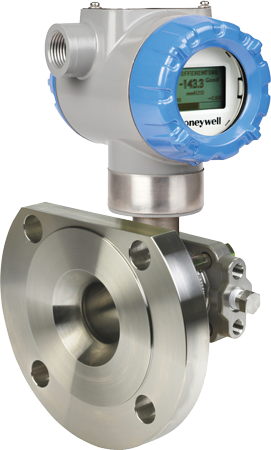

Przetwornik poziomu STF700 / STF800 Honeywell

The SmartLine® STF700 series are mainly used for level measurement. The variety of available versions and approvals ensures universal application in chemical and petrochemical industry as well as energy, pharmaceutical and marine applications. STG800 is characterized, among others, by higher accuracy class and better long-term stability.

Approvals & certificates

  • CE CE
  • NACE NACE
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • IECEx IECEx
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  • HART® HART®
  • FF FF
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads
  • Honeywell SmartLine® STF700 transmitters are high-class, advanced level (low pressure) transmitters with piezoresistive sensors equipped with temperature compensation, meeting the highest requirements in terms of reliability, accuracy, stability and rangeability. They are available with threaded, flanged, hygienic and diaphragm seals. The SmartLine family is fully compatible with the Experion® PKS (Process Knowledge System).

    Honeywell pressure transmitters are used in industrial plants around the world. Local and remote sensor models are available.

    The STF800 model is characterized in relation to the STF700, among others, better accuracy and long-term stability.

    Applications

    • chemical industry
    • petrochemical industry
    • energy
    • paper industry
    • food industry
    • other

    Features

    • measuring ranges: from 0..10 mbar to 0..7 bar
    • accuracy: from 0.025%
    • long-term stability: from 0.01% for 15 years
    • rangeability: 100: 1
    • temperature compensation
    • communication protocols: HART, Foundation Fieldbus, DE
    • certificates: SIL 2/3, ATEX Ex d, Ex ia, MRO175, MRO103, ISO15156 and other
    • warranty up to 15 years
    • Variable pressure, level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™, Modbus®,
    • Accuracy < 0.075%
    • ATEX Ex i, Ex d
    • Local display yes
    • Process connection DIN flange
    • Sensor / wetted parts material 316/316L, Hastelloy
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66, IP67
  • `
    1. Honeywell STF800 Datasheet

      1006kb | ENG

    2. Honeywell STR700 Datasheet

      1.9MB | ENG

Similar products

  1. SIL 2 / SIL 3 Intelligent pressure transmitters

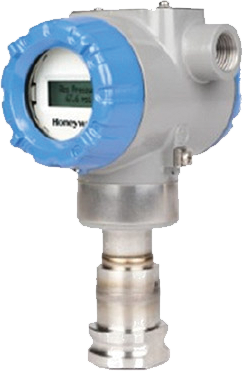

    STG700 / STG800 SIL 2 / SIL 3 Intelligent pressure transmitters

    Gauge pressure transmitters with accuracy up to 0,025%

    details
  2. SIL 2 / SIL 3 Multivariable intelligent level transmitters

    SMV800 SIL 2 / SIL 3 Multivariable intelligent level transmitters

    Multivariable transmitetrs with pressure and temperature compensation

    details
  3. SIL 2 / SIL 3 Intelligent differential pressure transmitters

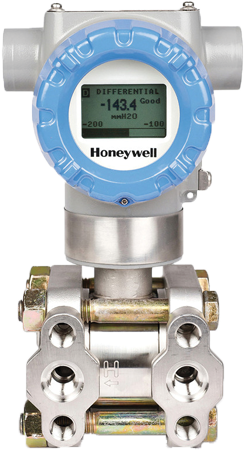

    STD700 / STD800 SIL 2 / SIL 3 Intelligent differential pressure transmitters
