D-VTA 200 Thermography System

Durag Group

Durag Group

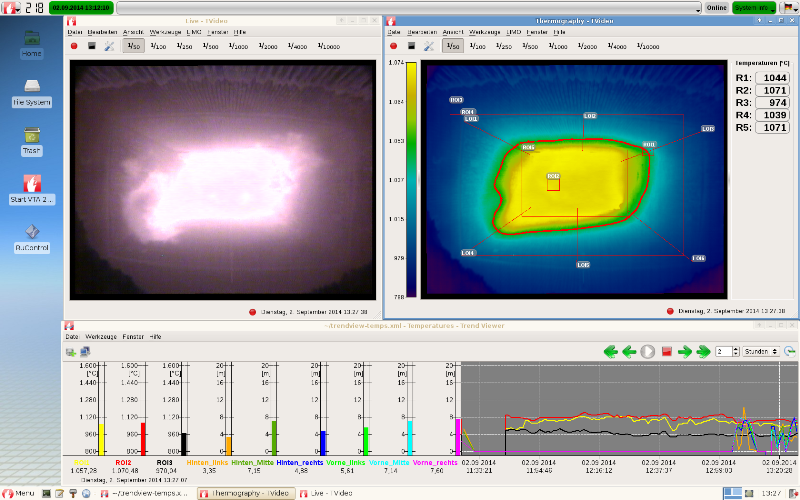

System termografii D-VTA 200 Durag

  • D-VTA 200 Thermography system overview
  • D-VTA 200 Flame image

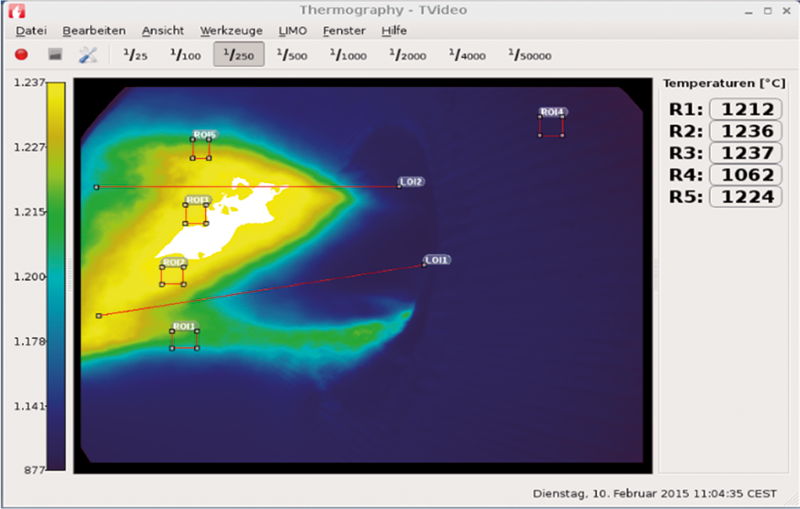

  • D-VTA 200 Thermography image

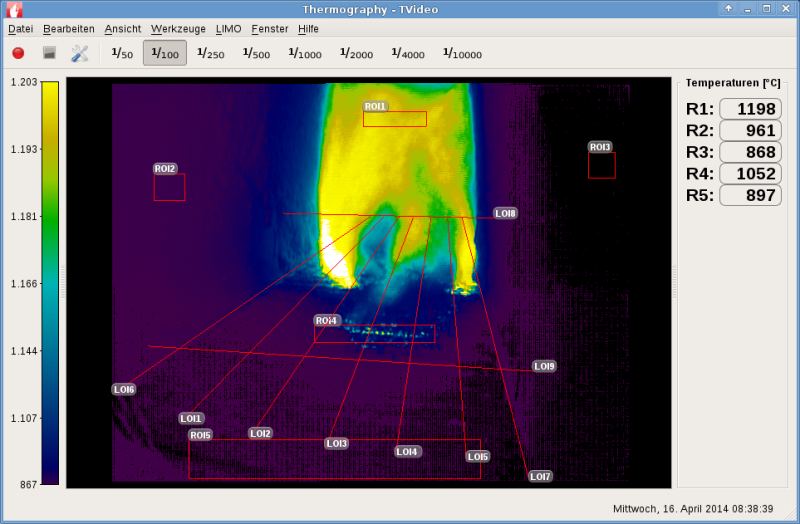

  • D-VTA 200 Grate fireplace thermography

Approvals & certificates

  • CE CE
  1. Features
  2. Specification
  3. Downloads
  • The D-VTA 200 Thermography Analysis System is developed, to work with all DURAG D-FS Furnace Sensors. Up to 8 Furnace Sensors can be connected to one D-VTA 200 System.

    Together with the Furnace Sensor, the Software delivers online temperature distributions directly from the combustion chamber.
    The temperature range and the resolution are depending on the Furnace Sensor.
    Depending on the application different analysing Software modules are available.

    Aplications

    Video Monitoring

    • Direct view of the combustion chamber
    • Visualisation during Startup and Operation

    Thermography Analysis

    • Determine flame temperatur and temperatu Distribution
    • Visualisation of FIREBALL and flame position

    Benefits

    • Enhance Efficiency
    • Less tube ruptures, reduce downtime
    • Optimisation aid in case of changing load of fuel
    • Digital communication Profibus, Modbus®
    • Local display yes
    • Sensor / wetted parts material 316Ti
    • Housing stainless steel
    • Ingress protection rating IP65
  • `
    1. DURAG D-VTA 200 Datasheet

      685kb | ENG

Similar products

  1. Thermography camera

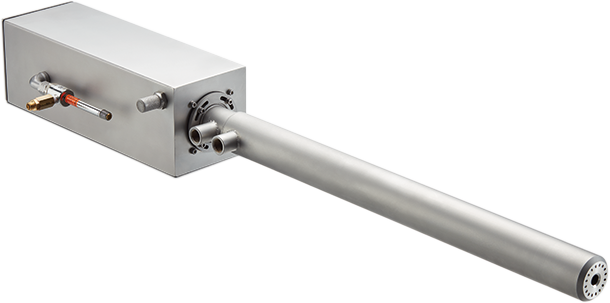

    D-FS2 Thermography camera
