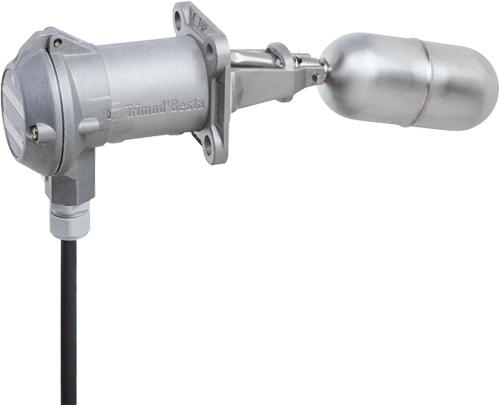

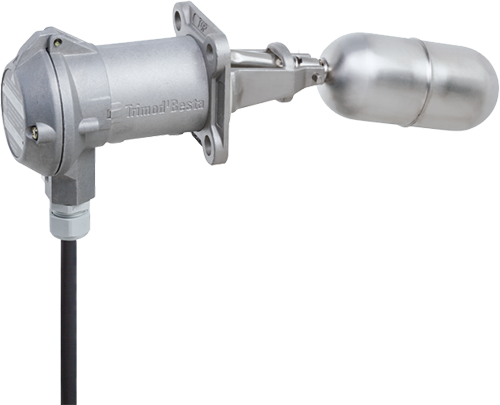

U3A 01 041 Float switches

Bachofen

Bachofen

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

The following float switch is designed for submerged applications to 100 m depth. There are three standard capsulated cable lengths: 3, 5 and 11 m. Longer cables are also avaiilable.

Natalia Szaradowska

Natalia Szaradowska

Technical Specialist

+48 725 176 101

Contact a
specialist

Approvals & certificates

CE
EAC Ex
SIL 2
BV
DNV
LR
ABS
RINA
RMRS

What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

Features:
- Side mounted
- SPDT microswitch
- Nominal pressure: PN 25 according to EN/DIN
- Temperature: from -30°C to +80°C
- Density of liquid: from 0,7 kg/l
- Housing material: sea water resistant die cast aluminium
- Enclosure: IP68
Options:
ATEX Ex ia or Ex d approval

NAMUR output, 2x SPDT, pneumatic

IP67 or IP68 housing
- Variable level
- Output signal VDC switch, VAC switch
- Process connection other
- Electrical connection M20x1.5 female
- Housing aluminum, stainless steel
- Ingress protection rating IP68
`
