1-2471 Eccentric disc, wafer type control valves

Parcol

Parcol

Przepustnice regulacyjne międzykołnierzowe 1-2471 Parcol

1-2471 series control valves feature a double eccentric disc and an easy-to-be changed PTFE or metal seal ring.
These valves provide flow control with an excellent shut-off against high pressure drops applied in either direction.

Approvals & certificates

  • PED PED
  • CE CE
  • NACE NACE
  • EAC Ex EAC Ex
  • SIL 3 SIL 3
  1. Features
  2. Specification
  3. Downloads

  • 1-2471 series control valves feature a double eccentric disc and an easy-to-be changed PTFE or metal seal ring. These valves provide flow control with an excellent shut-off against high pressure drops applied in either direction. End connections are flangeless, wafer type.

    Features

    • nominal diameter: 3 to 24”
    • nominal pressure: up to 100 bar
    • body material: SA 352 LCB carbon steel, 316L stainless steel, Hastelloy, Monel, Alloy 20 (UNS N08020)
    • Variable flow
    • Process connection other
    • Sensor / wetted parts material 316/316L, carbon steel, Hastelloy, Monel
    • Seals PTFE, metal-to-metal
  • `

    1. MERCON Valves Catalogue

      1.2MB | POL

    2. Parcol SIL3 Certificate

      446kb | ENG

    3. Parcol ISO 9001-2008 Certificate

      641kb | ENG

    4. Parcol EAC Certificate RU

      6.6MB | POL

    5. Parcol PED Certificate Mod A1

      191kb | ENG

    6. Parcol PED Certificate Mod D

      361kb | ENG

    7. Parcol PED Certificate Mod H

      88kb | ENG

    8. Parcol 3-5400 PED Certificate Mod B

      4.4MB | ENG

    9. Parcol 1-2471 Datasheet

      1.4MB | ENG

    10. Parcol Packings for control valves

      2.2MB | ENG

    11. Parcol Noise Manual

      1.1MB | ENG

    12. Parcol Handbook for Control Valve Sizing

      1.5MB | ENG

Similar products

  1. Control valves

    1-6940 Control valves

    Traditional plug or balanced plug with guiding cage control valves for chemical industry applications

    details

  2. Multi-path labirynth valves

    1-9000 Limiphon Multi-path labirynth valves

    Designed to solve the acoustic problems caused by high pressure drop either in gas service or cavitating liquid

    details

  3. Eccentric disc, flanged control valves

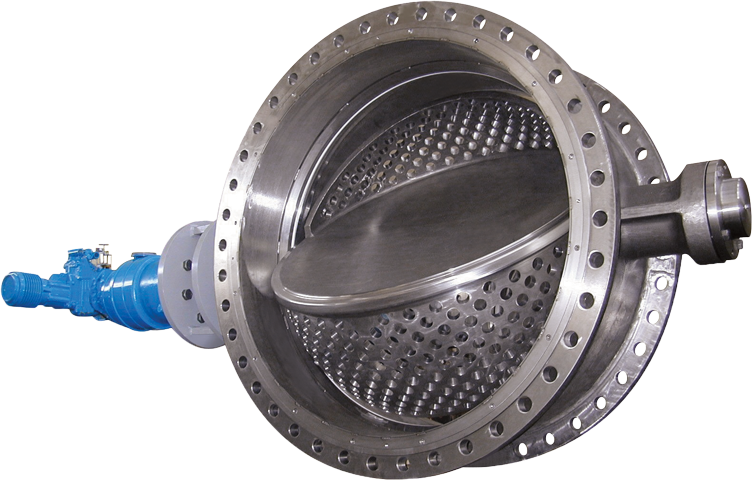

    1-2480 Eccentric disc, flanged control valves
