MELSEC FX Compact PLC controllers

Mitsubishi Electric

Mitsubishi Electric

Compact PLC controllers

  • Mitsubishi FX AD module
  • Mitsubishi FX Input module
  • Mitsubishi FX3U PLC
  • Mitsubishi FX3G PLC

Series FX has been used in a control engineering for over 30 years. They are widely recognized and used.

The FX Family is designed so that the main PLC CPU acts as a platform to which you can add and customize the special functions you need.

Approvals & certificates

  • CE CE
  • UL UL
  • cUL cUL
  • BV BV
  • DNV DNV
  • LR LR
  • ABS ABS
  • RINA RINA
  1. Features
  2. Specification
  3. Downloads
  • The FX Family includes:

    FX3U, FX3UC

    Ultra high speed, maximum performance and a simplified design concept make this the ultimate micro PLC.

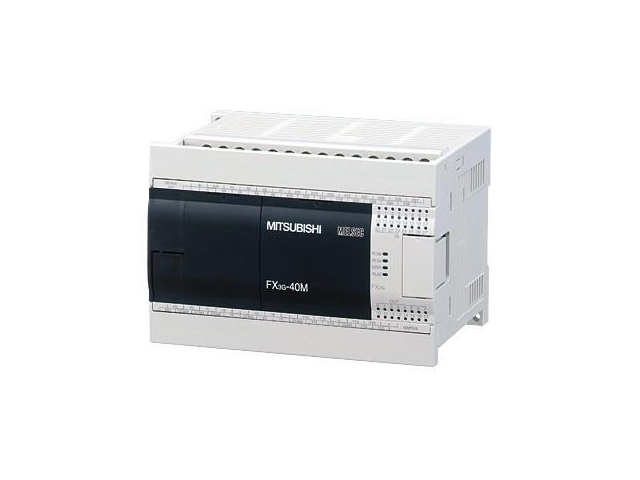

    FX3G

    Advanced control, multiple communication possibilities and a wide range of options make this PLC an industry leader.

    FX1N

    This powerful micro brings the flexibility of the modular PLC design concept but, with the ease of use typical of FX Family PLCs.

    FX1S

    A compact micro controller for simple applications, supported by a strong communications capability.

    Networking and communication solutions

    Networked solutions to complex applications oftenmake the overall solution easier to achieve and more cost effective. For example a conveyor system integrated with a warehouse pick and place system may extend over many hundreds of meters, and by using a fieldbus, such as CC Link,wiring, troubleshooting and maintenance can be dramatically reduced. FX Family PLCs, such as FX1N, FX3G, FX3U and FX3UC, have a wider range of communications modules. These include options for connection to open and bespoke net works such as Ethernet, Profibus-DP, CC-Link, DeviceNet, CANopen, AS-interface or Modbus for example.

    Analogue solutions

    FAnalog control is widely used. In simple terms it allows a variable signal to be used to control items such as a motor’s speed or to sense inputs such as fluid levels.

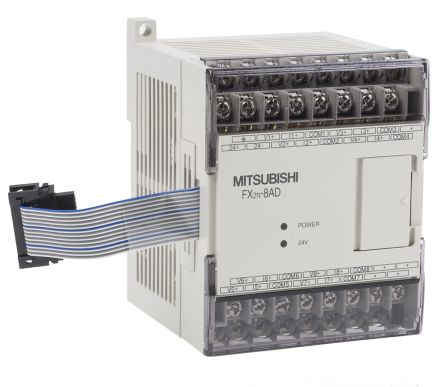

    The FX Family offers a wide range of analog solutions from 1 and 2 channel BD boards for FX1S up to 8 channel input blocks like the FX2N-8AD where temperature, voltage and current input can be mixed on the same block. FX analog blocks also come in a range of resolutions from 8 bit up to 16 bit signal processing. Overall there are 22 different analog options available to users of the FX PLC Family. With this range of choice and flexibility it is sure that there will be a solution here for most applications.

  • `
    1. Mitsubishi Sterowniki PLC MELSEC FX

      4.7MB | POL

    2. Mitsubishi PLC Controllers MELSEC FX

      9.2MB | ENG
