B24 Caged float switches

Magnetrol International

Magnetrol International

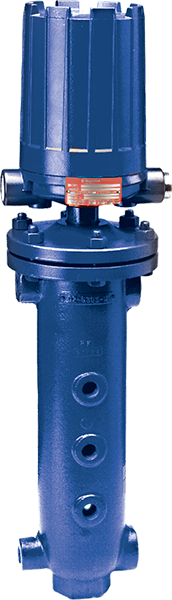

Pływakowy sygnalizator poziomu B24 ze zintegrowaną komorą Magnetrol

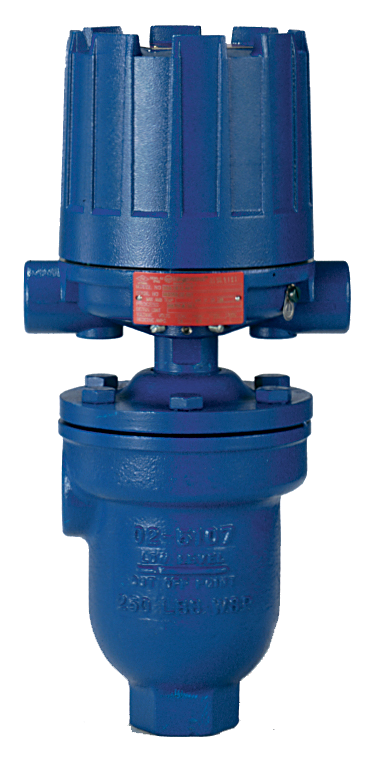

  • Magnetrol B24 with cage threaded female connections 1 inch NPT

Float switches with integrated float cage are destined for condensate level detection in water steam conditions with pressure up to 27,6 bar.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • LR LR
  1. Features
  2. Specification
  3. Downloads
  • B24 are single stage float switches with cage for external mounting on the vessel.

    Especially designed for condensate level detection in steam boilers.

    Operating principle is based on the buoyancy force of a process liquid which acts on the float causing the float to move with the liquid surface. The movement of the float moves an attraction sleeve into the field of the switch magnet, pulling the magnet toward the sleeve and actuating the switch.

    Advantages
    • Maximum medium temperature: up to 200
    • Maximum pressure: up to 27,6 bar
    • Removable switch enclosure from float cage
    • Minimum medium density: 0,85 kg/dm³
    • Single switch level
    • Available hermetically sealed and pneumatic switches
    • Available various designs of switch mechanism enclosure
    • Standard anti corrosive protection

    • Variable level
    • Output signal VDC switch, VAC switch, pneumatic
    • ATEX Ex i, Ex d
    • Process connection other
    • Sensor / wetted parts material 316/316L
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66, IP55
  • `
    1. Magnetrol V type switches User manual

      735kb | ENG

    2. Magnetrol Hermetically sealed switches User manual

      787kb | ENG

    3. Magnetrol Housings and switches of level switches User manual

      1.5MB | ENG

    4. Magnetrol Type J pneumatic switches User manual

      1010kb | ENG

    5. Magnetrol Type K pneumatic switches User manual

      703kb | ENG

    6. Magnetrol B24 Datasheet

      232kb | ENG

    7. Magnetrol B24 User manual

      1.2MB | ENG

    8. Magnetrol B24 Report FMEDA SIL

      417kb | ENG

    9. Magnetrol B24 Certificate ATEX Ex d

      205kb | ENG

    10. Magnetrol B24 Certificate ATEX Ex ia

      167kb | ENG

    11. Magnetrol B24 Certificate IECEx Ex d

      141kb | ENG

    12. Magnetrol Product Line Quick Reference

      4.9MB | ENG
