Eye-Hye® SmartLevel™ Remote Water Level Indication System

Clark-Reliance

Clark-Reliance

Cieczowskaz zdalny Eye-Hye Clark-Reliance

  • EyeHye level indication system

Modular, remote water level indication system for boilers with 10, 12, 20 or 24 conductivity, self-diagnostics probes. Pressure rating up to 200 bar.

Approvals & certificates

  • PED PED
  • CE CE
  1. Features
  2. Specification
  3. Downloads

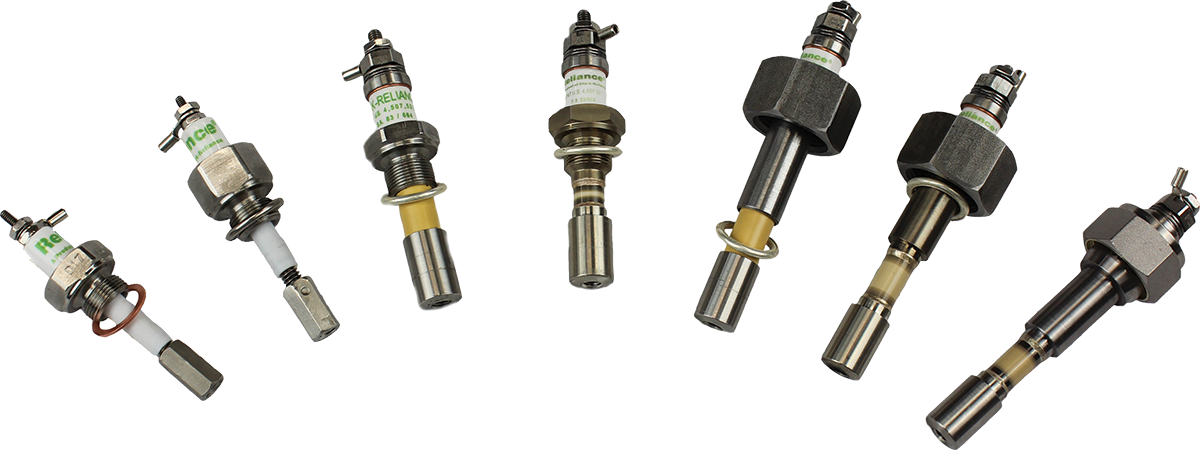

  • Remote level indication is based on "Electrolev" Probe Column with conductive 10, 12, 20 or 24 probes, which Clark-Reliance introduced in 1959.
    Columns and sensors are available with several pressure ratings,  up to 200 bar.


    Simpliport 180 zasada działania

    Whole system is controlled by field-proven, 100% modular design with rugged vibrationresistant connections for probe level detection modules, peripheral accessory boards, and field wiring terminations Control Unit.



    Cechy

    • reliable level indication
    • heat exchange rate improve
    • analogue 4..20 mA and 6 binary outputs (7A @ 240 VAC)
    • self-diagnostics probes
    • separate modules and peripherials self-diagnostics
    • double power supply
    • sensitivity adjustment
    • remote  (up to 1600 m) and local readings
    • pressure rating: up to 200 bar

    • Variable level
    • Output signal 4..20 mA analogue, VAC switch

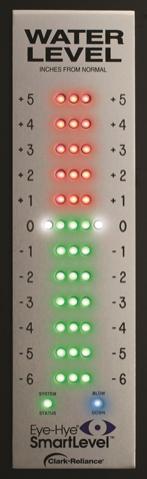

    • Local display yes
    • Ingress protection rating IP66
  • `
    1. CR Reliance EyeHye Smartlevel Datasheet

      988kb | ENG

    2. CR Reliance EyeHye SmartLevel Installation Manual

      611kb | ENG

    3. CR LevelMaxOptima Brochure EN

      129kb | ENG
