LumaStar™ Level gauges LED Illuminator

Clark-Reliance

Clark-Reliance

Podświetlenie cieczowskazów DuraStar Clark-Reliance

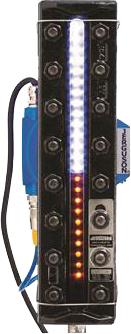

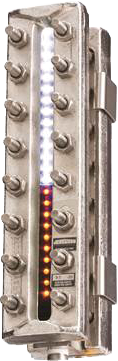

  • Universal transparent level gauge illuminator LumaStar

Reliable, high contrast white LED illuminator for transparent level gauges. LumaStar can be added on field to any transparent gauge. Available explosion-proof power supply and intrinsically safe lighting circuit for ATEX hazardous areas.

Approvals & certificates

  • CE CE
  • ATEX Ex d ATEX Ex d
  • ATEX Ex i ATEX Ex i
  1. Features
  2. Specification
  3. Downloads
  • Jerguson® LumaStar™ Illuminators’ white LED design combines long-life performance with superior visibility for hazardous locations. Jerguson illuminators feature white LED’s that can cut through dirt and coatings on the surface of the glass as well as penetrate dark-colored fluids, allowing operators to safely find the level in the glass level gage during critical solutions. dzięki czemu wskazanie jest wyraźne, w odróżnieniu od listew podświetlających o innym kolorze - bursztynowym lub na zielono.

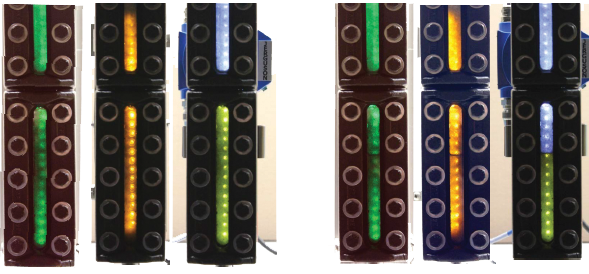

    Below pictures show an amber and a green backlit colour problem. Picture on the left side presents liquid level located between windows. Picture on the right side  presents liquid level within window

    Podświetlenie cieczowskazów LumaStar

    Features

    • up to 150 cm illumination with single  < 250 mA power supply
    • fits every transparent level gauge
    • high contrast - intensive white backlit
    • clear night & day view
    • mounted directly in the field
    • maintenance free, up to 100.000 hours lifetime
    • ATEX approval available

    • Variable level, interface level
    • ATEX Ex i, Ex d
    • Power supply external 230 VAC
    • Electrical connection 3/4 NPT female
  • `
    1. CR Jerguson LumaStar ATEX Certificate

      518kb | ENG

    2. CR Jerguson Overview

      1.7MB | ENG

    3. CR Jerguson Lumastar EPL-100 Datasheet

      2.1MB | ENG

    4. CR Jerguson LumaStar EPL-100 Installation Manual

      656kb | ENG

    5. CR Jerguson Level Gauges, Valves, Accecories Catalogue

      4.3MB | ENG

    6. CR LevelMaxOptima Brochure EN

      129kb | ENG
