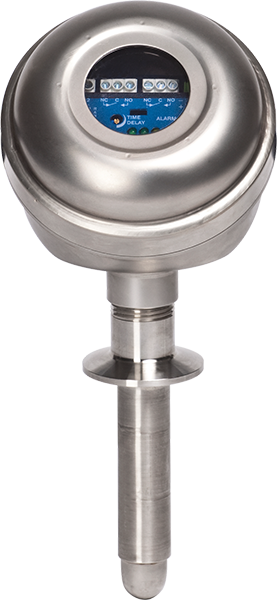

Hygenic Thermatel® TD2 Hygenic design

Magnetrol International

Magnetrol International

Higieniczny sygnalizator termodyspersyjny poziomu lub przepływu Thermatel TD2 Magnetrol

Thermal dispersion level and flow switch with DPDT relay output and LED status indication.

Stainless steel design destined for applications in food and pharmaceutical industry.

Available with 3-A, EHEDG and BPE sanitary certificates.

Approvals & certificates

  • EHEDG EHEDG
  • 3A 3A
  • FM FM
  1. Features
  2. Specification
  3. Downloads
  • Thermal dispersion level and flow switch Thermatel® TD2 hygienic version is characterized by spherical sensor design with lack of crevices making it easy to clean which is one of the requirements of food and pharmaceutical industry.

    Probe consist of two pins with built in RTDs. One pin is heated by built in heater in order to maintain constant temperature difference with the second one pin. Presence of liquid or increase in flow causes temperature dissipation and power increase of heater. This change activates relay output of the switch.

    Advantages

    • Probe insertion length: up to 3,3 m
    • Medium temperature: -70 to 200 °C
    • Maximum pressure: 41,4 bar
    • Non-linear analog output for flow rate trending and diagnostics
    • Easy field calibration
    • Excellent low flow sensitivity
    • Automatic temperature compensation for repeatable alarm under varying process temperatures
    • Continuous diagnostics detect sensor fault
    • Optional retractable fitting for dismantling under process conditions
    • LED switch status indication
    • Unique spherical tip design option ideal for liquids or high viscosity applications
    • Suitable design for CIP/SIP cleaning
    • 316 stainless steel probe with surface roughness 32 Ra


    • Variable level, interface level, flow
    • Output signal VDC switch, VAC switch
    • Repeatablity 1%
    • ATEX none
    • Process connection Tri-Clamp 1-1/2", Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L
    • Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female
    • Housing stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Thermatel Hygenic Datasheet

      489kb | ENG

    2. Magnetrol Thermatel Hygenic User manual

      2.2MB | ENG

    3. Magnetrol Thermatel TD1-TD2 FMEDA Report SIL

      317kb | ENG

    4. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Hygenic design

    Hygenic Eclipse® 705 Hygenic design

    Guided wave radar for food and pharmaceutical industry (3-A, EHEDG)

    details
  2. Hygenic design

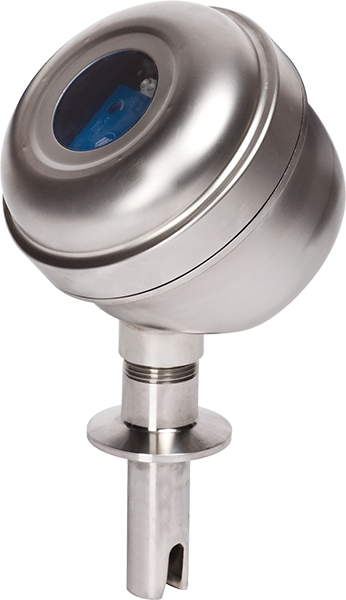

    Hygenic Echotel® 961 Hygenic design

    Thermal dispersion level and flow switch for food and pharmaceutical industry (3-A, EHEDG).

    details
