Hygenic Echotel® 961 Hygenic design

Magnetrol International

Magnetrol International

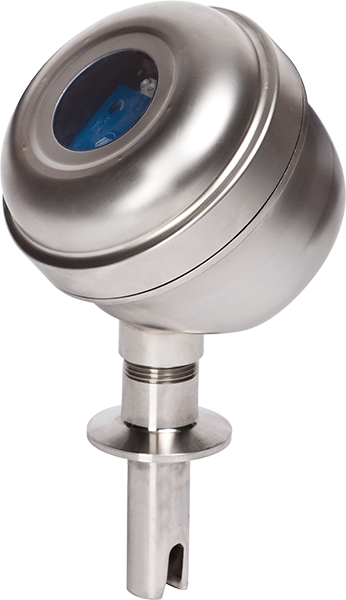

Higieniczny sygnalizator poziomu Echotel 961 Magnetrol

Ultrasonic level switch with relay or analog output used for level detection and diagnostics.

Stainless steel design destined for applications in food and pharmaceutical industry.

Available with 3-A, EHEDG and BPE sanitary certificates.

Approvals & certificates

  • EHEDG EHEDG
  • 3A 3A
  • FM FM
  1. Features
  2. Specification
  3. Downloads
  • All stainless steel design ultrasonic level switch Echotel® 961 with suitable surface finish of wetted parts and available sanitary connections Tri-Clamp® and Varivent® meets the requirements of food and pharmaceutical industry.

    Level switch Echotel® 961 works on the basis of  ultrasonic detection of contact sensor with medium.

    This measurement technology successfully works in applications where foam, heavy turbulence, aeration or suspended solids are present.

    Advantages

    • Insertion length: up to 3,3 m
    • Medium temperature: -40 to 165 °C
    • Maximum pressure: 103 bar
    • No calibration
    • 2 wire loop powered with 8/16 mA output or line powered with integrated relay output SPDT, DPDT
    • Continuous selftest with error indication
    • LED identification for: process alarm, error of transducer or electrical noise interference, wet/dry status of transducer
    • Push buttons for manual testing of alarm and error signals
    • Adjustable time delay up to 45 s
    • Suitable design for CIP/SIP cleaning
    • Available sanitary connections Tri-Clamp®, Varivent® i DIN 11851
    • 316 stainless steel probe with surface roughness 20 Ra


    • Variable pressure, level
    • Output signal VDC switch, VAC switch
    • Process connection Tri-Clamp 1-1/2", Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L
    • Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female
    • Housing stainless steel
    • Ingress protection rating IP67
  • `
    1. Magnetrol Echotel 961-962 User manual line loop powered

      1MB | ENG

    2. Magnetrol Echotel 961-962 Line powered Manual

      1.1MB | ENG

    3. Magnetrol Echotel 961 Datasheet

      687kb | ENG

    4. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Level switch for liquids and pastes

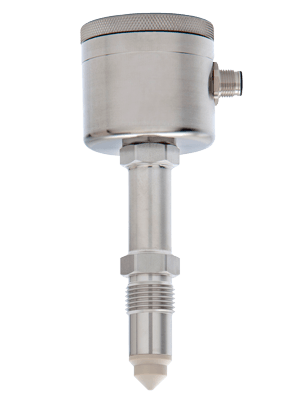

    KMW Level switch for liquids and pastes
