OM Pressure gauges for homogenisers

Nuova Fima

Nuova Fima

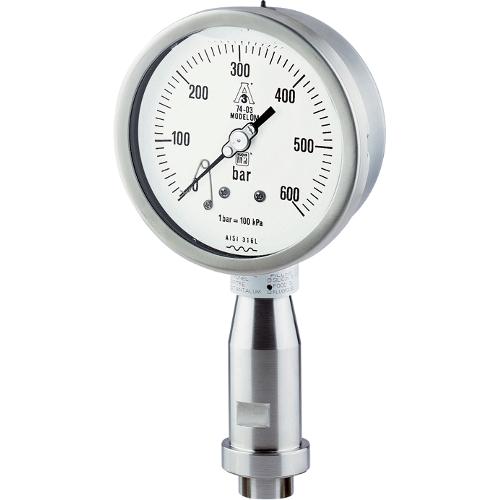

Manometr kwasoodporny do homogenizatora OM

Highly polished stainless steel design compliant to 3-A n.74-06 standard. Pressure gauges integrated with typical homogeniser process connection.

Approvals & certificates

  • PED PED
  • ATEX Ex c ATEX Ex c
  • 3A 3A
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • Stainless steel pressure gauge with integrated separator membrane designed for homogenizers OM. Made according to standard 74-05 3-A organization.

    Application

    • Food Industry
    • Pharmaceutical Industry
    • Mechanical engineering

    Features

    • Integrated homogenizer diaphragm seal
    • Class S1 according to EN 837-2
    • Stainless steel construction
    • Mechanism of measurement: Bourdon tube
    • Range of 0..160 bar to 0..1600 bar
    • Maximum temperature: 150 deg. C for one hour - the process C.I.P. and S.I.P.
    •  Available in versions unfilled or filled
    • Vibration, pulsation and shock resistant
    • Variable pressure
    • Output signal none
    • Accuracy 1.6%
    • ATEX Ex c
    • Sensor / wetted parts material 316/316L
    • Housing stainless steel
    • Ingress protection rating IP67
  • `
    1. NF OM Datasheet

      158kb | ENG

    2. NF OM Manual

      139kb | ENG

    3. NF OM Datenblatt DE

      103kb DE
