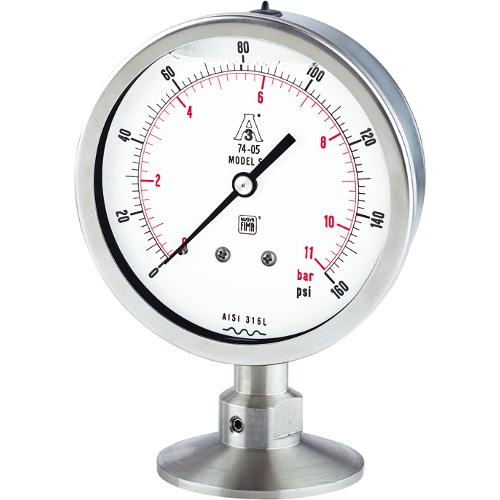

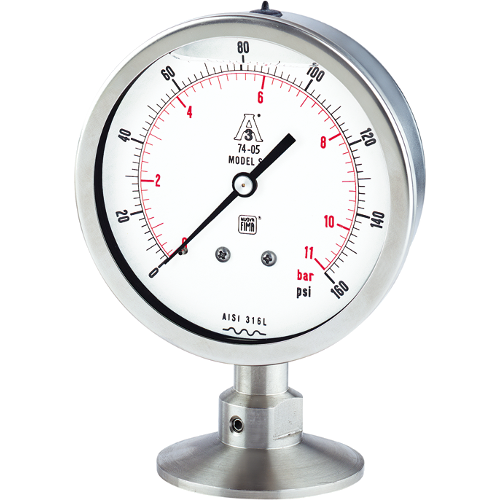

SP Tri-clamp pressure gauges

Nuova Fima

Nuova Fima

Manometr kwasoodporny z separatorem Tri-Clamp SP

Suitable for CIP and SIP cleaning.
Highly polished stainless steel design compliant to 3-A n.74-06 standard. Pressure gauges integrated with diaphragm seal.

Approvals & certificates

  • PED PED
  • 3A 3A
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  •  Sanitary pressure gauges SP designed for the food and pharmaceutical Industries.

    Made according to standard 74-05 3-A organization. Equipped with a separator membrane, made of stainless steel 316.

    Application

    • Food Industry
    • Pharmaceutical Industry
    • Mechanical engineering
    Features
    • Suitable for CIP and SIP cleaning.
    • Sanitary process
    • Integrated homogeniezer diaphragm seal
    • Stainless steel construction
    • Mechanism of measurement: bourdone tube
    • Measuring range of 0..15 to 0..600 psi psi and from 0..1 bar to 0..40 bar
    •  Available in versions unfilled or filled
    • To be sterilized in an autoclave
    • Vibration pulsation and shock resistant
    • Variable pressure
    • Output signal none
    • ATEX none
    • Process connection Tri-Clamp 1-1/2", Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L
    • Housing stainless steel
    • Ingress protection rating IP67
  • `
    1. NF SP Datasheet

      101kb | ENG

    2. NF SP Manual

      139kb | ENG

Similar products

  1. Pressure gauges for homogenisers

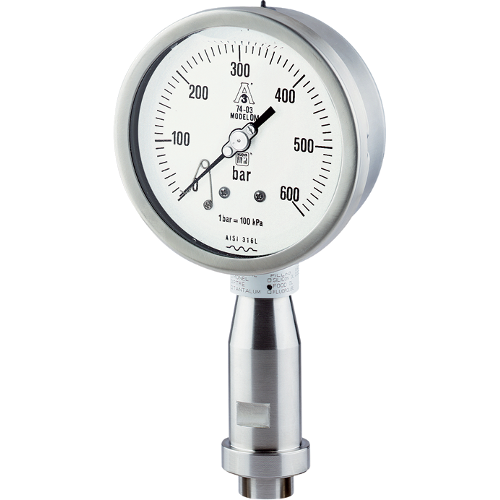

    OM Pressure gauges for homogenisers

    Suitable for CIP and SIP cleaning.

    details
  2. Sanitary diaphragm seals

    S-DIN, S-SMS Sanitary diaphragm seals

    Diapgragm seals with sanitary process connection: S-DIN 11851 or S-SMS

    details
