ST1 Ceramic pressure transmitter

Nuova Fima

Nuova Fima

Kompaktowy przetwornik ciśnienia ST1

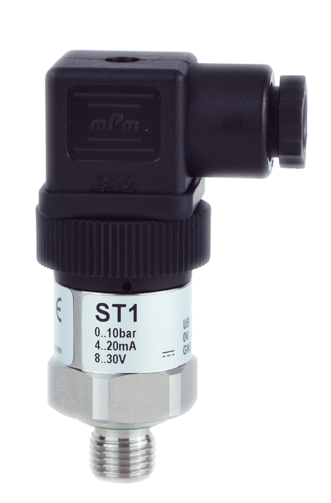

  • ST1 presure transmitter with DIN 175301-803 A electrical connector

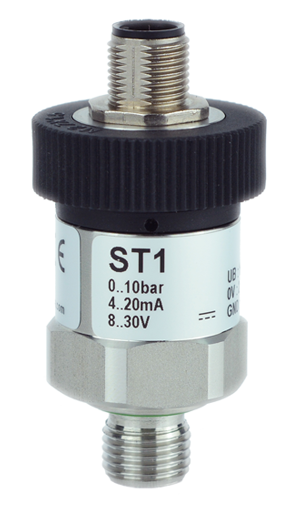

  • ST1 presure transmitter with plug M12x1 electrical connection

Beasic pressure transmitters with ceramic sensor and threaded process connections

Measuring range: -1..24 bar to 0..600 bar

Output signal: 4..20 mA; 0..5 VDC; 0..10 VDC; 1..5 or 0.5 ... 4.5 VDC

Approvals & certificates

  • PED PED
  • CE CE
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads

  • ST1 is a basic pressure transmitters with ceramic sensor. The compact design allows them to be used in places where we have little space to mount the appropriate device.

    Application
    • Air
    • Gas
    • Industrial gases
    • Oil
    • Water

    Features

    • Measuring range: -1 ... 24 bar to 0 ... 600 bar
    • Ceramic sensor
    • Electrical connection: M12x1, extended cable, connector type DIN
    • Class prortection IP65
    • Accuracy: 0.5% of span
    • Medium temperature: -25 to 100 deg. C
    • Variable pressure
    • Output signal 4..20 mA analogue, 0(1)..5 or 0..10 VDC analogue
    • Accuracy 0.5%
    • ATEX none
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 1/4 NPT male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L, ceramic
    • Seals Buna N / NBR, Viton® / FKM / FPM, EPDM
    • Power supply 2 wire 24 VDC discreet loop
    • Electrical connection DIN connector, M12 connector, leadwires
    • Housing stainless steel
    • Ingress protection rating IP65
  • `

    1. NF ST1 Datasheet

      76kb | ENG

    2. NF ST1-ST2 Manual

      159kb | ENG
