ST2 Piezoresistive pressure transmitter

Nuova Fima

Nuova Fima

Kompaktowy przetwornik cisnienia ST2

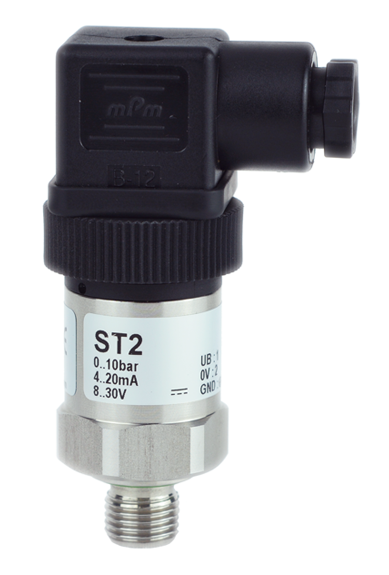

  • ST2 pressure transmitter with DIN 175301-803 A electrical connector

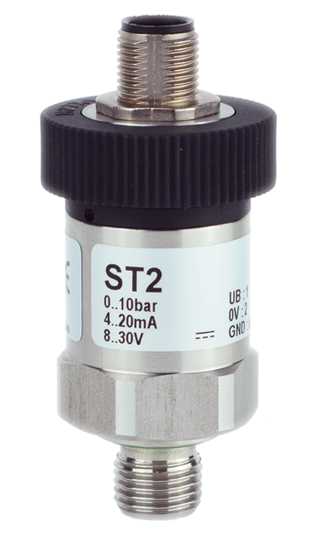

  • ST2 pressure transmitter with plug M12x1 electrical connection

Beasic pressure transmitters with piezoresistive sensor and threaded process connections.

Measuring range: -1..24 bar to 0..1000 bar

Output signal: 4..20 mA; 0..5 VDC; 0..10 VDC; 1..5 or 0.5 ... 4.5 VDC

Approvals & certificates

  • PED PED
  • CE CE
  1. Features
  2. Specification
  3. Downloads
  •  ST2 is a basic pressure transmitters with piezoresistive sensor. The compact design allows them to be used in places where we have little space to mount the appropriate device.

    Application
    • Air
    • Gas
    • Industrial gases
    • Oil
    • Water

    Features

    • Measuring range: -1...24 bar to 0...1000 bar
    • Piezoresistive sensor
    • Electrical connection: M12x1, extended cable, connector type DIN
    • Class prortection IP65
    • Accuracy: 0,35% of span
    • Medium temperature: -25 to 100 deg. C

    • Variable pressure
    • Output signal 4..20 mA analogue, VDC switch
    • Accuracy 0.25%, 0.3%
    • ATEX none
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 1/4 NPT male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L
    • Seals Buna N / NBR, Viton® / FKM / FPM, EPDM
    • Electrical connection DIN connector, M12 connector, leadwires
    • Housing stainless steel
    • Ingress protection rating IP65
  • `
    1. NF ST2 Datasheet

      106kb | ENG

    2. NF ST1-ST2 Manual

      159kb | ENG
