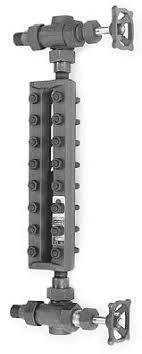

300L, 20, 32 i 40 Level gauges for steam applications

Clark-Reliance

Clark-Reliance

Wskaźniki poziomu do aplikacji parowych Jerguson Clark-Reliance

Gauges designed specially for steam applications. Used for heat exchangers, steam traps, condensers and similar pressure vessel applications.

Approvals & certificates

  • PED PED
  • CE CE
  • NACE NACE
  1. Features
  2. Specification
  3. Downloads
  • WARNING! The level gauges are not intended for use on boilers for ASME Sec. I code applications.

    Gauges designed specially for steam applications. Include models R-300L, R-20, TM-20, TM-32 and TM-40.

    Used for heat exchangers, steam traps, condensers and similar pressure vessel applications with 250 bar (1500 WSP).

    Features

    • design for steam applications
    • up to 250 bar (1500 Working Steam Pressure) rating
    • no higher than 4°C more than saturation temperature of the steam pressure at which the gauge is rated
    • ranges: 95 to 490 mm
    • process connections: threaded and flanged
    • Variable level
    • Process connection flange, welding ends, threaded
  • `
    1. CR Jerguson Gauges Minimum Centers

      8.8MB | ENG

    2. CR Jerguson Level Gauges, Valves, Accecories Catalogue

      4.3MB | ENG

    3. CR Jerguson Level gauges for steam applications

      217kb | ENG

    4. CR LevelMaxOptima Brochure EN

      129kb | ENG

Similar products

  1. Bi-Color Ported Water Gages

    Simpliport® 180 Bi-Color Ported Water Gages

    Steam and water level interface with 180° view

    details
  2. Level gauges for boilers

    SG Series Level gauges for boilers

    Rugged, high-quality products constructed of the finest materials for use on fired pressure vessels

    details
  3. Transparent level gauges

    T-300L Transparent level gauges

    Transparent gauges with flat glasses used for up to 50 bar level or interface service

    details
  4. Metal Seated Safety Ballcheck Valves

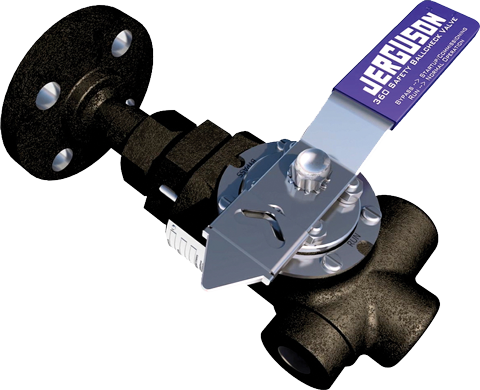

    360 Series Metal Seated Safety Ballcheck Valves
