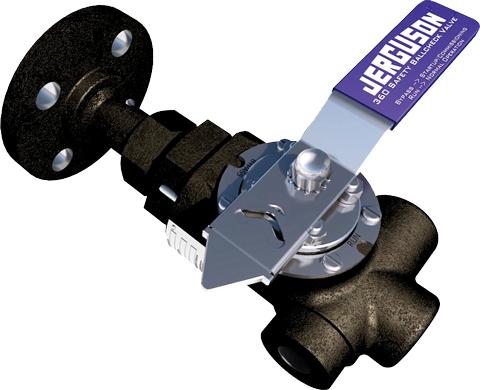

360 Series Metal Seated Safety Ballcheck Valves

Clark-Reliance

Clark-Reliance

Zawór odcinający z zabezpieczeniem przeciwwypływowym serii 360 Clark-Reliance

Innovative Core Design Locating an Internal Ballcheck within a Metal Seated Valve. The quarter turn position — visible handle provides clear operation status and a locking pin to secure its position.

Approvals & certificates

  • CE CE
  • NACE NACE
  1. Features
  2. Specification
  3. Downloads
  • Innovative Core Design Locating an Internal Ballcheck within a Metal Seated Valve. The Jerguson 360 Series valve is equipped with many features that elevate its performance above traditional style safety ballcheck valves. Designed to alleviate a widespread problem, the 360 Series’ bypass mode seeks to remove guess work or operator error during commissioning. The quarter turn position — visible handle provides clear operation status and a locking pin to secure


    Features

    • Improve safety by eliminating false level readings during commissioning
    • Clean-out port allows for quick inspection of internals or as a flushing port
    • Quarter turn position visible handle indicates open or closed
    • Low emission certified to API 641 & ISO 15848-1
    • Meets API Class V shut-off requirements
    • 900# ANSI Pressure Rating
    • All wetted components comply with NACE MR0103 and MR0175
    • Lock-out / tag-out capable, standard
    • Process connection flange, welding ends, threaded
    • Sensor / wetted parts material 316/316L, carbon steel, Hastelloy
  • `
    1. CR Jerguson 360 Installation Manual

      1.3MB | ENG

    2. CR Jerguson 360 Datasheet

      245kb | ENG

    3. CR Jerguson Level Gauges, Valves, Accecories Catalogue

      4.3MB | ENG
