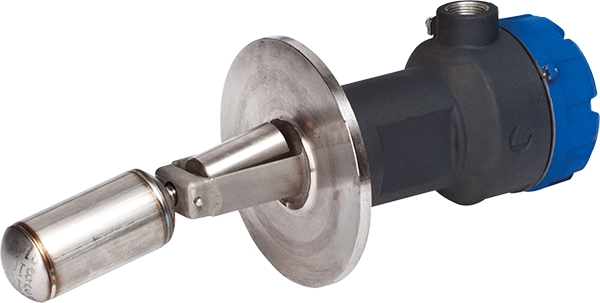

Tuffy® II Float switches

Magnetrol International

Switches utilizes float buoyancy for liquid level or interface detection.

Compact sizes allows installation in small vessels or chambers through available threaded or flanged process connections.

Available are models with relay SPDT or DPDT and pneumatic output as well.

Approvals & certificates

PED
CE
NACE
ATEX Ex i
ATEX Ex d
EAC Ex
FM
IECEx

The Tuffy® II series achieve switching action through the use of repelling magnets on the float assembly and the switch mechanism. Separating the two magnets with a nonmagnetic barrier. The float follows the liquid level as it changes, causing the attached float magnet to move into the field of the switch magnet. The like poles of these magnets repel each other causing the switch magnet to change position, actuating the switch.

Depending on function available float switches can be divided into following types:

Switches with narrow differential:
T3B - switches for interface detection

T33 - switches with hastelloy C wetted parts, destined for liquid level detection

T31 - threaded or flanged switches with wetted parts made of carbon and/or stainless steel, destined for liquid level detection with minimum density 0,4 kg/dm³

T32 - flanged switches with wetted parts made of carbon and/or stainless steel, destined for liquid level detection with minimum density 0,6 kg/dm³

T35 - threaded or flanged switches with wetted parts made of carbon and/or stainless steel, destined for liquid level detection with minimum density 0,6 kg/dm³

039 - compact threaded switches with electric or pneumatic signal output, destined for liquid level detection with minimum density 0,4 or 0,6 kg/dm³

Switches with wide differential:
T3C - threaded or flanged switches with wetted parts made of carbon and/or stainless steel, destined for liquid level detection with minimum density 0,78 kg/dm³

Advantages

Medium temperature: -55 to 400 °C

Maximum pressure: up to 150 bar abs

High, low level alarm or control function

NACE and/or ASME B31.3

Minimum medium density: 0,4 kg/dm³

Silver or gold contacts of microswitches

Available hermetically sealed SPDT microswitches

Optionally delivered with external cages
- Variable level, interface level
- Output signal VDC switch, VAC switch, pneumatic
- ATEX Ex i, Ex d
- Process connection 2 NPT male, other
- Sensor / wetted parts material 316/316L, Hastelloy
- Power supply external 24 VDC, external 230 VAC
- Electrical connection M20x1.5 female, 3/4 NPT female
- Housing aluminum
- Ingress protection rating IP65
`
