B60 Flanged float switches

Magnetrol International

Magnetrol International

Sygnalizator pływakowy B60 NACE ze zintegrowaną komorą Magnetrol

Flanged float switches are destined for external mounting on the vessel. They are available with welded, threaded and flanged connections in orientation side-side and side-bottom.

Proposed switch model is characterized by the highest pressure rating from available flanged switches.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • LR LR
  1. Features
  2. Specification
  3. Downloads

  • Flanged float switches are characterized by completely integrated switch enclosure with float cage with possibility to disassemble them.

    Operating principle is based on the buoyancy force of a process liquid which acts on the float causing the float to move with the liquid surface. The movement of the float moves an attraction sleeve into the field of the switch magnet, pulling the magnet toward the sleeve and actuating the switch.

    Advantages

    • Maximum medium temperature: 400 deg.C
    • Maximum pressure: 62 bar
    • Minimum medium density: 0,69 kg/dm³
    • Possible minimum medium density: 0,5 kg/dm³ (J31 and J33)
    • Up to 3 switch levels
    • Available hermetically sealed and pneumatic switches
    • Standard anti corrosive protection
    • Interface calibration
    • Optional NACE construction

    • Variable level, interface level
    • Output signal VDC switch, VAC switch, pneumatic
    • ATEX Ex i, Ex d
    • Process connection other
    • Sensor / wetted parts material 316/316L
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66, IP55
  • `

    1. Magnetrol V type switches User manual

      735kb | ENG

    2. Magnetrol Hermetically sealed switches User manual

      787kb | ENG

    3. Magnetrol Housings and switches of level switches User manual

      1.5MB | ENG

    4. Magnetrol Type K pneumatic switches User manual

      703kb | ENG

    5. Magnetrol Series 3 User manual ASME B31.3

      659kb | ENG

    6. Magnetrol B75 B60 Datasheet

      434kb | ENG

    7. Magnetrol B75 B60 Report FMEDA SIL

      417kb | ENG

    8. Magnetrol B75 B60 Certificate ATEX Ex d

      205kb | ENG

    9. Magnetrol B75 B60 Certificate ATEX Ex ia

      167kb | ENG

    10. Magnetrol B75 B60 Certificate IECEx Ex d

      141kb | ENG

    11. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Sealed float switches

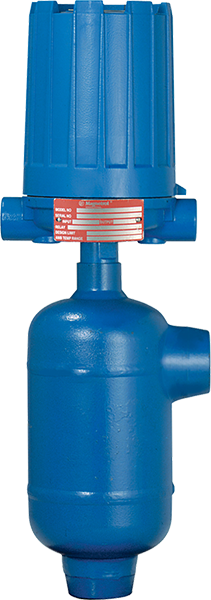

    B75 Sealed float switches

    Liquid level and interface float switches with integrated float cages.

    details

  2. Float switches

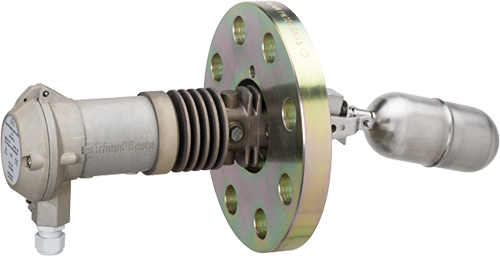

    HA 24E 02 Float switches
