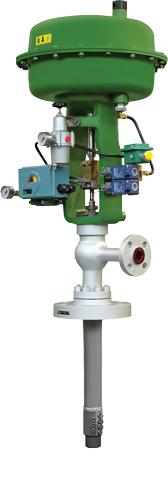

1-4442 Spraysat Desuperheaters

Parcol

Parcol

Schładzacze pary 1-4442 Parcol

1-4442 Spraysat multiple nozzle desuperheaters (variable area) are designed to provide optimum performance and high rangeability. The independent spray nozzles are progressively activated by the throttling piston, providing a good water atomization down to minimum flow conditions.

Approvals & certificates

  • PED PED
  • CE CE
  • NACE NACE
  • EAC Ex EAC Ex
  • SIL 3 SIL 3
  1. Features
  2. Specification
  3. Downloads
  • 1-4442 Spraysat multiple nozzle desuperheaters (variable area) are designed to provide optimum performance and high rangeability. The independent spray nozzles are progressively activated by the throttling piston, providing a good water atomization down to minimum flow conditions. To improve the quality of atomization and accuracy of temperature control, several sizes of spray nozzles are available.

    The built-in control system is very compact, reliable and easy to operate. The split body design allows to change easily the orientation of water connection versus the steam piping and greatly facilitate the seat replacement.

    Features

    • nominal diameter: water 1 to 3”, steam 3 do 6”
    • nominal pressure: 16 to 250 bar
    • nozzles quantity: 7 to 21
    • Variable flow
    • Process connection flange
    • Sensor / wetted parts material 316/316L, carbon steel
  • `
    1. MERCON Valves Catalogue

      1.2MB | POL

    2. Parcol SIL3 Certificate

      446kb | ENG

    3. Parcol ISO 9001-2008 Certificate

      641kb | ENG

    4. Parcol TA-Luft Sealing pack Certificate

      1.3MB | ENG

    5. Parcol EAC Certificate RU

      6.6MB | POL

    6. Parcol PED Certificate Mod A1

      191kb | ENG

    7. Parcol PED Certificate Mod D

      361kb | ENG

    8. Parcol PED Certificate Mod H

      88kb | ENG

    9. Parcol 3-5400 PED Certificate Mod B

      4.4MB | ENG

    10. Parcol 1-4442 Datasheet

      203kb | ENG

    11. Parcol Packings for control valves

      2.2MB | ENG

    12. Parcol Noise Manual

      1.1MB | ENG

    13. Parcol Handbook for Control Valve Sizing

      1.5MB | ENG
