219/220 Vibrating level switches with sensor on flexible cable

MERCON

MERCON

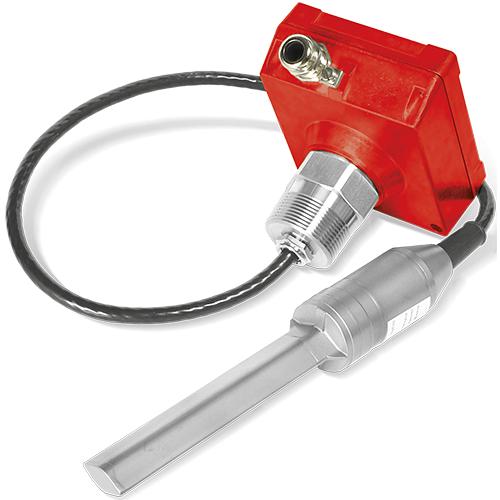

Wibracyjny sygnalizator poziomu materiałów sypkich MERCON 219-220

Excellent working level control instruments for detecting high-, low- or mid level in silos, vessels or hoppers filled with dry grained or powdered material.

Model 219 is recommended for level measurements of bulk solids in high vessels where sensor can be mounted only from the top. Sensor hung on flexible cable allows switching much below maximum level in the vessel.

Model 220 with sensor connected to electronics housing via flexible cable and supporting chain for applications where high risk of sensor tearing off is possible.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex tD ATEX Ex tD
  1. Features
  2. Specification
  3. Downloads
  • MERCON level switches were designed especially for level measurement of dry bulk solids – from heavy aggregates, through cement, ashes to low density flakes and powders. Single probe with unique diamond shape eliminates the main disadvantage of tuning fork switches  - material bridging inside fork and associated with this false switching. Additionally, mounting possibility ensures high mechanical durability (long diamond diagonal in vertical alignment) or high sensitivity in case of low density solids at 20 g/l (shorter diamond diagonal in horizontal alignment).

    Model 219 is recommended for level measurements of bulk solids in high vessels where sensor can be mounted only from the top. Sensor hung on flexible cable allows switching much below maximum level in the vessel.

    Model 220 with sensor connected to electronics housing via flexible cable and supporting chain for applications where high risk of sensor tearing off is possible.

    • Probe insertion length: up to 20 m
    • Probe: 304 stainless steel
    • Material of flexible probe sheath: polyurethane
    • Relay output: 2x DPDT
    • LED status indication
    • Medium temperature: -40°C to 70°C
    • Ambient temperature: -40°C to +60°C
    • Power supply: 20..250 VAC/VDC
    • Electronics housing: epoxy painted aluminum, IP66



    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX Ex i, Ex tD
    • Process connection 1-1/2 BSPT male
    • Sensor / wetted parts material 304
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66
  • `
    1. MERCON Bulk solids Catalogue

      1.3MB | POL

    2. MERCON 172-220 Datasheet

      640kb | POL

    3. MERCON 172-220 Instruction manual

      897kb | POL

    4. MERCON 172-220 Deklaracja zgodności WE

      402kb | POL
