Centurion Guided wave radar

Hawk

Hawk

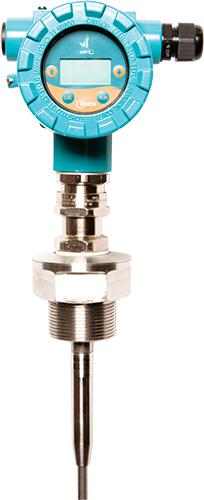

Radar falowodowy na materiały sypkie i ciecze Centurion Hawk

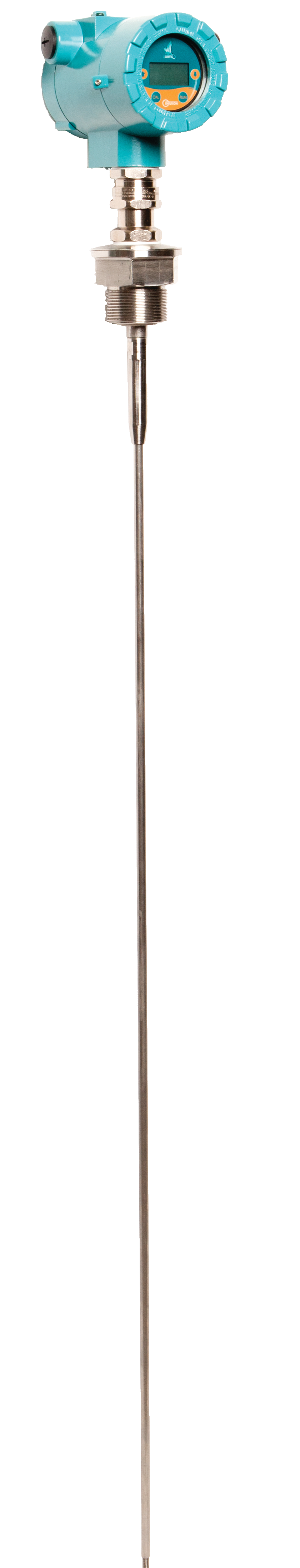

  • Centurion with rod probe

Centurion is a guided wave radar destined for level measurement of liquids, sludge and solids in form of powder or granules.

Guided wave radar technology ensures stable level measurement in applications where pressure, temperature or medium dielectric constant changes and/or dust or foam is present.

Using special software even heavy build up on probe does not affect the measurement.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex tD ATEX Ex tD
  • IECEx IECEx
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  • HART® HART®
  • Profibus Profibus
  • FF FF
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads
  • Guided wave radar technology ensures stable level measurement in applications where pressure, temperature or medium dielectric constant changes and/or dust or foam is present.

    Using special software even heavy build up on probe does not affect the measurement.


    Principle of operation



    Pulses in form of electromagnetic wave is transmitted along a probe. At the point where the wave meets the medium surface it is reflected and returns along a probe to the transmitter. Based on the time of flight between sending and receiving signal the transmitter calculates the level.


    Advantages


    • Level measurement: from 150 mm to 35 m
    • Medium temperature: -40 to +150 C
    • Maximum pressure: up to 100 bar
    • Measurement of low dielectric media from 1.4
    • 2-wire loop powered intrinsically safe level transmitter
    • Optional relays output
    • No moving parts
    • Level measurement insensitive to change in pressure, temperature, dielectric constant and presence of foam, dust and medium build up on the probe
    • Quick and easy auto-calibration
    • Adjustable sensitivity and signal amplification
    • LCD local indicator with 4 programming buttons
    • Rod and flexible probes
    • Available different material constructions and connections
    • Programmable fail safe mode
    • 3G remote communication support
    • SIL 2 / SIL 3 certificate

    • Variable level, interface level
    • Output signal none, 4..20 mA analogue, VAC switch
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™, Modbus®
    • ATEX Ex i, Ex tD
    • Local display yes
    • Process connection 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 3/4 NPT male, 1 NPT male, 1-1/2 NPT male, other
    • Sensor / wetted parts material 316/316L
    • Seals Buna N / NBR, Viton® / FKM / FPM
    • Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 1/2 NPT female, 3/4 NPT female
    • Housing epoxy coated aluminum, stainless steel, Lexan™
    • Ingress protection rating IP65, IP66, IP67
  • `
    1. MERCON Bulk solids Catalogue

      1.3MB | POL

    2. Hawk Centurion IECEx Certificate Ex d ia tb

      3.9MB | ENG

    3. Hawk Centurion EU Declaration of conformity

      167kb | ENG

    4. Hawk Centurion User manual for zone 0 and 1 IECEx

      956kb | ENG

    5. Hawk Centurion User manual for zone 20 i 21 IECEx

      1.1MB | ENG

    6. Hawk Centurion User manual

      6.7MB | ENG

    7. Hawk Centurion Data sheet

      1.4MB | ENG

    8. Hawk Centurion Modbus Datasheet

      1.4MB | ENG

    9. Hawk Centurion Modbus User manual

      5.9MB | ENG

    10. Hawk Centurion SIL Safety manual EN

      1.4MB | ENG
