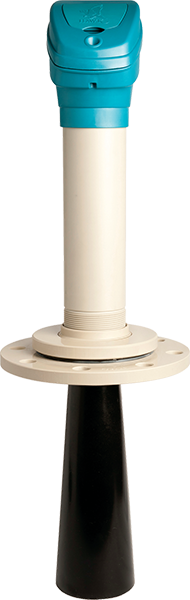

Sultan Non-contact acoustic wave level transmitters.

Hawk

Hawk

Bezkontaktowy, akustyczny przetwornik poziomu Sultan Hawk

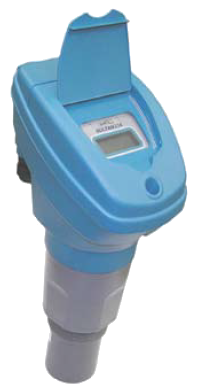

  • Sultan compact version
  • Sultan remote version

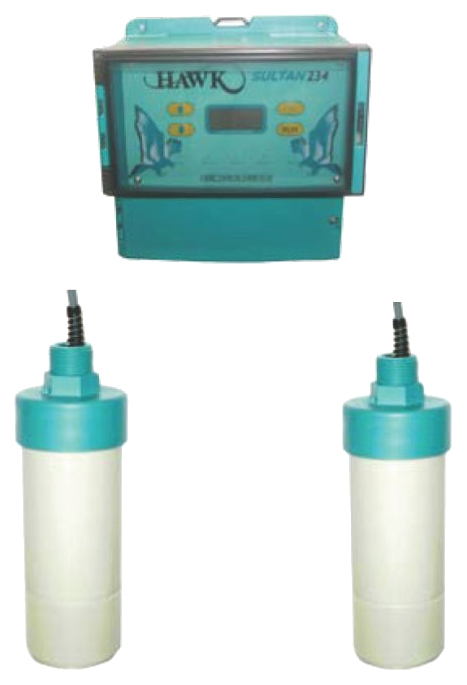

  • Sultan dual

Sultan series are level transmitters for solids and liquids utilizing low frequency sound waves for measurement.

Due to unique one world scale the technology of acoustic wave the measurement of media in very dusty, heavy vapors and condensation conditions is possible.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex tD ATEX Ex tD
  • IECEx IECEx
  • HART® HART®
  • Profibus Profibus
  • FF FF
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Applications
  4. Downloads
  • Sultan series are non-contact level transmitters for solids and liquids utilizing innovative technology of acoustic wave developed by HAWK Measurement Systems which is based on emission of low frequency sound waves.

    In opposition to typical ultrasonic level transmitters the technology of acoustic wave is not affected by dustiness, condensation or vaporization. Additionally, emitted signal causes self-cleaning of antenna interior which eliminates the need of air purge usage in applications where medium build up on antenna is high possible.

    Principle of operation

    Sultan acoustic transmitter emits a high powered acoustic wave transmit pulse which is reflected from the surface of the material being measured and returns to the device. The reflected signal is processed using specially developed software to enhance the correct signal and reject false or spurious echoes. . The measured signal is temperature compensated to provide maximum accuracy to the outputs and display.

    Advantages

    • Non-contact level tranmitter up to 180 m
    • Medium temperature: -40 to 175 °C
    • Maximum pressure: 0,5 bar
    • Insensitive to dust, condensation or vapors
    • Self-cleaning antenna interior in case of medium build up
    • High power signal transmission even with two wire loop supply
    • Temperature compensation
    • Remote version up to 1000 m
    • 2 line x 12 digit alphanumeric LCD local indicator with programming buttons
    • Available different material constructions and connections

    • Variable level, distance
    • Output signal 4..20 mA analogue, VAC switch
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™, Modbus®
    • Accuracy 0.25%
    • ATEX Ex i, Ex tD, Ex m
    • Local display yes
    • Process connection 1 BSPP male, 2 NPT male, other
    • Sensor / wetted parts material titanium, PTFE, PP
    • Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
    • Electrical connection M16 female
    • Housing Lexan™
    • Ingress protection rating IP65, IP67, IP68
  • `
    1. MERCON Bulk solids Catalogue

      1.3MB | POL

    2. Hawk Sultan User manual

      7.3MB | ENG

    3. Hawk Sultan 234 Data sheet

      2.3MB | ENG

    4. Hawk Sultan 2 Data sheet

      1.6MB | ENG

    5. Hawk Sultan Dual 34 Data sheet

      1.4MB | ENG

    6. Hawk Sultan User manual quick start

      2.7MB | ENG

    7. Hawk Sultan ATEX Certificate Ex m

      583kb | ENG

    8. Hawk Sultan ATEX Certificate Ex tD

      576kb | ENG

    9. Hawk Sultan IECEx Certficate Ex mb

      620kb | ENG

    10. Hawk Sultan IECEx Certificate Ex tD

      756kb | ENG

    11. Hawk Sultan EU Declaration of Confromity

      169kb | ENG

    12. Hawk Sultan Instrukcja skrocona

      1.2MB | POL

    13. Hawk Sultan Deklaracja zgodności WE

      532kb | POL

    14. HAWK Sultan Instrukcja

      2.7MB | POL

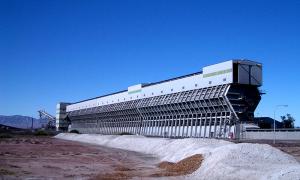

    1. Reliable level technology for coal fired power stations

      Reliable level technology for coal fired power stations

      There are several locations where coal fired power plants measure level of coal. Integral aspect of the coal level measurements, so as other solids and bulk materials, is dust. The best solution, immune to dust are accoustic level transmitters Sultan with temperature compensation and self-cleaning sensors.

      details
    2. Bulk products level measurement in silos

      Bulk products level measurement in silos

      Level measurement in dusty environment causes problems. Many of methods fail, readings are unreliable or specific technologies do not fit applications at all because of principle of operation. Interesting, immune to dust, moisture and fumes solution are accoustic wave level transmitters Sultan.

      details

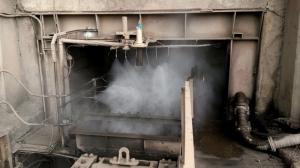

    3. Acoustic wave transmitters in crushers' feed level measurement

      Acoustic wave transmitters in crushers' feed level measurement

      Level measurement of ore, coal, stones or gravel is problematic for most devices. Dusty environment in addition of moist from sprinklers are a challenge for devices. For most transmitters such conditions are an insurmountable obstacle. For such applications Sultan level transmitters fit perfectly - the acoustic wave they emit passes through dust and water aerosol without any obstacles.

      details

Similar products

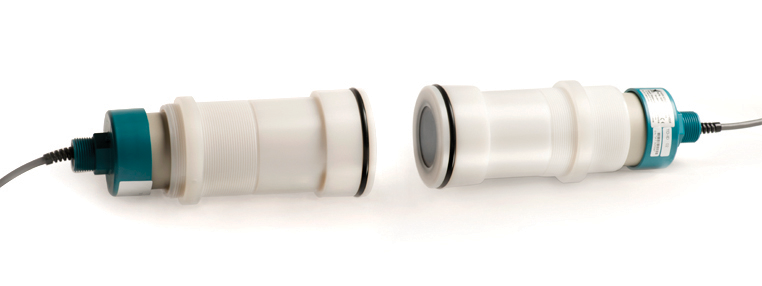

  1. Gladiator Acoustic Switch
