T-300L Transparent level gauges

Clark-Reliance

Clark-Reliance

Cieczowskazy transparentne T-300L Jerguson Clark-Reliance

Transparent level gauges are used either for level or interface service. Due to their design, they can also be used to check the translucency of liquids or their colour.

Approvals & certificates

  • CE CE
  • PED PED
  • NACE NACE
  1. Features
  2. Specification
  3. Downloads
  • Jerguson® Transparent Level Gages are selected for interface level indication, dirty service or any application that requires the use of a shield to protect the glass from corrosion. A transparent gage is also known as a “thru-vision” gage since the gage is constructed with two pieces of flat polished glass assembled on opposite sides of the level gage chamber. Since the user can see straight through the gage, it is also easy to view the fluid properties, such as color, whereas this would not be possible with a reflex gage. The use of an illuminator is always recommended on a transparent gauge.

    Przekrój cieczowskazu transparentnego Jerguson

    Features

    • working pressure: up to 50 bar
    • working temperature: up to 316°C
    • each gauge hydrostatically tested @ 1,5 times the design pressure rating at 38°C
    • ranges: 260 to 3168 mm
    • process connections: threaded, flanged or welded
    • liquid chamber machined from single bar stock
    • NACE MR-01-75 wetted parts compliant
    • BS3463, DIN 7080 i DIN 7081 borosilicate glass compliant
    • recessed gasket seat in chamber and cover
    • Variable level, interface level
    • Process connection flange, welding ends, threaded
    • Housing stainless steel, steel
  • `
    1. CR Jerguson LumaStar ATEX Certificate

      518kb | ENG

    2. CR Jerguson 300L datasheet

      477kb | ENG

    3. CR Jerguson Gauges Minimum Centers

      8.8MB | ENG

    4. CR Jerguson Overview

      1.7MB | ENG

    5. CR Jerguson Level Gauges, Valves, Accecories Catalogue

      4.3MB | ENG

Similar products

  1. Level gauges LED Illuminator

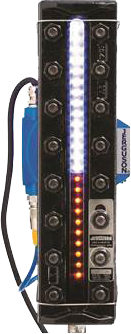

    LumaStar™ Level gauges LED Illuminator

    Universal, reliable LED illuminator for transparent level gauges

    details
  2. Remote Water Level Indication System

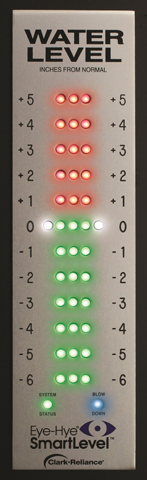

    Eye-Hye® SmartLevel™ Remote Water Level Indication System

    Modular, remote water level indication system for boilers

    details
  3. Reflex level gauges

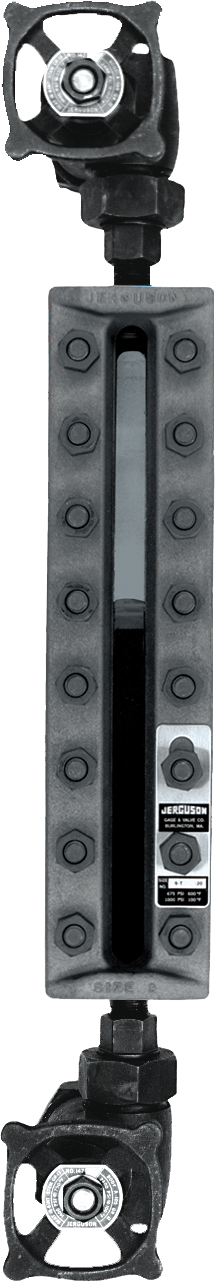

    R-300L Reflex level gauges

    Level gauges with reflex glass used for clean liquid service up to 50 bar

    details
  4. Large Chamber Gauges

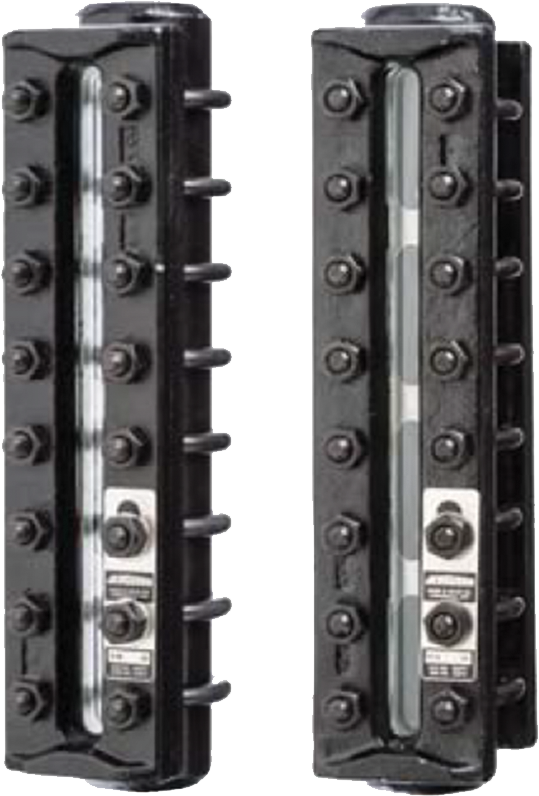

    L10™ Large Chamber Gauges
