Echotel® 961/962 Ultrasonic switches

Magnetrol International

Magnetrol International

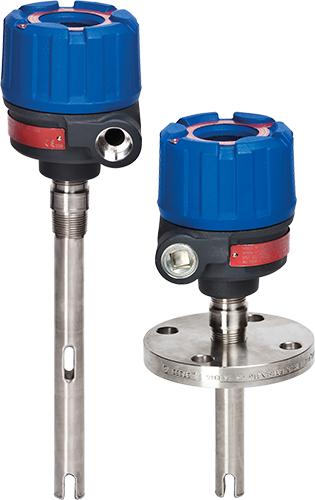

Ultradźwiękowy sygnalizator poziomu Echotel 961 / 962 Magnetrol

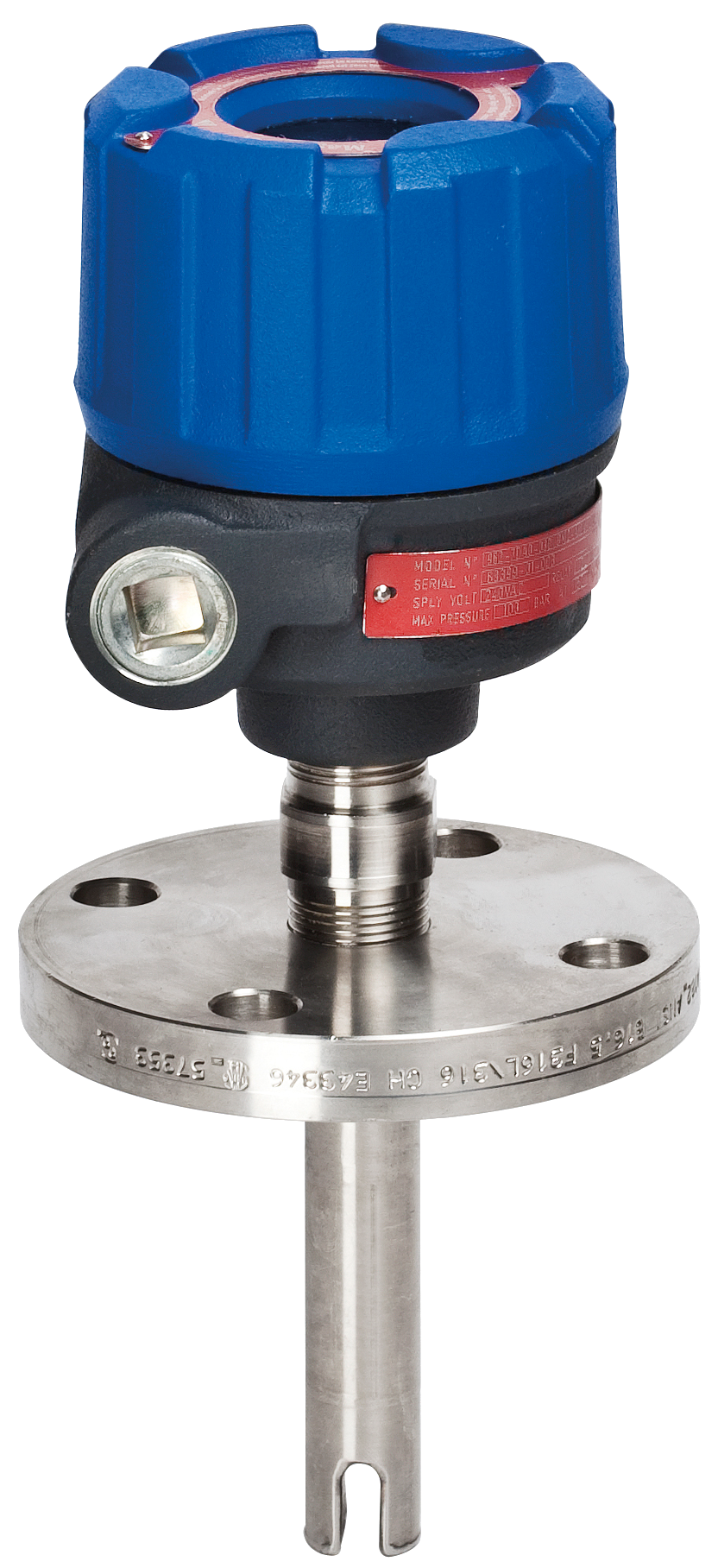

  • Echotel® 961 with flanged connection

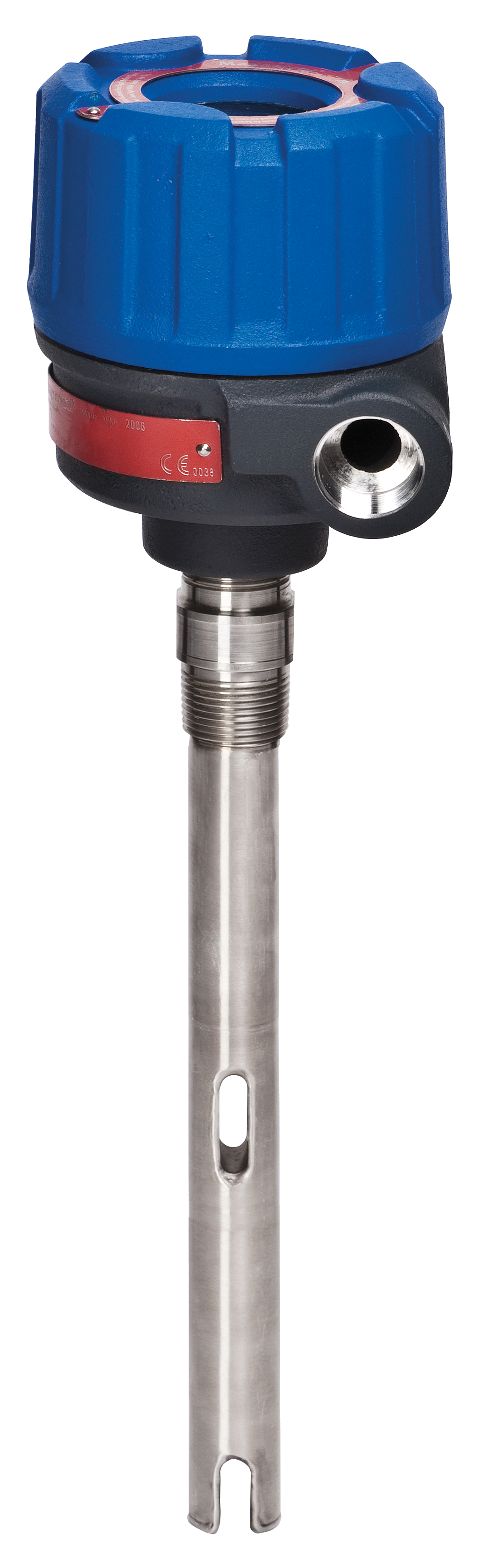

  • Echotel® 962 with threaded connection

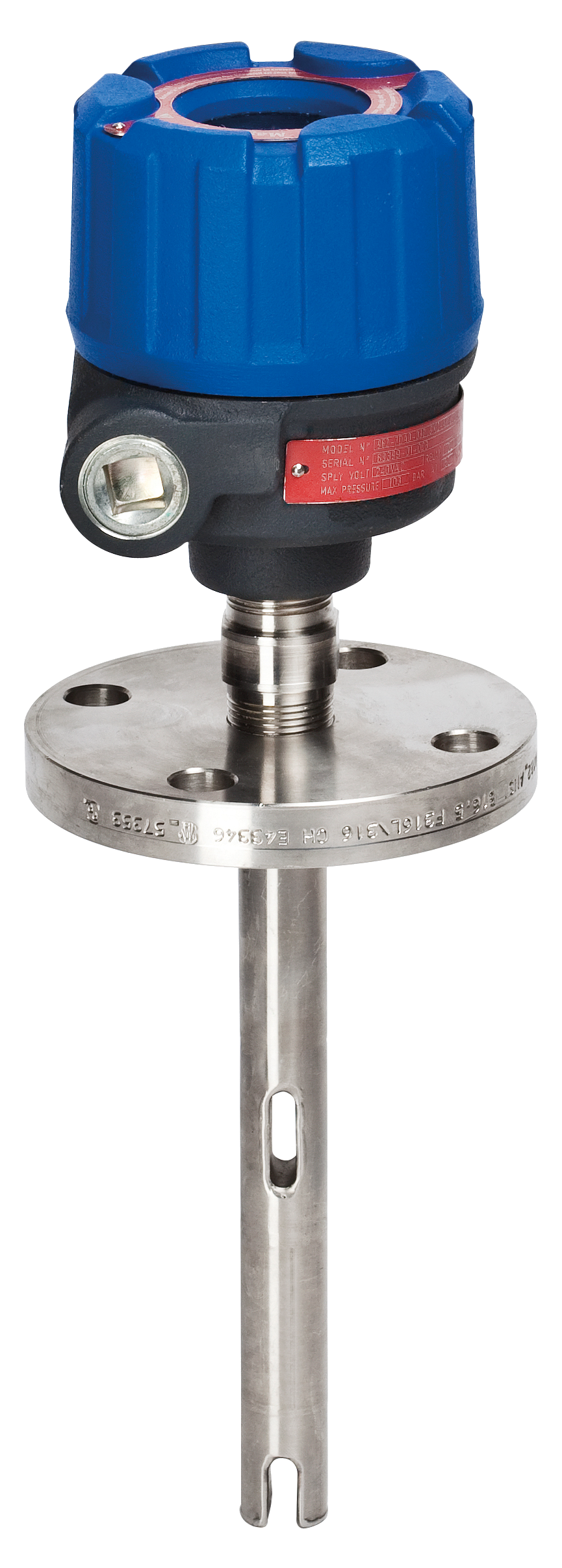

  • Echotel® 962 with flanged connection

Ultrasonic level transmitter Echotel® 961 and pump controller Echotel® 962.

Level switches Echotel® 961/962 work on the basis of ultrasonic detection of contact sensor with medium.

This measurement technology successfully works in applications where foam, heavy turbulence, aeration or suspended solids are present.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  • IECEx IECEx
  • INMETRO INMETRO
  1. Features
  2. Specification
  3. Downloads

  • Level switches Echotel® 961/962 work on the basis of  ultrasonic detection of contact sensor with medium.

    This measurement technology successfully works in applications where foam, heavy turbulence, aeration or suspended solids are present.

    Echotel® 961 has one sensitive tip at the end of the probe which allows the unit to be used as low or high level switch. Echotel® 962 has one sensitive tip at the end of the probe and gap in probe stem which allows the unit to work as level switch or pump control device during filling/emptying the vessel.

    Advantages

    • Insertion length: up to 3,3 m
    • Medium temperature: -80 to 165 °C
    • Maximum pressure: 138 bar
    • No calibration
    • 2 wire loop powered with 8/16 mA output or line powered with integrated relay output SPDT, DPDT
    • Continuous selftest with error indication
    • LED identification for: process alarm, error of transducer or electrical noise interference, wet/dry status of transducer
    • Push buttons for manual testing of alarm and error signals
    • Adjustable time delay up to 45 s
    • Metal and plastic transducers

    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX Ex i, Ex d
    • Process connection 3/4 BSPP male, 1 BSPP male, 3/4 NPT male, 1 NPT male, other
    • Sensor / wetted parts material 316/316L, Hastelloy, Monel, CPVC, Kynar® / PVDF
    • Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP66
  • `

    1. Magnetrol Echotel 961-962 Report FMEDA SIL

      812kb | ENG

    2. Magnetrol Echotel 961-962 Certificate IECEx Ex d

      148kb | ENG

    3. Magnetrol Echotel 961-962 Certificate ATEX Ex ia

      174kb | ENG

    4. Magnetrol Echotel 961-962 Certificate ATEX Ex d

      458kb | ENG

    5. Magnetrol Echotel 961-962 Datasheet

      1.3MB | ENG

    6. Magnetrol Echotel 961-962 User manual

      1.6MB | ENG

    7. Magnetrol Echotel 961-962 User manual line loop powered

      1MB | ENG

    8. Magnetrol Echotel 961-962 Line powered Manual

      1.1MB | ENG

    9. Magnetrol Echotel 961-962 User manual SIL

      193kb | ENG

    10. Magnetrol Echotel 961-962 Loop powered Manual DE

      1.3MB DE

    11. Magnetrol Echotel 961-962 Line powered Manual DE

      1.1MB DE

    12. Magnetrol Echotel 961-962 Datasheet DE

      1.4MB DE

    13. Magnetrol API 2350 Recommendations DE

      1.1MB DE

    14. Magnetrol API 2350 Recommendations EN

      6.2MB | ENG

Similar products

  1. Float switches

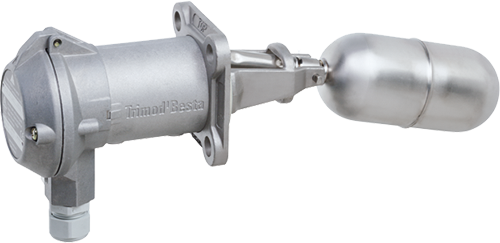

    I 01 041 Float switches

    Float switches with proximity siwtches acc. to NAMUR

    details

  2. Thermal dispersion switches

    Thermatel® TD1/TD2 Thermal dispersion switches

    Thermal dispersion switches of gas and liquid flow, liquid level and interface

    details

  3. Thermal dispersion switches with remote electronics

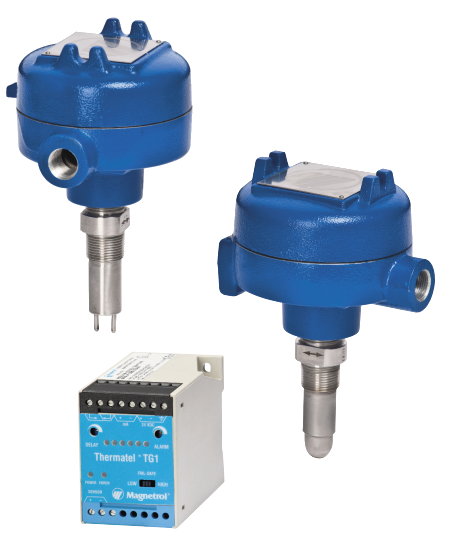

    Thermatel® TG1/TG2 Thermal dispersion switches with remote electronics
