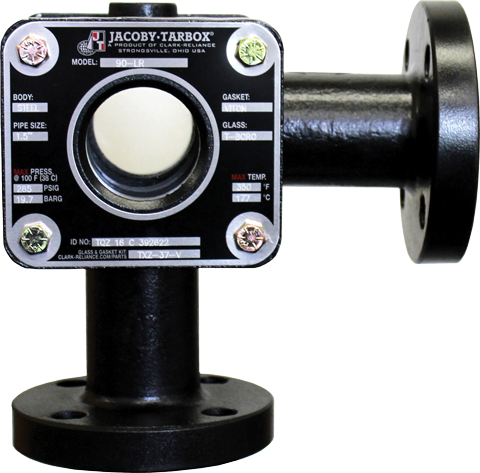

S-100, 910-FA Bulls-Eye Sight Flow Indicators

Clark-Reliance

Jacoby-Tarbox’s full ASME rated line of flanged bullseye sight flow indicators have been engineered per the design criteria of the ASME B31.1 & 31.3 Power & Chemical Piping Codes, incorporating only ASTM listed metals in the unit’s construction.

Approvals & certificates

PED
NACE

Jacoby-Tarbox’s full ASME rated line of flanged bullseye sight flow indicators have been engineered per the design criteria of the ASME B31.1 & 31.3 Power & Chemical Piping Codes, incorporating only ASTM listed metals in the unit’s construction.

Features
- out-of-box compliant to PED, ASME B31.1, B31.3, API 614 and NACE MR0175/MRO103
- flange connections up to DN200
- wetted parts: carbon steel, bronze, 316L stainless steel, Hastelloy, Duplex, Monel and other
- Variable flow
- Process connection flange, threaded
- Sensor / wetted parts material 316/316L, carbon steel, Hastelloy, Monel, Duplex
`
1. CR Jacoby-Turbax BullsEye Flanged Datasheet

  499kb | ENG
2. CR Jacoby-Turbax BullsEye Threaded Datasheet

  549kb | ENG
