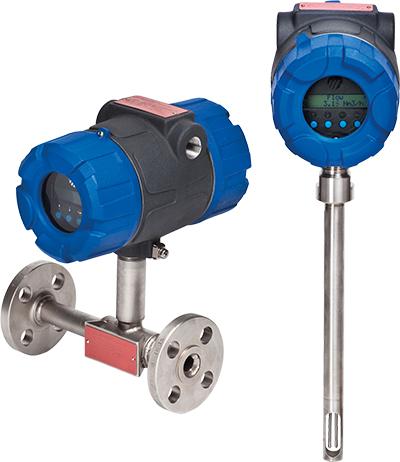

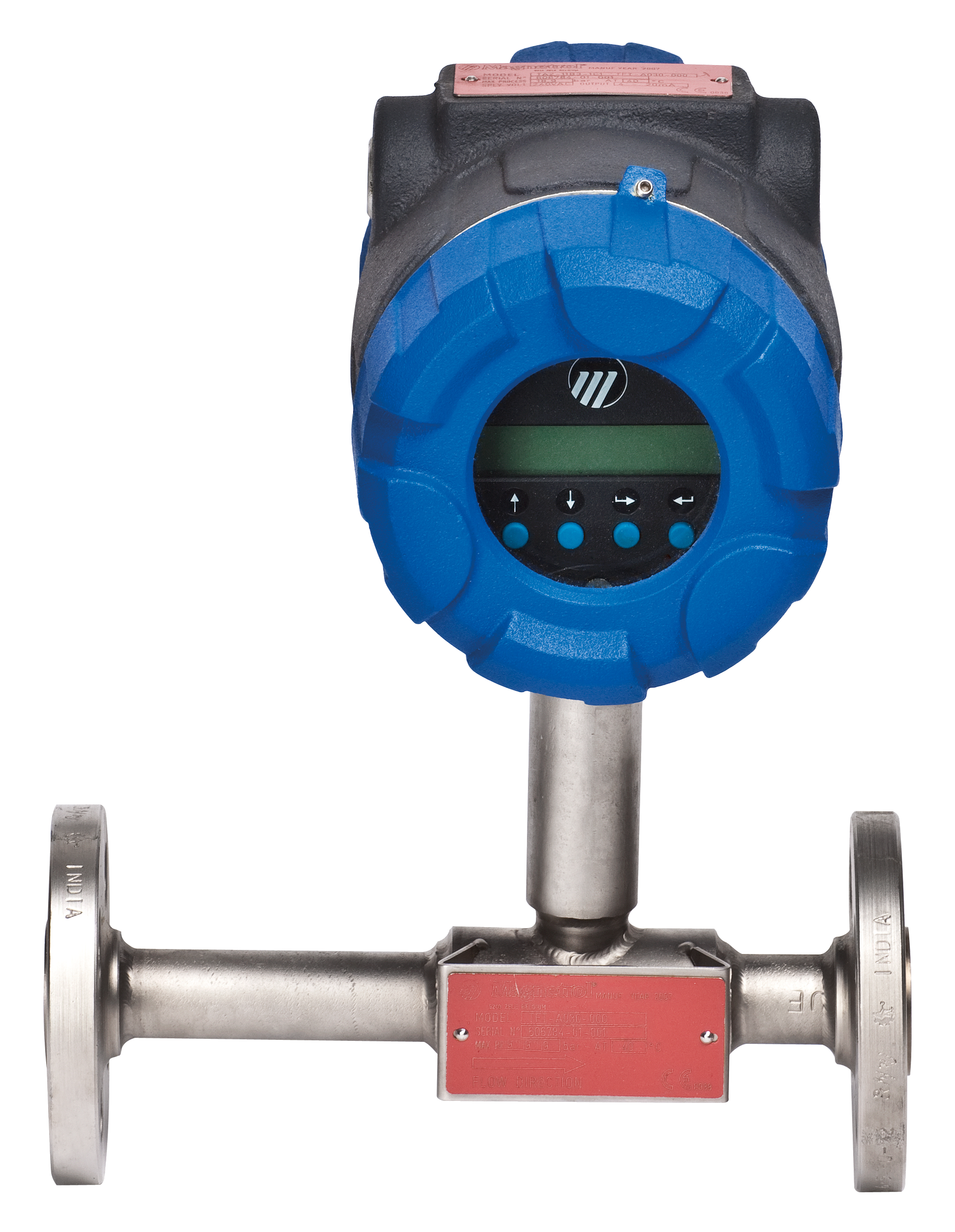

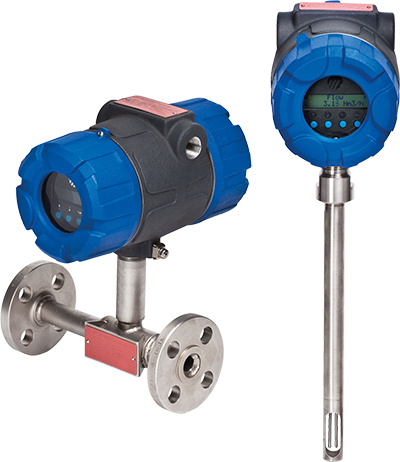

Thermatel® TA2 Thermal dispersion mass flow meter

Magnetrol International

Thermal dispersion gas mass flow meter in flameproof enclosure.

Thermatel® TA2 principle of operation is based on thermal dispersion technology consisting in maintaining constant temperature difference between reference RTD sensor measuring actual process temperature and heated sensor equipped with RTD.

Approvals & certificates

CE
ATEX Ex i
ATEX Ex d
EAC Ex
FM
IECEx
KOSHA
INMETRO
HART®

Flow transmitter Thermatel ® TA2 utilizes thermal dispersion technology for gas mass flow measurement .

Principle of operation is based on maintaining constant temperature difference between reference RTD sensor measuring actual process temperature and heated sensor equipped with RTD. Gas flow causes cooling of heated sensor in which to maintain constant temperature difference more power needs to be provided. The higher flow the more power needs to be provided to maintain constant temperature difference. Measurement of provided power level in respect to gas flow is converted by electronics to mass flow based on calibration curve.

Typical applications of Thermatel® TA2 are flow measurement for example: air, natural gas, biogas, nitrogen or hydrogen

Advantages

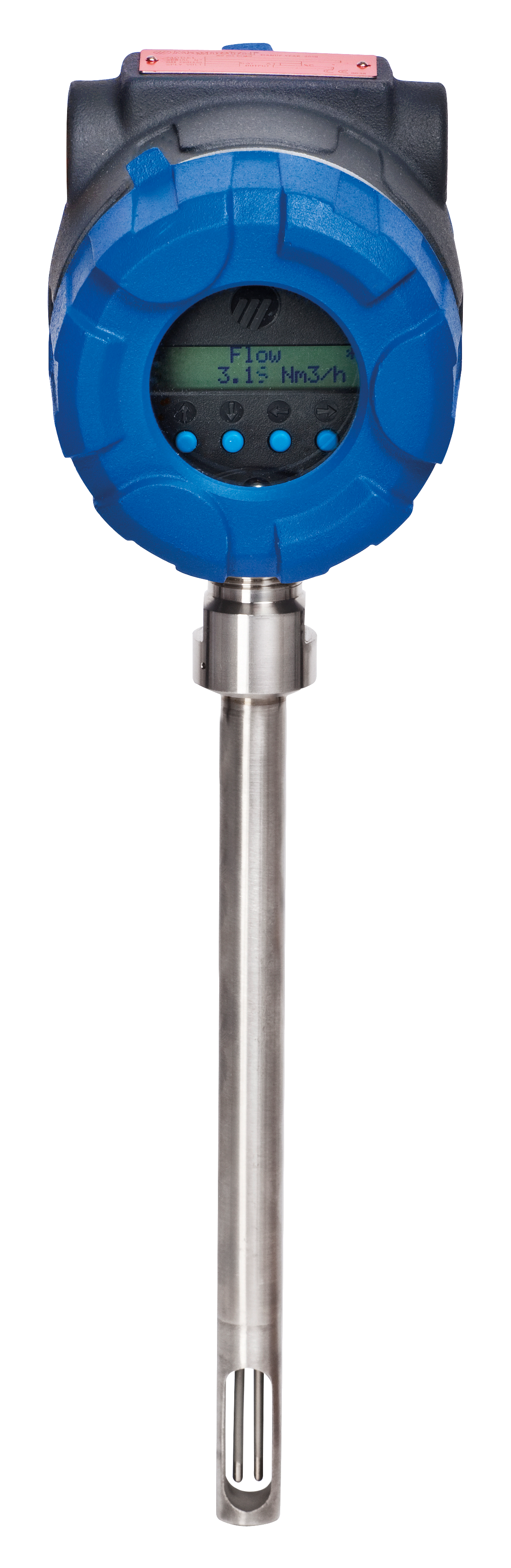

- Insertion length: up to 2,5 m
- Medium temperature: -45 do 200 °C
- Maximum pressure: 103 bar
- Direct mass flow measurement of air and gases
- Low pressure drop
- No need for temperature and pressure correction
- Turndown ratio 100:1
- Excellent low flow sensitivity
- Advanced diagnostics check condition of probe, electronics, and wiring
- Local LCD with programming buttons
- Ability to indicate actual and totalized flow, temperature and error messages
- Rotable housing
- Integral or remote electronics
- Ability to store calibration curves of two different gases
- Variable flow
- Output signal 4..20 mA analogue, pulse
- Digital communication HART®
- Accuracy 1,0%
- Repeatablity 0.5%, 1%
- ATEX Ex i, Ex d
- Local display yes
- Process connection 1 BSPP male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/2 NPT male, 2 NPT male, other
- Sensor / wetted parts material 316/316L, Hastelloy
- Power supply external 24 VDC, external 230 VAC
- Electrical connection M20x1.5 female, 3/4 NPT female
- Housing aluminum
- Ingress protection rating IP66
`
