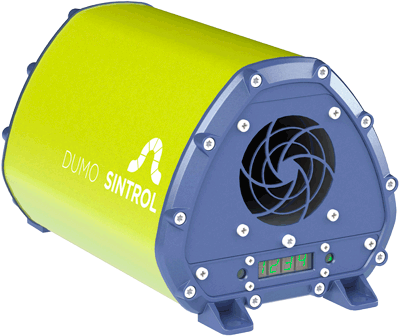

DumoPro Ambient dust monitors

Sintrol

Sintrol

Monitor zapylenia otoczenia DumoPro Sintrol

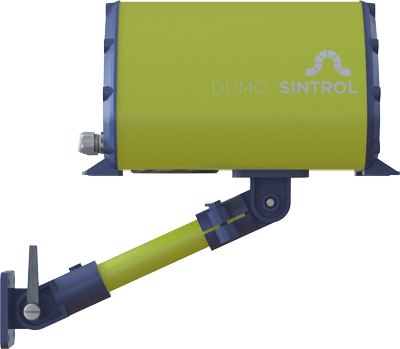

  • DumoPro Instllation

Low maintenance real-time monitoring of total suspended particles in industrial environments
Designed to industrial standards with built in failsafe features to increase reliability

Approvals & certificates

  • CE CE
  • ATEX Ex tD ATEX Ex tD
  1. Features
  2. Specification
  3. Downloads
  • Sintrol DumoPro is a powerful tool for measuring dust concentration in industrial environments because of its high sensitivity to total suspended particles. The field proven state-of-the-art measurement technology is tolerant to sensor contamination making it reliable in a wide variety of dust detection applications.

    DumoPro utilizes the Sintrol Inductive Electrification technology providing a wide measuring range.

    DumoPro has a standard 4–20 mA output which can be easily integrated into existing systems such as a PLC in the control room. DumoPro has “Alert” and “Alarm” functions corresponding to certain dust concentration levels above the normal ones identified by auto calibration feature. Early detection of dust leaks

    Applications

    • Workplace dust monitoring
    • Equipment and worker protection
    • Supports good housekeeping practice
    • Hazardous location supervision
    • Helps mitigate the risk of dust explosion
    • Features

      • sensitivity from 0.01 mg/m3
      • automatic calibration
      • automatic zero and drift compensation
      • particles size from 0.3 µm
      • two independent alarm outputs
      • 4..20 mA analogue output
      • easy setup with free DustTool software
      • local indication - LED and block display
      • RF models available
    • Variable dust
    • Output signal 4..20 mA analogue, VDC switch
    • Digital communication Modbus®, USB, RS-485
    • ATEX Ex tD
    • Sensor / wetted parts material 316/316L, PEEK
    • Power supply external 24 VDC
    • Electrical connection M20x1.5 female, leadwires
    • Housing epoxy coated aluminum, stainless steel
    • Ingress protection rating IP20, IP65
  • `
    1. Sintrol DumoPro Datasheet

      412kb | ENG

    2. MERCON Bulk solids Catalogue

      1.3MB | POL

    3. Sintrol DumoPro Manual

      5.2MB | ENG

    4. Sintrol application questionnaire S-Series and EXO EN

      444kb | ENG

Similar products

  1. Dust monitors

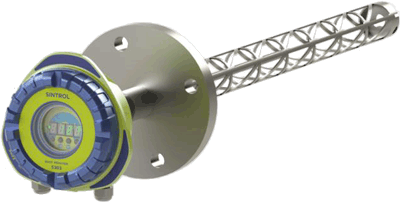

    E-Spy Dust monitors
