Vanguard WirelessHART® Gas Detectors

United Electric Controls

United Electric Controls

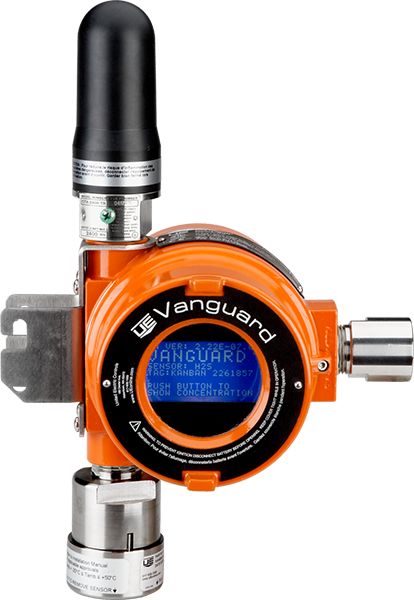

Detektor gazów łatwopalnych i toksycznych Vanguard United Electric Controls

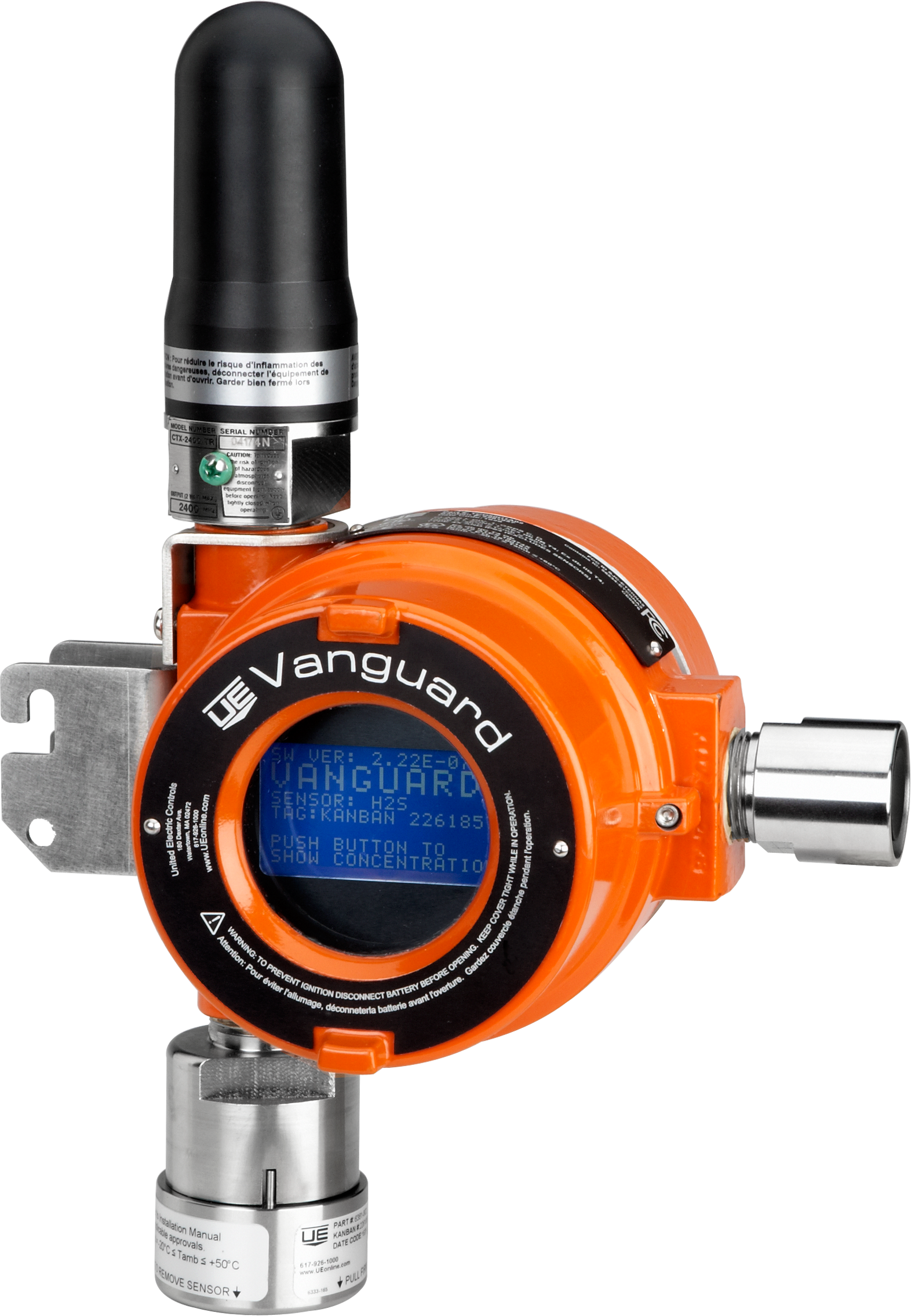

  • UE Vanguard

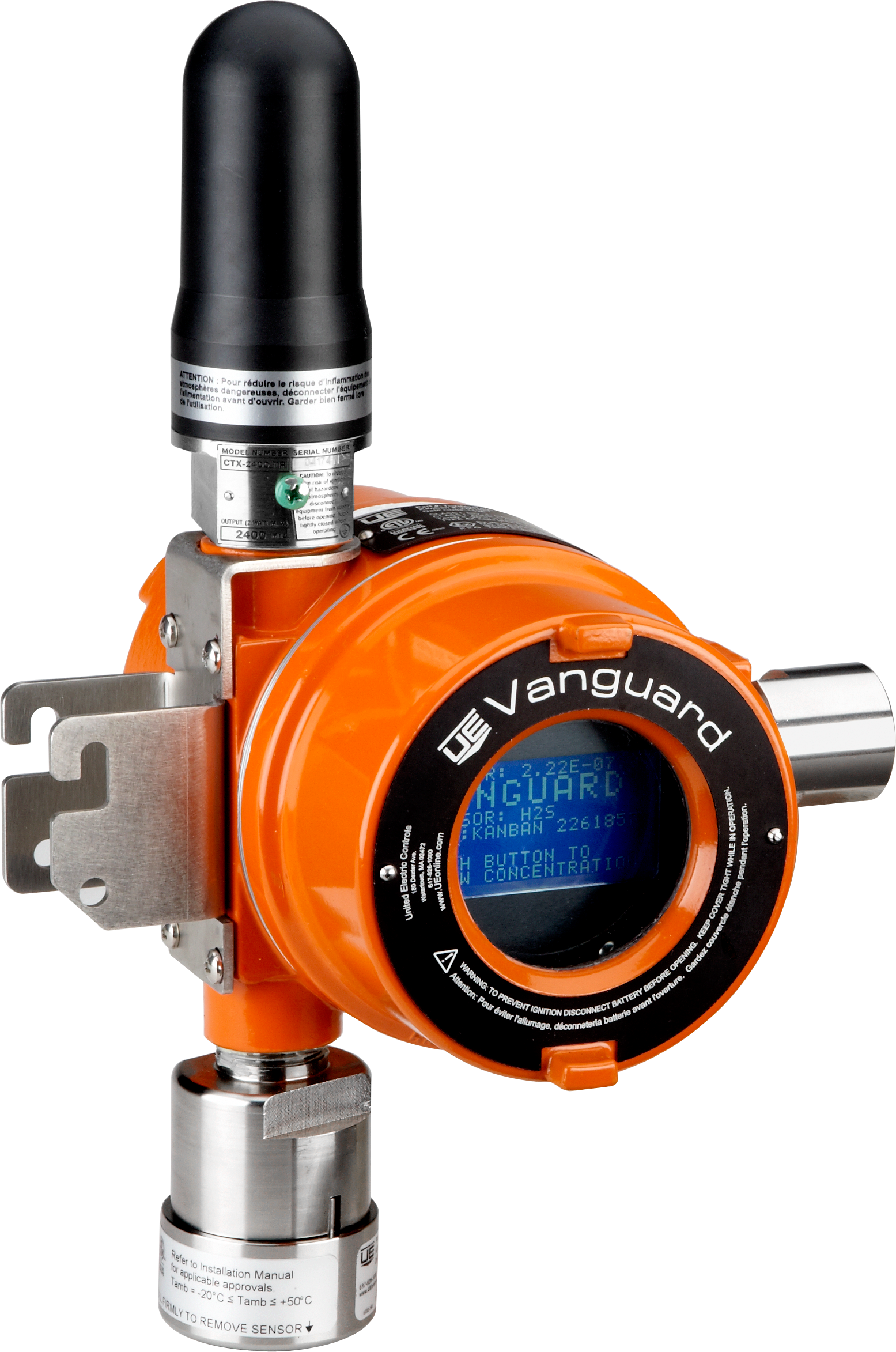

  • UE Vanguard side

The Vanguard WirelessHART® gas detector is ideal for the monitoring of toxic and combustible gases without the need for costly and fixed wiring. With a five year battery life and one button calibration, the Vanguard detector is easy to operate and maintain.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • IECEx IECEx
  • UL UL
  • HART® HART®
  1. Features
  2. Specification
  3. Downloads
  • ONE Series; Produkt des Jahres 20157 Control Engineering Polen

    Each Vanguard detector has a WirelessHART® transceiver, an antenna, a display, a long life power module, a gas sensor, and a signal processor for the gas sensor. Vanguard uses a sensor architecture trademarked “Flexsense”, which allows the sensor to identify its target gas and self-configure to a Vanguard transmitter upon connection.

    Vanguard monitors can substitute foot patrols that some companies use for periodical installation tightness verification. Also, thanks to wireless connectivity and unlike to other wire, expensive solutions available on market, Vanguard detectors can be mounted in hard to reach or peripheral locations where sensors have not been even considered before due to the cost. Mesh transmitters can be easily integrated with an existing protection system or can be designed and deployed from scratch.


    Advantages and benefits of using Vanguard monitors


    The Vanguard is currently available with following sensors:

    • hydrogen sulfide,
    • ammonia,
    • methane,
    • propane,
    • carbon monoxide.

    Wymiana sygnalizatora elektromechanicznego na elektroniczny serii ONE

    Vanguard combustible and toxic gases detector mounting


    Wymiana sygnalizatora elektromechanicznego na elektroniczny serii ONE

    Vanguard detector sensor mounting

    Features

    • 5+ year battery life
    • Wireless capability ​
    • Field interchangeable toxic and combustible gas sensors ​
    • Interoperable with existing WirelessHART networks and  asset management systems (AMS) ​
    • Easy calibration and operation ​
    • Heavy duty design with Class 1, Div 1 & 2 hazardous location approvals

    • Variable gas detection
    • Digital communication WirelessHART®
    • ATEX Ex i, Ex d
    • Local display yes
    • Sensor / wetted parts material 316/316L
    • Power supply battery
    • Housing aluminum
    • Ingress protection rating IP66
  • `
