S203 Dust monitors

Sintrol

Continuous trend monitor providing information about performance of the filtration systems and ducts over a period of time. Perfect for installation after any filtration system or in common line channels leading into the emissions points of a plant.

Ducts 700 mm or more, temperature up to 300°C, pressure up to 6 bar.

Approvals & certificates

The principle of operation of dust monitors is based on inductive electrification - measurement of the charge of dust particles transferred to the probe.

S203 monitors are used to control dust, e.g. bag filter breakage, efficiency of the filtration system or abnormalities in the combustion process. It differs from the S101 model with added 4..20 mA analog output, the possibility of using it in more demanding applications or ducts with larger diameters, but just like it is very easy to install and use thanks to the auto-calibration function and the possibility of changing parameters with shareware software.

Features
- sensitivity from 0.01 mg / m3
- automatic calibration
- detection of particles from 0.3 µm diameter
- 4..20 mA analog signal for dust trending
- two independent alarm relays (5 and 20 times exceeding the average dust level)
- adjusting levels of alarm and other settings using the dedicated DustTool software
- clear visual signaling with green, yellow and red LEDs
- maximum temperature: 300°C
- maximum pressure: 6 bar
- sensor length: 250 to 1000 mm
- process connection: clamp type or flange
- Variable dust
- Output signal 4..20 mA analogue, VDC switch, VAC switch
- Digital communication Modbus®, USB, RS-485
- Process connection flange, other
- Sensor / wetted parts material 316/316L, PTFE
- Power supply external 24 VDC, external 230 VAC
- Housing aluminum
- Ingress protection rating IP66
`
1. Sintrol S201 S203 Datasheet

  1MB | ENG
2. Sintrol application questionnaire S-Series and EXO EN

  444kb | ENG

Pressure

Liquid level

Liquid & gas flow

Valves

Solids level

Solids flow

Moisture

Dust monitors

Temperature

Thermography

Gas detection

Control

S203 Dust monitors

Approvals & certificates

Features

Sintrol S201 S203 Datasheet

Sintrol application questionnaire S-Series and EXO EN

Similar products

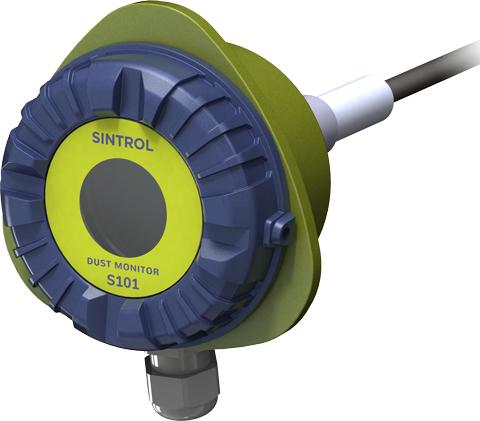

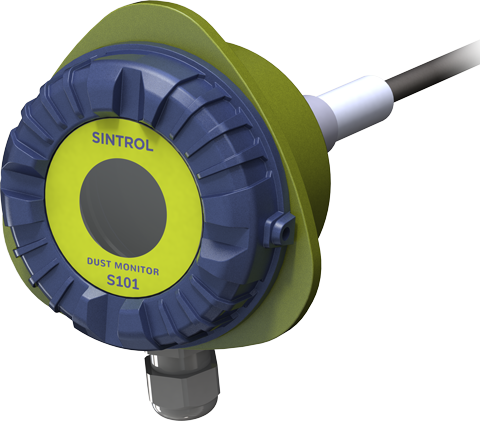

S101 Dust monitoring switches
