S303 Dust monitors

Sintrol

Sintrol

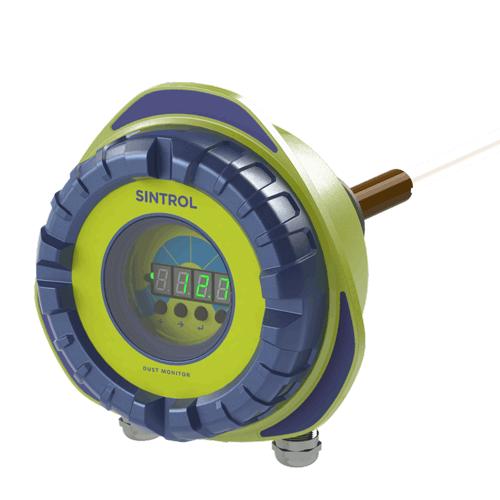

Pyłomierz do śledzenia trendu zapylenia S303 Sintrol

Continuous trend monitor that gives plant operators to see the performance of the filtration systems and ducts over a period of time. Perfect for installation after any filtration system or in common line channels leading into the emissions points of a plant.

State of the art Inductive Electrification principle minimizes the need for maintenance on the dust monitor and provides an accurate trend for end users. 4-20mA output combined with an easy to use auto-setup feature that takes less than 30 minutes from installation makes the device both convenient and reliable.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  1. Features
  2. Specification
  3. Downloads
  • S303 is continuous dust trend monitor. It that gives plant operators clear information about performance of the filtration systems and ducts over. It can be used in any filtration system or in common line channels leading into the emissions points of a plant. State of the art Inductive Electrification principle minimizes the need for maintenance on the dust monitor and provides an accurate trend for end users. 4-20 mA output combined with an easy to use auto-setup feature that takes less than 30 minutes from installation makes the device both convenient and reliable.

    Features

    • sensitivity from 0.01 mg/m3
    • automatic calibration
    • automatic zero and drift compensation
    • particles size from 0.3 µm
    • two independent alarm outputs
    • 4..20 mA analogue output
    • easy setup with free DustTool software
    • local indication - LED and block display
    • maximum temperature: 300°C (optionally 700°C)
    • maximum pressure: 6 bar
    • process connection: clamp or flanged
    • RF models available
    • Variable dust
    • Output signal 4..20 mA analogue, VDC switch
    • Digital communication RS-485
    • ATEX Ex i
    • Process connection other
    • Sensor / wetted parts material 316/316L, PTFE, PEEK
    • Seals Viton® / FKM / FPM
    • Power supply external 24 VDC, external 230 VAC
    • Housing epoxy coated aluminum
    • Ingress protection rating IP65
  • `
    1. Sintrol S303 S304 Datasheet

      258kb | ENG

    2. MERCON Bulk solids Catalogue

      1.3MB | POL

    3. Sintrol application questionnaire S-Series and EXO EN

      444kb | ENG
