G3 Microwave Gladiator microwave switches

Hawk

Hawk

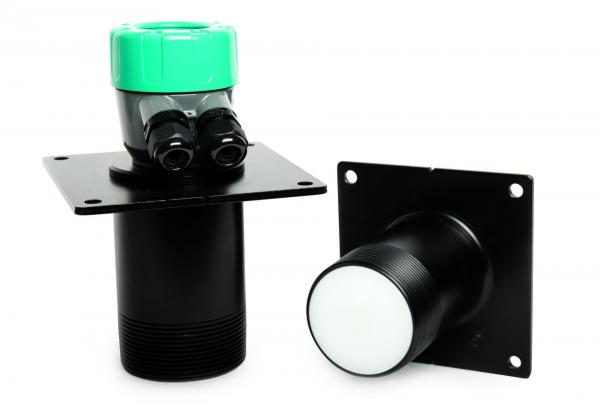

Mikrofalowy sygnalizator poziomu Gladiator Gen 3 Hawk

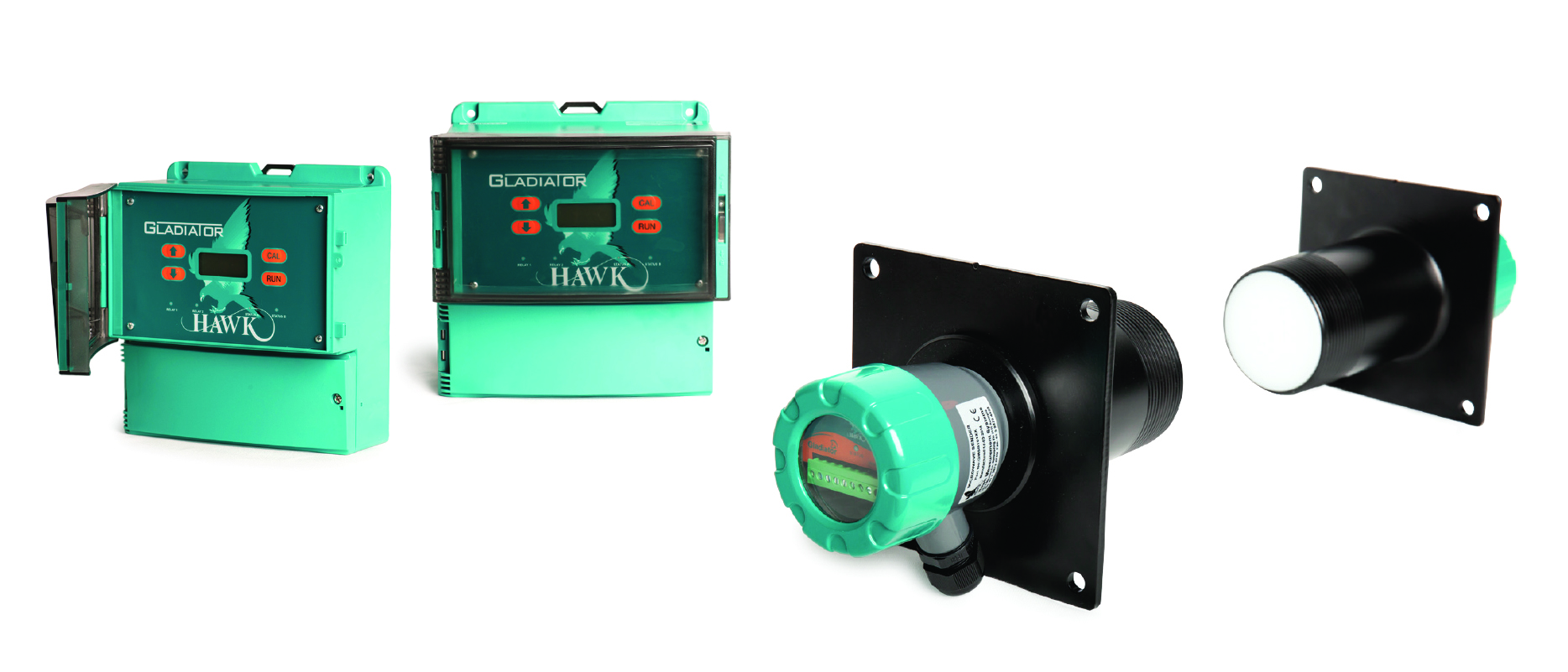

  • Gladiator Gen 3 microwave level switch

Microwave switches suitable for applications where non-contact level signalization is required.

The Gladiator Microwave Switch can be used for blockage detection, barrier detection, machine detection and point level measurement, and detection of objects or material between two points.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • IECEx IECEx
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Applications
  4. Downloads
  • Principle of operation:

    A high power circular polarized Microwave pulse is emitted from the Sending unit to the Receiving unit in a transmission chain of approximately 200 pulses per second. If the path between the Sender and Receiver is blocked by any object or material which absorbs or reflects microwave energy the Receiving unit will no longer detect the complete transmission chain and indicate via Relay for automatic indication and process control requirements.

    Features:

    • State of the art circular polarisation
    • Simple sensitivity adjustment and calibration
    • Maximum range up to 1200 m
    • Simple ‘1-minute’ setup application presets
    • Relay outputs: Integral (1 + failsafe)
    • Remote test function
    • Adjustable ON and OFF delays (0-20 sec)
    • Remote 3G Hawklink connection option
    • Bright visual status indication on sensors
    • Independent housing alignment after mounting sensor
    • Variable level
    • Output signal 4..20 mA analogue, VDC switch, VAC switch, PNP / NPN
    • Digital communication Modbus®
    • ATEX Ex i
    • Process connection other
    • Sensor / wetted parts material PTFE
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP65, IP66, IP67
  • `
    1. Hawk Short form catalogue

      12MB | ENG

    2. Hawk Gladiator G3 microwave switch Datasheet

      7.7MB | ENG

    3. Hawk Gladiator G3 microwave switch Manual

      12MB | ENG

    4. Hawk Gladiator G3 microwave switch CE Declatarion

      169kb | ENG

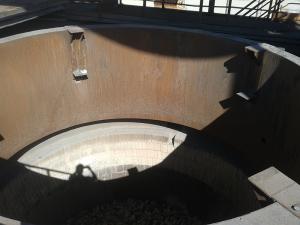

    1. Level measuring through lime kiln's ceramic wall

      Level measuring through lime kiln's ceramic wall

      Level measurement in a lime kiln is difficult due to the high temperature of 1000°C inside it. Because of that isotopic measurements are often used, but the use of radioactive sources is associated with law restrictions and hindered maintenance. The solution is Gladiator microwave level switch. Its signal penetrates easily the firebrick wall.

      details

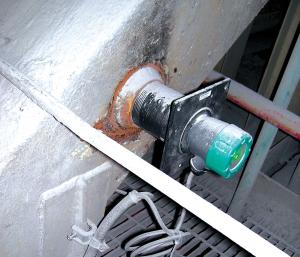

    2. Predictive maintenance - chute blokage prevention

      Predictive maintenance - chute blokage prevention

      Microwave Switches are traditionally used as Blocked Chute switches. All the Microwave switches available in the market tells you that the chute is blocked. Some switches can give a false alarm and trip because of build up on the chute walls. This causes lot of downtime to the site costing them valuable time and money. Hawks' Microwave switch Gladiator Gen 3 thanks to strong signal can work while other similar switches fails. Its other advantage is secondary alarm switch that can be set for material build up alarming.

      details
