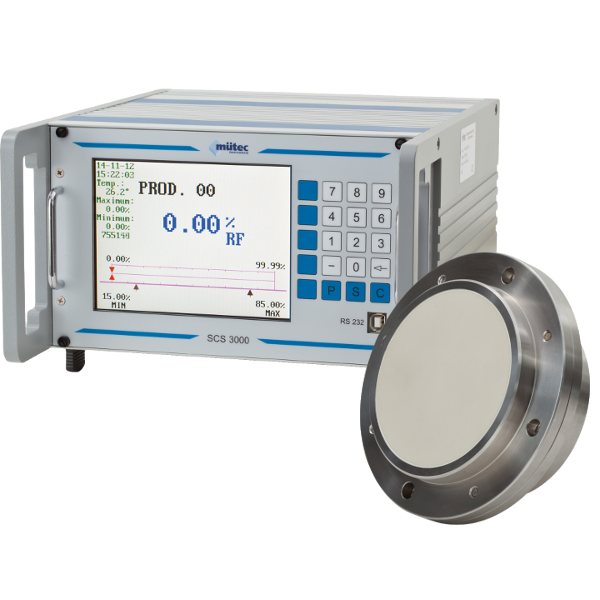

HUMY 3000 Moisture monitors for solids
Mütec Instruments
In-line moisture measurement is also possible in batch processes. The fast measuring process with a high resolution allows a quick and easy calibration and accuracy of up to 0.1%. In addition to an automatic temperature compensation and ageing drift, the self-monitoring device also has an integrated data logger, digital output and alarm outputs, and much more. For product- or process changes, different parameters can be stored for up to 24 products or product groups.
Approvals & certificates
-
CE
-
ATEX Ex i
-
- No samples necessary for the laboratory
- Energy savings during drying
- For automatic humidifying
- Simple, fast and affordable installation and calibration
- Very short pay-back periods
Improvement of product quality

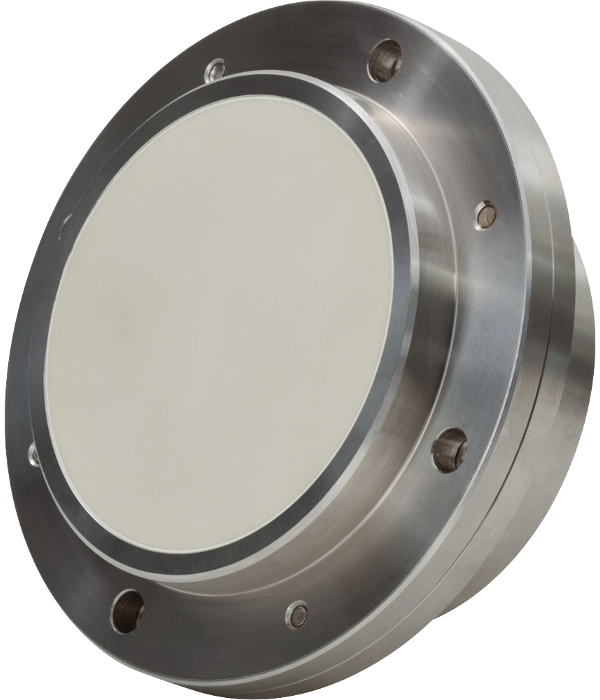

- High level of operational reliability thanks to sturdy probe
- Continuous monitoring and reporting with integrated data logger
- High measurement speed and selective sensitivity
- More than 0.1% accuracy (depending on the product)
- Optional ATEX-Version for zone 20 and zone 0
- No samples necessary for the laboratory
-
- Variable moisture
- Output signal 4..20 mA analogue, VDC switch
- Digital communication Modbus®
- Accuracy 0.1%
- Local display yes
- Sensor / wetted parts material 304, PTFE, ceramic, POM
- Power supply external 24 VDC, external 230 VAC
- Housing aluminum
