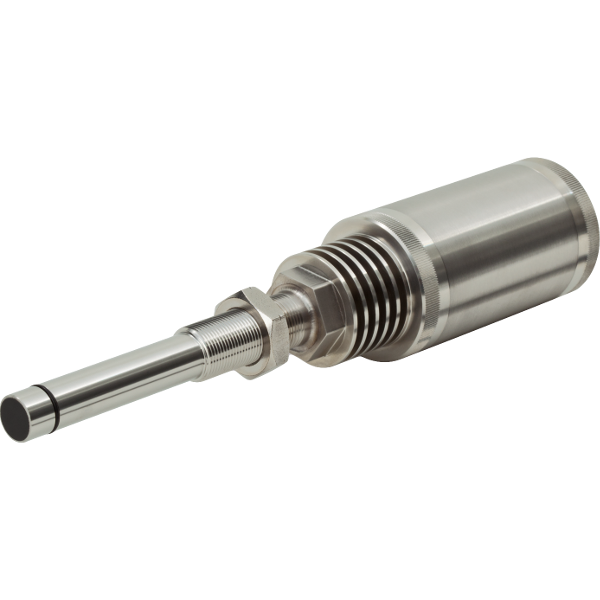

MF3000 Mass flowmeters for solids

Mütec Instruments

Mütec Instruments

Przepływomierz masowy materiałów sypkich MF 3000 Mütec

The MF 3000 is equipped with the newest microwave technology and is used to measure the flow of quantities of solids in metallic pipes. All powders, dust, pellets and granules can be measured reproducibly, from a few kg/h up to several t/h.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  1. Features
  2. Specification
  3. Applications
  4. Downloads

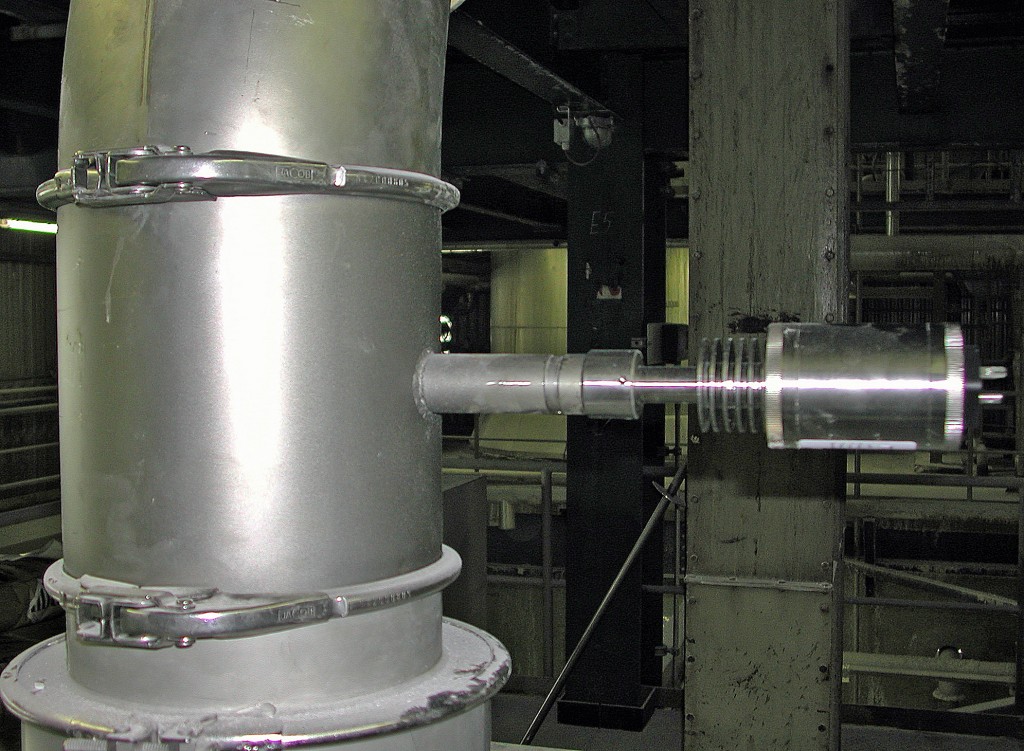

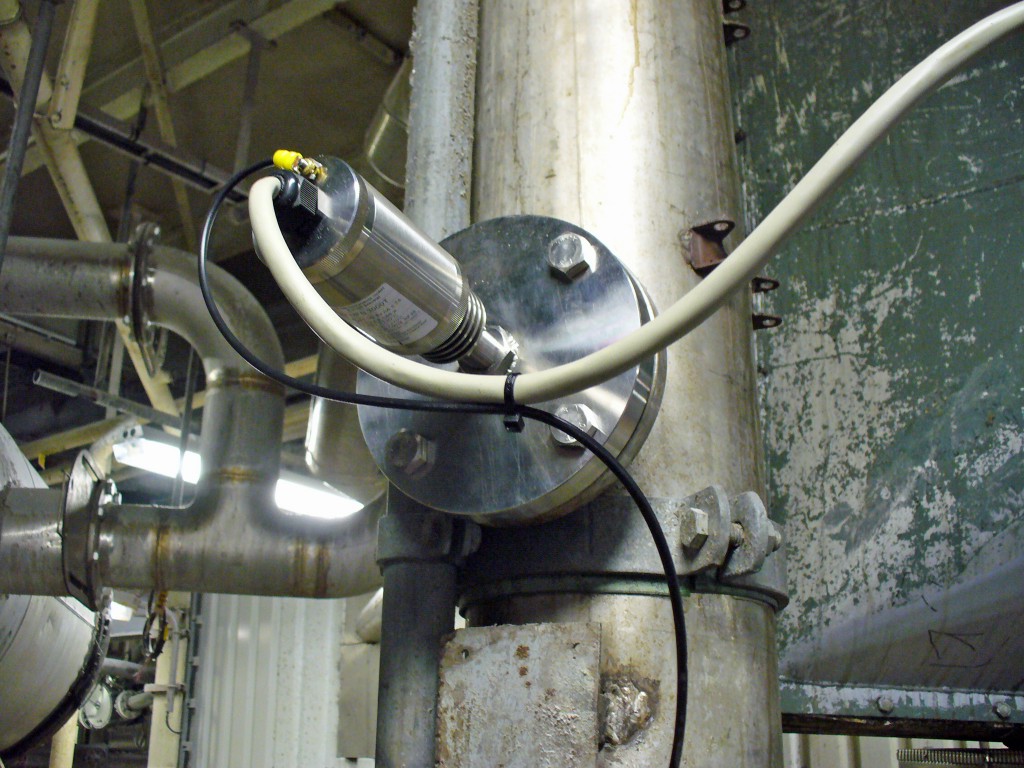

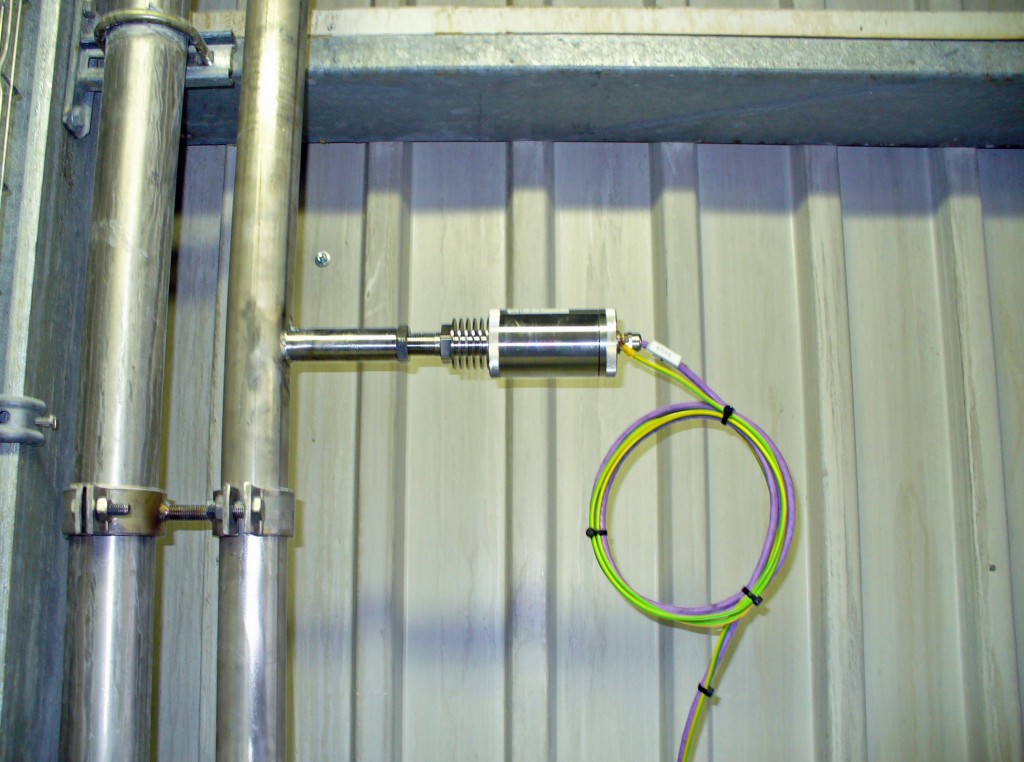

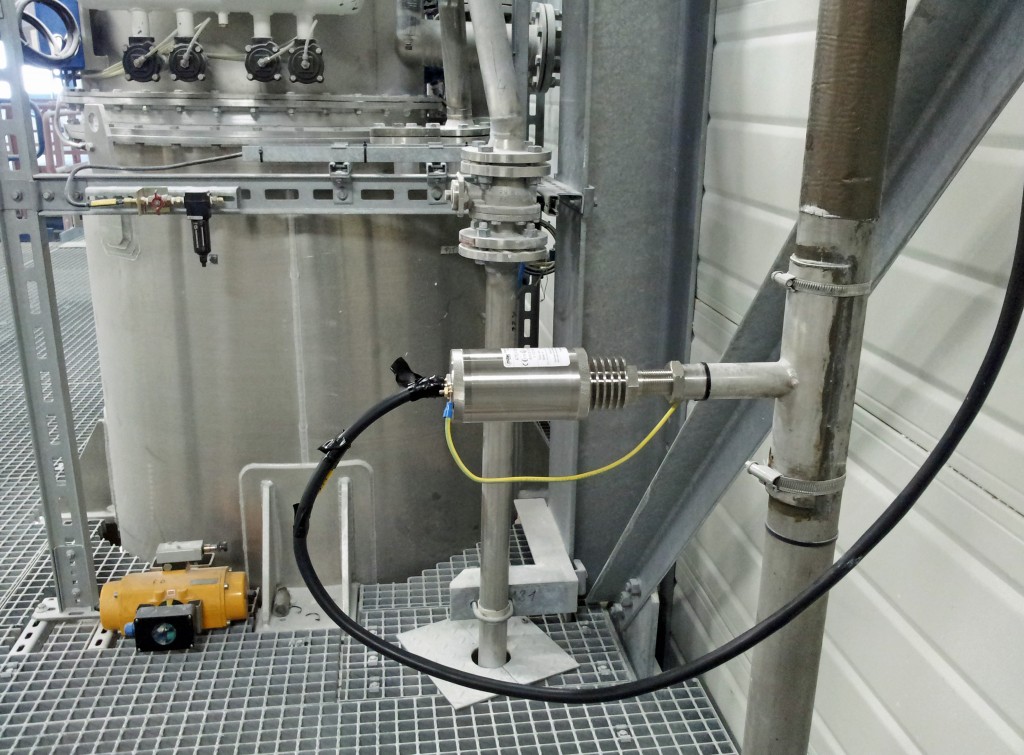

  •  The MF 3000 is suitable for inline measurements in pneumatic pipelines or in free-fall. The measurement process of the MF 3000 is based on the physical principle of the Doppler Effect. The mass flow-rate is determined by evaluating the frequency and amplitude changes during the measurement process. Resting particles, such as deposits, do not influence the measurement.

    • For all pneumatic conveying and free-fall processes
    • For all bulk materials, from a few kg/h to several t/h
    • IN-LINE measurement without weighing
    • No fittings in the pipe; flush interior installation
    • Simple, low-cost installation & start-up
    • Adjustable sensitivity for very small and very large pipe diameters
    • Galvanic separated RS485 interface for PLS connection
    • Independent of static charging
    • Limit-value monitoring with alarm output
    • Sturdy, stainless-steel construction, abrasion- and maintenance free
    • MF3000-D for high pressure
    • MF3000-T for high temperatures
    • ATEX-Version for zone 20 and zone 2

    • Variable flow
    • Output signal 4..20 mA analogue
    • Digital communication Modbus®
    • ATEX Ex i
    • Power supply external 24 VDC
  • `
    1. Muetec MF3000 Datasheet

      923kb | ENG

    2. Muetec MFS-3000-T / MFS-3000-K ATEX Certificate

      962kb | ENG

    3. MERCON Bulk solids Catalogue

      1.3MB | POL

    4. Muetec MF3000 Application questionnaire

      881kb | POL ENG

    5. Muetec MF3000 Manual

      1.9MB | ENG

    6. Muetec MF3000 Manual Ex

      2MB | ENG

    7. Muetec MF3000 Instrukcja

      1.2MB | POL

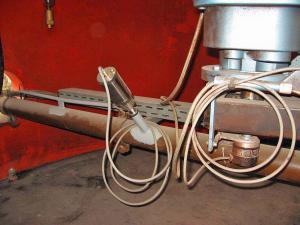

    1. Coal dust dosing in dust firing systems

      Coal dust dosing in dust firing systems

      Coal dust firing systems requires the proper mixture of coal dust and air. It must be controlled in real time to keep most effective combustible conditions. The solution is microwave mass transmitter MF 3000.

      details

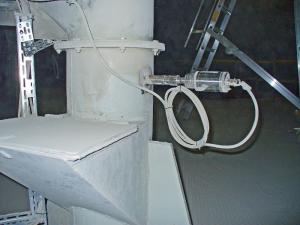

    2. Cement mass flow measurement

      Cement mass flow measurement

      Weighing systems are not always the best solution for controlling and dosing. There are not so many solutions for measuring solid materials in contrast to wide variety of devices measuring liquids. Interesting mass flowmeter for bulk materials is MF 3000 microwave transmitter.

      details
