KVT Ball segment valves

SOMAS Instrument

SOMAS Instrument

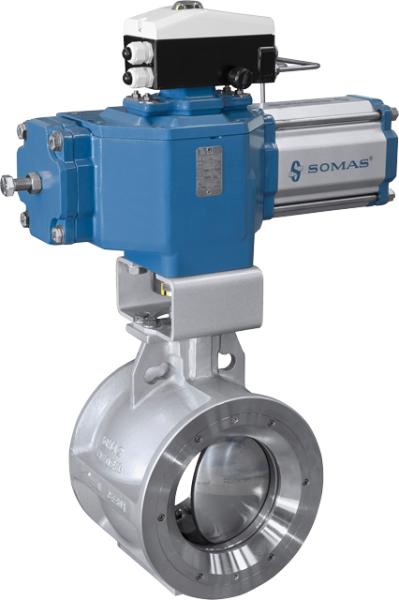

Zawór kulowy segmentowy KVTW Somas

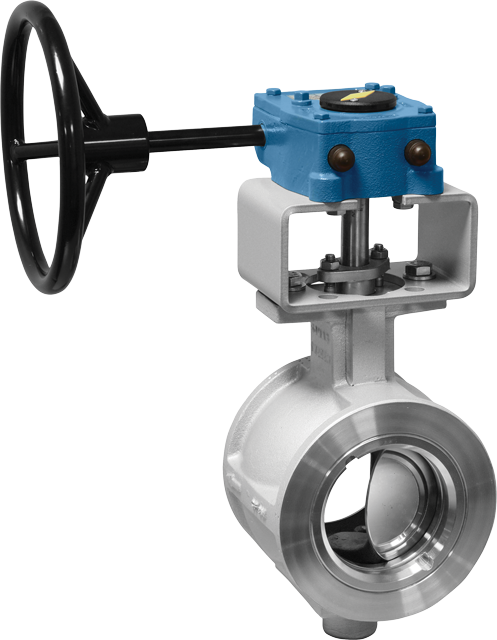

  • KVTW ball segment valve with manual gear

Ball segment valves type KVT with a centrically mounted shaft, and KVX with an eccentrically mounted shaft are of wafer design. Commonly used for liquids, media containing impurities, steam and other gases control or shut-off. Available sizes from DN25 to DN600, nominal pressure 40 bar.

Approvals & certificates

  • PED PED
  • CE CE
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads
  • Ball segment valves type KVT with a centrically mounted shaft, and KVX with an eccentrically mounted shaft are of wafer design. Type KVTF is a flanged version with centrically mounted shaft while KVXF is a flanged and eccentric design. The valves in this data sheet are of top entry design.

    Short face to face dimension, low weight and small space requirement make the installation of the these valves very easy. Unique shaft device is designed for torque transmission and gives backlash-free operation with accurate control. The shaft is guided in the valve body and stuffing box sleeve.

    The spring loaded seat is available in PTFE, PTFE 53 and HiCo. The valves can be used for control, as well as for shut-off applications on practically every type of media within a wide temperature range. Choose KVT/KVTF for liquids, media containing impurities etc. For dry and clean media choose KVX/KVXF. In the KVX/KVXF valve the ball segment is eccentrically mounted and rotates out from the seat when the valve is opened. This reduces the wear on seat and segment.

    Features

    • one-piece body design
    • nominal size: DN25 to DN600
    • nominal pressure: up to 40 bar
    • wafer (KVTW, KVXW) or flange (KVTF, KVXF) type
    • valve material: CF8M/1.4408 or 1.4409
    • seat material: HiCo, FGR PTFE
    • leakage class: IV-S1, V, VI
    • Variable flow
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™, WirelessHART®
    • Process connection flange, welding ends, threaded, DIN flange, ANSI flange
    • Seals PTFE, metal-to-metal
  • `
    1. MERCON Valves Catalogue

      1.2MB | POL

    2. Somas KVT KVX KVTF KVXF Datasheet

      553kb | ENG

    3. Somas KVTF KVXF Datasheet

      444kb | ENG

    4. Somas KVTFC KVXFC Datasheet

      554kb | ENG

    5. Somas KVTW KVXW KVTF Low Noise Datasheet

      251kb | ENG

    6. Somas KVTWA KVXWA Datasheet

      647kb | ENG

    7. Somas Valve Guide EN

      4.6MB | ENG

Similar products

  1. Ball segment valves

    KVT LN Ball segment valves

    Low noise on-off and control valves for liquids, steam and gases; DN50-400, PN20-50

    details
  2. Butterfly valves

    VSS Butterfly valves

    Tripple eccentric disk design with metal seat; nominal pressure up to 100 bar, temperature 500°C

    details
  3. Butterfly valves

    MTV Butterfly valves

    Tripple eccentric disk design with metal seat; nominal pressure up to 25 bar, temperture 350°C

    details
