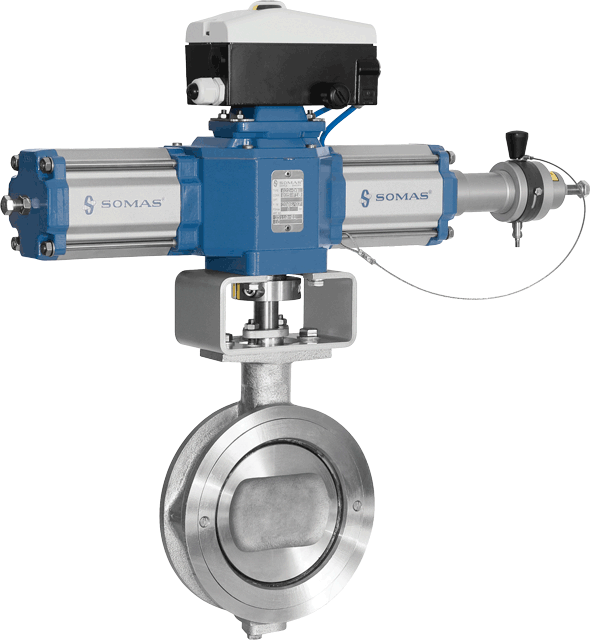

MTV Butterfly valves

SOMAS Instrument

SOMAS Instrument

Przepustnica regulacyjna MTV Somas

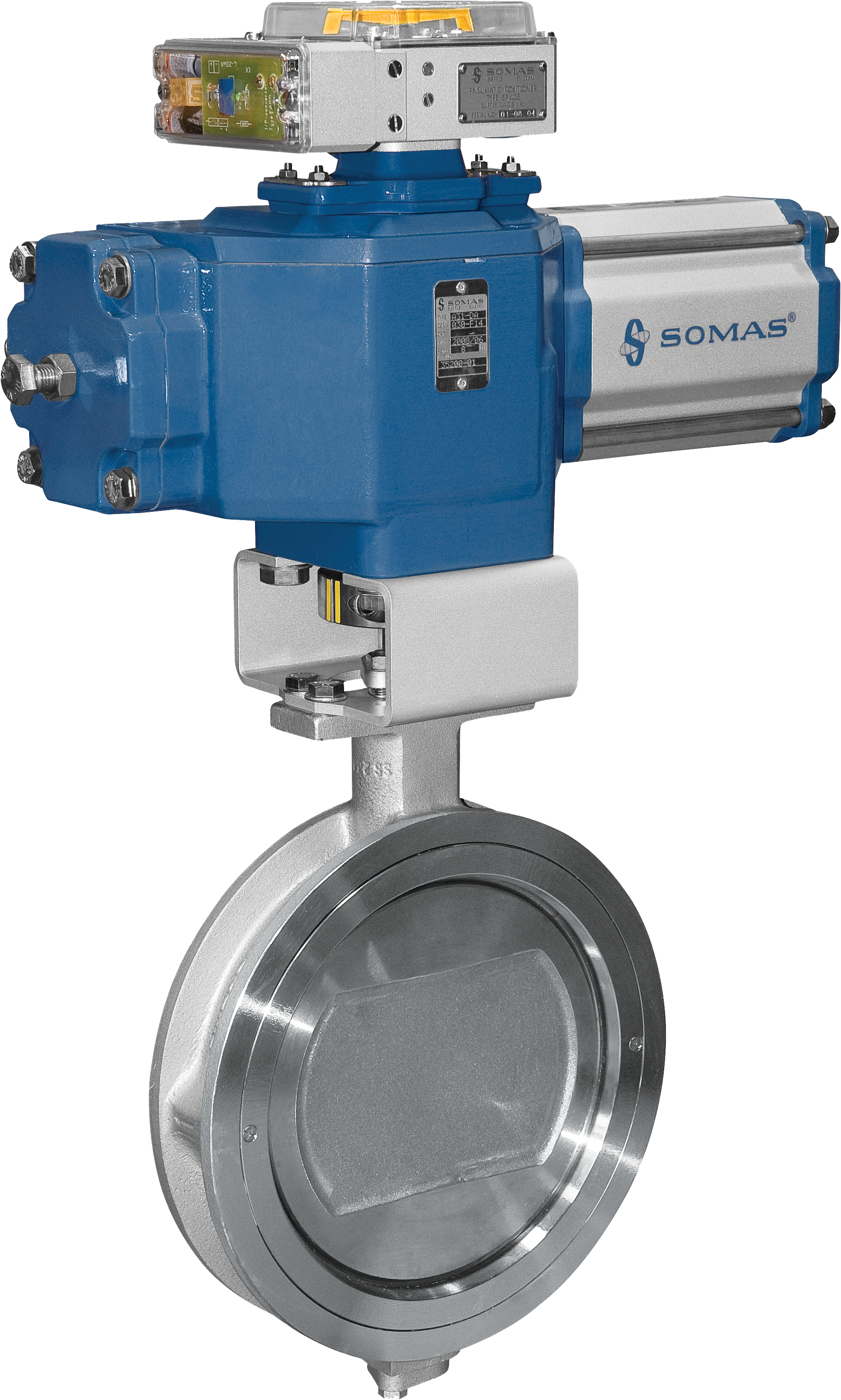

  • DN250 butterfly valve MTV

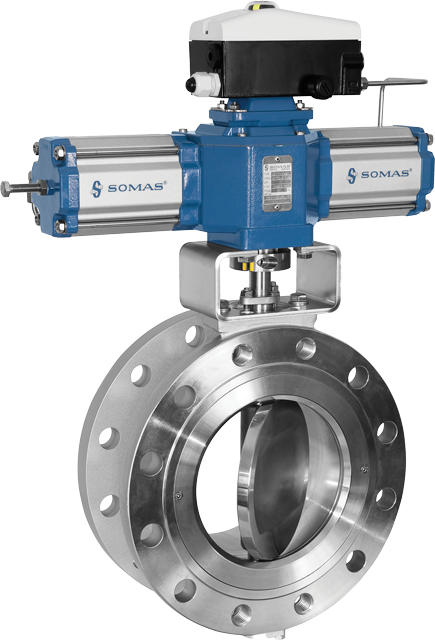

  • DN200 flanged butterfly valve MTVF

MTV butterfly valves with tripple eccentric disc and metal seat provides excellent tightness in high velocity applications. Typical application is steam, gas and liquids. Standard allowed temperature is up to 350°C.

Approvals & certificates

  • CE CE
  • PED PED
  • EAC Ex EAC Ex
  • BV BV
  • LR LR
  1. Features
  2. Specification
  3. Downloads
  • SOMAS butterfly valves type MTV, MTVF and MTVL, are control, on/off and shut-off valves. The valves were designed to handle a wide range of liquids, gases and steam within a broad temperature range. The MTV valve can be mounted between flanges and also supplied in lugged design as MTVL type. The MTVF valve type is a full flanged butterfly valve. The valves have an advanced triple eccentric design including a unique shape of the disc allows the use of a solid stainless steel seat. The solid seat remains un-affected by high flow velocities and temperatures. A good valve function is achieved even on difficult applications.

    Features

    • tripple eccentric disc
    • nominal size: DN80 to DN500
    • nominal pressure: up to 25 bar
    • nominal temperature: up to 350°C
    • wafer (MTV), flanged (MTVF) or lugged (MTVL) models
    • body/disc material: CF8M/1.4408
    • seat material: metal or PTFE
    • leakage class: V, VI
    • optional "Fire Safe" make
    • Variable flow
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™, WirelessHART®
    • ATEX Ex i
    • Process connection flange, DIN flange, ANSI flange
    • Seals PTFE, metal-to-metal
  • `
    1. MERCON Valves Catalogue

      1.2MB | POL

    2. Somas MTV FSV Instruction manual

      3.6MB | ENG

    3. Somas MTV MTVF MTVL Datasheet

      1.5MB | ENG

    4. Somas Valve Guide EN

      4.6MB | ENG

Similar products

  1. Ball segment valves

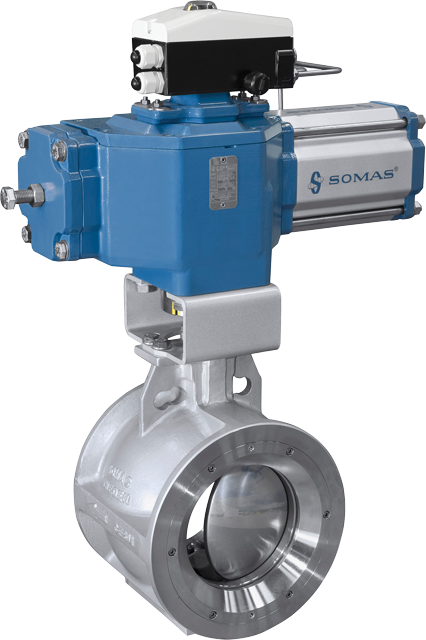

    KVT Ball segment valves

    High capacity control and shut-off valves for liquids, steam and gases; DN25-600, PN40

    details
  2. Butterfly valves

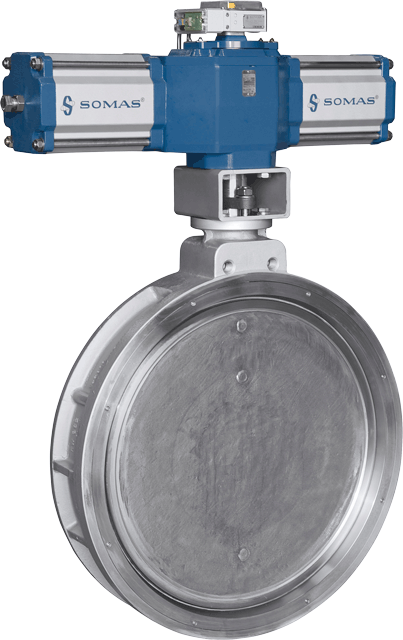

    VSS Butterfly valves

    Tripple eccentric disk design with metal seat; nominal pressure up to 100 bar, temperature 500°C

    details
  3. Ball segment valves

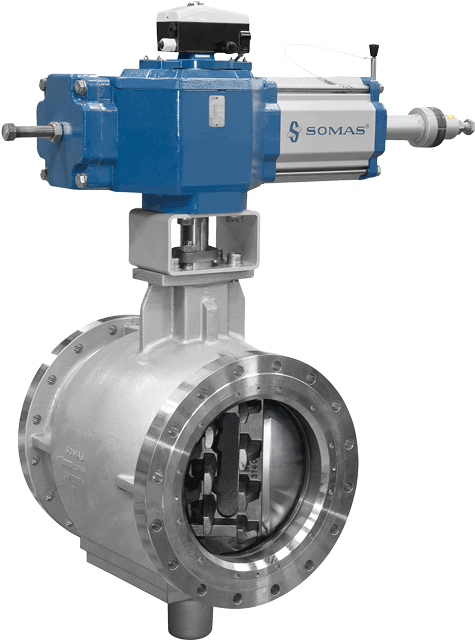

    KVT LN Ball segment valves

    Low noise on-off and control valves for liquids, steam and gases; DN50-400, PN20-50

    details
