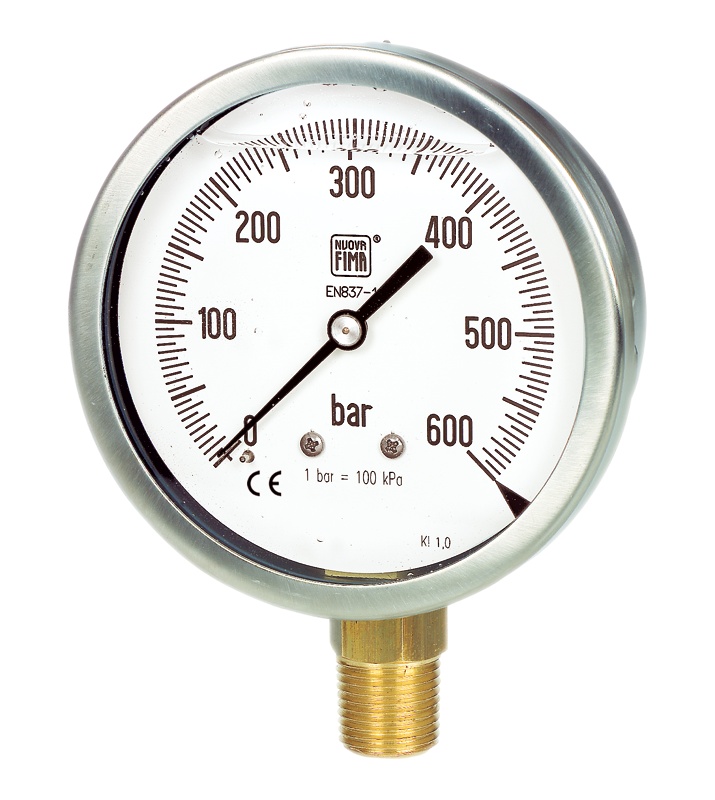

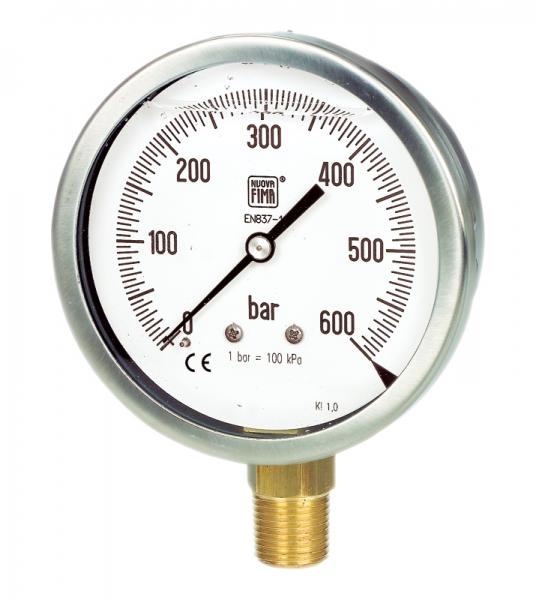

MGS10 Standard pressure gauges

Nuova Fima

Reinforced construction of the measuring system, allows the use this gauges in applications such as machine.
- pump
- Diesel engines
- turbines
- compressors

Approvals & certificates

CE
PED
EAC Ex

Pressure gauges designed for use where there is a pulse pressure and the associated vibration.

Application:
Power generators

Pumps

Turbines

Engines

Compressors

Cleaning equipment with water

Chemical plants and petrochemical
Features:
Chemical and petrochemical plants

Mechanism of measurement: Bourdon tube

Measuring range: -1 ... 0 bar, 0..1000 bar

Use for non-crystallizing or low viscosity medium

Available dry or filled with glycerin or silicone oil

Ambient temperature: -40..65 deg. C

Maximum process temperature: 120 deg. C (dry gauge), 65 deg. C (filled pressure gauge)

Vibration, pulsation and shock resistant
- Variable pressure
- Output signal none
- Accuracy 1.6%
- ATEX none
- Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male
- Sensor / wetted parts material brass
- Housing stainless steel
- Ingress protection rating IP67, IP55
`
1. NF MGS10 Datasheet

  83kb | ENG
2. NF MGS10 Manual

  204kb | ENG
