STW Welded diaphragm seals

MERCON

MERCON

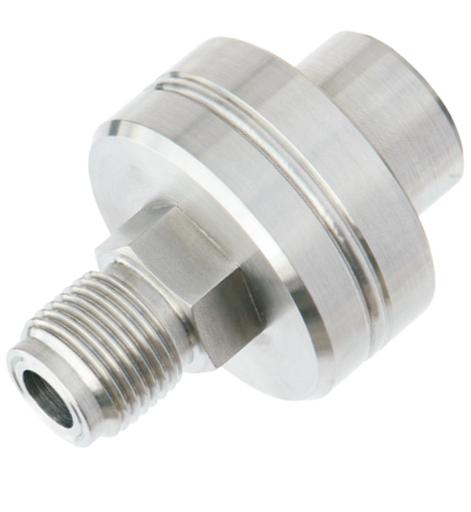

Gwintowy separator membranowy MERCON STW

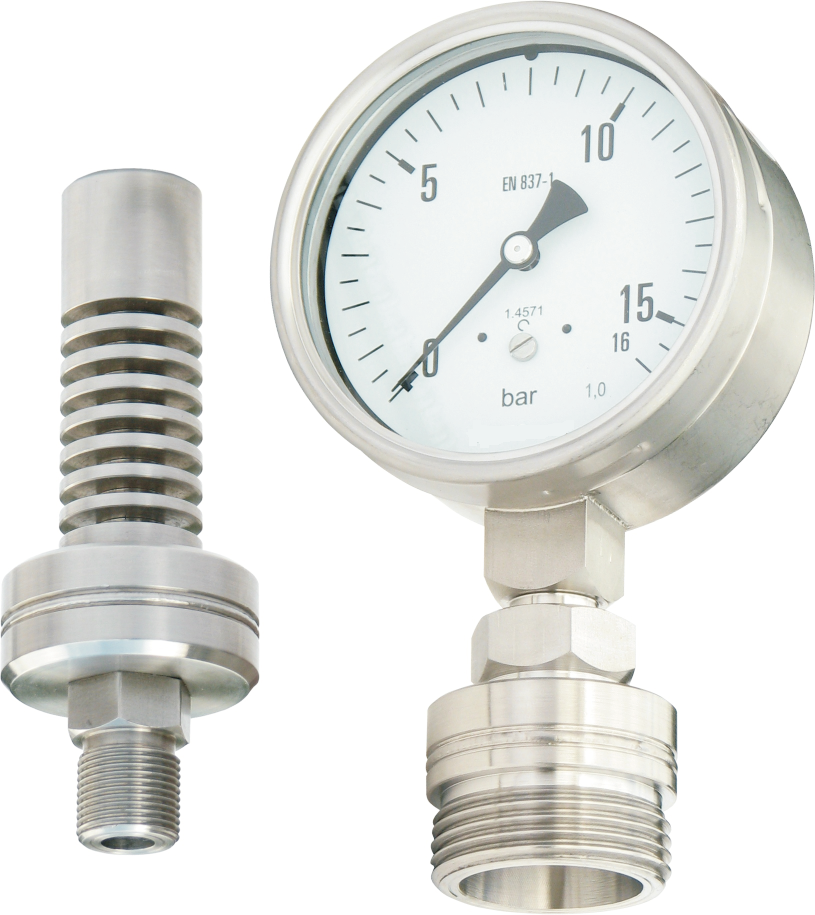

  • STW diaphragm seal  Ø50 with radiator and Ø50 with M48x3 process connection

Welding diaphragm seals are used to measure pressure in industrial applications for medium who has a high viscosity, chemical agressive or crystallizing.

The inside membrane suitable for low pressure ranges.

  1. Features
  2. Specification
  3. Downloads
  • STW diaphragm seals with internal membrane are mostly used in the chemical and petrochemical industry for media: chemically aggressive, crystallizing and viscous - eg. Fuel oil.

    Application
    • Chemical industry
    • petrochemical industry

    Features

    • Internal diaphragm
    • Welded construction
    • The diameter of the diaphragm is greater than the nominal diameter
    • Threaded connection
    • A wide choice of connections for measuring instrument
    • A wide range of materials for measuring diaphragm
    • Several types of steel for the body
    • The applicability of the reinforcing capillary made of stainless steel
    • The applicability of the heatsink
    • Several types of filling liquid measuring system
    • Low price
    • Variable pressure
    • Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, M20x1.5 male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 1-1/2 NPT male, 2 NPT male, 1/8 NPT female, 1/4 NPT female, 1/2 NPT female, other
    • Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium
  • `
    1. MERCON STW Karta katalogowa

      213kb | POL

    2. MERCON STW Datasheet

      201kb | ENG
